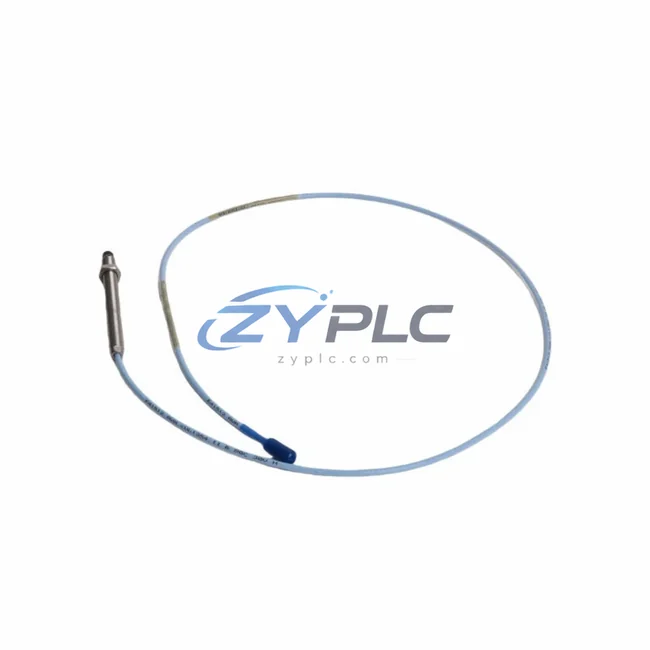

Bently Nevada 330104-00-22-10-01-CN 3300 Proximity Transducer

Bently Nevada 330104-00-22-10-01-CN 3300 Proximity Transducer: Replacement and Sourcing Information

The Bently Nevada 330104-00-22-10-01-CN is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact shaft displacement measurement with exceptional signal fidelity. In modern industrial facilities where energy efficiency and equipment uptime are paramount, this transducer serves as a critical sensing node within the machine protection and condition monitoring architecture. By providing real-time radial vibration and position data directly from rotating machinery, the 330104-00-22-10-01-CN enables plant engineers to make data-driven decisions that reduce unnecessary energy consumption, prevent catastrophic failures, and optimize the overall production rhythm.

Unlike conventional measurement approaches that rely on periodic manual inspection, the 330104-00-22-10-01-CN operates continuously within the machine’s operating envelope, feeding live displacement signals to the monitoring system. This persistent data stream allows the control platform to detect early-stage mechanical anomalies — such as rotor imbalance, misalignment, or bearing wear — long before they escalate into unplanned downtime events. The result is a measurable reduction in reactive maintenance costs and a significant improvement in equipment utilization rates across compressors, turbines, pumps, and motor-driven systems.

Product Specification Table

System Compatibility and Application

The 330104-00-22-10-01-CN is designed to integrate seamlessly into a layered industrial automation architecture where energy awareness begins at the sensing layer and propagates through every control and drive tier. At the field level, this transducer pairs with the Bently Nevada 3300 XL 8-mm Extension Cable and the 3300 XL Proximitor Sensor to form a complete eddy-current measurement chain. The analog output signal — a DC voltage proportional to shaft gap — is then routed to the Bently Nevada 3500/42M Proximitor I/O Module, which conditions and digitizes the signal for the protection rack.

Within the Bently Nevada 3500 Machinery Protection System, the digitized vibration data is processed against user-defined alert and danger thresholds. When vibration levels trend upward, the system can trigger output relays connected to the plant DCS or PLC — such as a Rockwell Automation ControlLogix L73 or a Siemens S7-1500 CPU — to initiate load shedding, speed reduction commands, or controlled shutdowns. This closed-loop response prevents the machine from operating in an inefficient, high-vibration state that consumes excess energy and accelerates component degradation.

On the drive side, the vibration feedback from the 330104-00-22-10-01-CN can inform the setpoint adjustments of a Danfoss FC-302 Variable Frequency Drive or an ABB ACS880 Industrial Drive, enabling dynamic motor speed optimization based on actual mechanical load conditions rather than fixed schedules. This approach eliminates the energy penalty of running motors at full speed during low-demand periods, directly reducing kWh consumption per production cycle.

For power quality monitoring, the transducer data complements readings from a Schneider Electric PowerLogic ION7650 Power Meter, which tracks real-time energy consumption at the motor control center level. Together, these instruments provide a comprehensive picture of both mechanical and electrical efficiency, enabling the maintenance planning team to correlate vibration anomalies with power factor degradation or harmonic distortion events.

Communication between the 3500 rack and the plant historian or SCADA platform is handled via Bently Nevada TDXnet or standard Modbus TCP/IP, ensuring that the 330104-00-22-10-01-CN’s measurement data is available to higher-level analytics platforms such as Bently Nevada System 1 Condition Monitoring Software. This software aggregates multi-channel vibration, position, and process data to generate trend reports, spectral analyses, and predictive maintenance recommendations — all of which contribute to a more energy-conscious and operationally efficient plant.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical refinery, LNG facility, or power generation station — rotating machinery accounts for the majority of electrical energy consumption. Compressor trains, boiler feed pumps, and steam turbines operate around the clock, and even marginal inefficiencies in their mechanical condition translate into significant unplanned downtime over time. The Bently Nevada 330104-00-22-10-01-CN addresses this challenge by providing the high-resolution shaft displacement data needed to detect and correct these inefficiencies before they compound.

Consider a scenario where a centrifugal compressor begins to develop a rotor imbalance condition. Without continuous vibration monitoring, the imbalance may go undetected for weeks, during which the machine draws progressively more current to maintain the same throughput — a direct energy penalty. With the 330104-00-22-10-01-CN installed and connected to the 3500 protection rack, the onset of imbalance is detected within the first measurement cycle. Maintenance can be scheduled during a planned outage window, the rotor can be rebalanced, and the machine returns to its design efficiency point — eliminating the unplanned downtime associated with degraded mechanical condition.

Similarly, in motor-driven pump applications, the transducer’s shaft position data can reveal misalignment between the motor and pump coupling. Misalignment increases bearing loads, elevates vibration levels, and forces the motor to work harder — all of which increase energy consumption. By identifying misalignment early, the 330104-00-22-10-01-CN enables corrective action that restores the system to its optimal operating point, reducing both energy draw and maintenance frequency.

From a production rhythm perspective, the ability to predict and prevent unplanned shutdowns directly improves line availability. Every unplanned stop not only halts production but also requires energy-intensive restart sequences — purging, pressurization, and ramp-up cycles that consume disproportionate amounts of energy relative to steady-state operation. By keeping machines running within their healthy vibration envelope, the 330104-00-22-10-01-CN helps maintain a consistent production cadence that minimizes these energy-intensive transient events.

All units are sourced from verified supply channels, undergo functional output testing prior to shipment, and are covered by a warranty terms confirmed during quotation. RFQ-confirmed availability supports rapid deployment to minimize equipment downtime and restore energy-efficient operation as quickly as possible.

Product Sourcing FAQ

Q1: How does the 330104-00-22-10-01-CN contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical faults — such as imbalance, misalignment, and bearing wear — that cause machines to draw excess current. Correcting these faults promptly restores the machine to its design efficiency point, reducing kWh consumption per unit of output. When integrated with a variable frequency drive, the vibration data can also inform dynamic speed adjustments that eliminate unnecessary energy use during low-load periods.

Q2: Is the 330104-00-22-10-01-CN compatible with existing Bently Nevada 3300 and 3500 system infrastructure?
Yes. The 330104-00-22-10-01-CN is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor ecosystem and integrates directly with the 3500 Machinery Protection System I/O modules. It is also compatible with Bently Nevada System 1 software for condition monitoring and trend analysis. For installations using third-party DCS or PLC platforms, the 3500 rack’s relay and analog outputs provide standard interface signals.

Q3: What is the recommended replacement or upgrade path if the existing proximity transducer is degraded?
If the existing transducer shows signal drift, reduced sensitivity, or physical damage, the 330104-00-22-10-01-CN is a direct replacement for compatible 3300 Series installations. Prior to replacement, verify the extension cable length and Proximitor model to ensure the complete measurement chain remains within calibrated specifications. Our technical team can assist with system compatibility verification before shipment.

Q4: What testing and warranty coverage is provided with each unit?
Every 330104-00-22-10-01-CN unit undergoes functional output testing — including scale factor verification and signal linearity checks — before shipment. Each unit is covered by a warranty terms confirmed during quotation against manufacturing defects and performance deviations. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize equipment downtime and support rapid restoration of energy-efficient machine operation.
