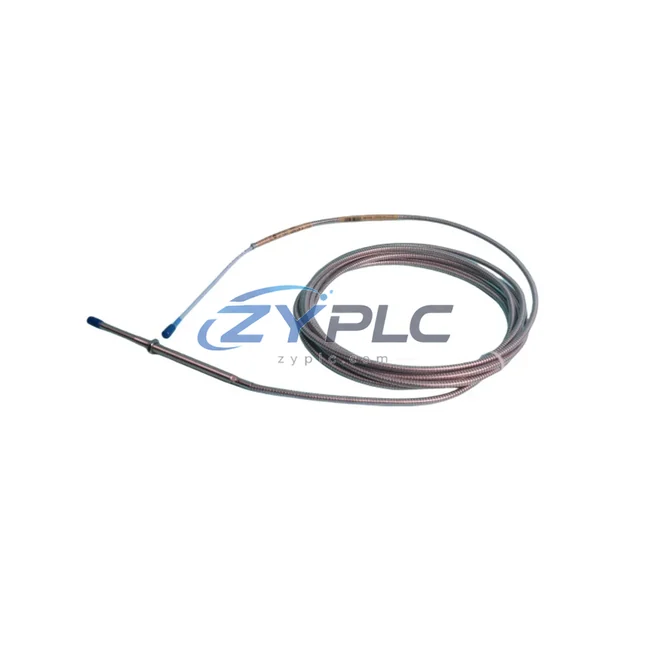

Bently Nevada 330104-00-24-50-02-00 Proximity Transducer

Bently Nevada 330104-00-24-50-02-00 Proximity Transducer for 3300 Series Automation

The Bently Nevada 330104-00-24-50-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are mission-critical, this transducer plays a pivotal role in capturing real-time shaft displacement data that drives smarter motor control, reduces unnecessary energy consumption, and extends the operational life of rotating machinery. By delivering continuous, non-contact position and vibration feedback, the 330104-00-24-50-02-00 enables plant engineers to move from reactive maintenance to predictive, data-driven asset management — directly reducing both unplanned downtime and unplanned downtime costs.

Designed for demanding environments including turbines, compressors, pumps, and high-speed motors, this transducer integrates seamlessly into the Bently Nevada 3300 Series ecosystem. Its 24-inch (approximately 600 mm) extension cable configuration and 5-meter (02-00) armored cable assembly make it suitable for installations where sensor-to-monitor distances require precise signal integrity over longer runs. The transducer operates within the standard Bently Nevada -24 VDC bias voltage range, ensuring compatibility with the 3300 XL 8mm Proximity Transducer System and associated signal conditioning modules.

Product Specification Table

System Compatibility and Application

The 330104-00-24-50-02-00 does not operate in isolation — it is a critical sensing node within a broader industrial automation system. In a typical high-efficiency plant configuration, this proximity transducer feeds shaft vibration and displacement data into the Bently Nevada 3500/42M Proximitor I/O Module, which conditions and transmits the signal to the 3500 Series Rack-Based Monitoring System. The rack system aggregates data from multiple measurement points, enabling the plant’s control layer to make real-time decisions about motor load, speed, and operational thresholds.

On the drive side, variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 receive setpoint adjustments based on vibration feedback, allowing motor speed to be modulated precisely to match actual process demand rather than running at fixed full-load — a primary source of industrial unplanned downtime. When the 330104-00-24-50-02-00 detects shaft displacement trending toward alarm thresholds, the control system can instruct the VFD to reduce speed or initiate a controlled ramp-down, preventing both mechanical damage and the energy surge associated with emergency stops and restarts.

At the PLC level, a Siemens S7-1500 or Allen-Bradley ControlLogix processes the conditioned vibration signals alongside process variables from Endress+Hauser flow transmitters and Yokogawa pressure sensors. This multi-source data fusion allows the PLC to optimize production line tempo (takt time) dynamically — slowing non-critical equipment during low-demand periods and accelerating throughput when conditions are optimal, all while keeping energy consumption within defined efficiency bands.

For power quality monitoring, the Bently Nevada 3500 system can be integrated with Schneider Electric PowerLogic ION meters or ABB M2M power analyzers, providing a complete picture of energy draw across the motor-drive-transducer chain. This integration supports ISO 50001 maintenance planning compliance and enables granular reporting on per-machine energy consumption — data that is increasingly required for carbon footprint audits and industrial sustainability certifications.

Communication between the 3300/3500 monitoring platform and the plant’s SCADA or DCS layer is typically handled via Modbus TCP/IP or OPC-UA, with the Bently Nevada 3500/92 Communication Gateway serving as the protocol bridge. This ensures that vibration data from the 330104-00-24-50-02-00 is available in real time to operators at HMI stations running Wonderware InTouch or Rockwell FactoryTalk View, enabling immediate response to developing faults without requiring physical inspection of the machinery.

I/O expansion for multi-machine monitoring is supported through the Bently Nevada 3500/20 Rack Interface Module, which allows a single monitoring rack to supervise up to 16 measurement channels simultaneously. In large compressor trains or turbine halls where dozens of proximity transducers are deployed, this architecture dramatically reduces the cabling and infrastructure cost compared to standalone monitoring solutions, while also centralizing energy data for plant-wide optimization.

Maintenance and Replacement Notes

In real production environments, the value of the Bently Nevada 330104-00-24-50-02-00 is measured not just in vibration data points, but in tangible reductions in energy cost, maintenance expenditure, and production loss. Consider a petrochemical plant operating a multi-stage centrifugal compressor train: without continuous shaft monitoring, the compressor must be operated conservatively — at reduced speed or with frequent manual inspections — to avoid catastrophic bearing failure. This conservative operation translates directly into energy inefficiency, as the compressor consumes more power per unit of throughput than a well-monitored machine running at its optimal operating point.

With the 330104-00-24-50-02-00 installed and integrated into the 3500 Series monitoring rack, the plant can operate the compressor at its true efficiency peak. Shaft displacement data is continuously compared against baseline profiles stored in Bently Nevada System 1 software, and any deviation — indicating developing imbalance, misalignment, or bearing wear — triggers an alert before it becomes a fault. Maintenance teams can schedule corrective action during planned downtime windows rather than responding to emergency failures, eliminating the energy-intensive restart cycles that follow unplanned stops.

On the production line tempo side, proximity transducers like the 330104-00-24-50-02-00 contribute to takt time optimization by providing the feedback loop that allows VFDs to modulate motor speed in response to actual mechanical condition rather than fixed schedules. A motor running at 85% of rated speed when process demand allows consumes approximately 61% of the energy of a motor running at full speed (following the affinity laws for centrifugal loads). Across a facility with dozens of monitored motors, this speed optimization — enabled by reliable vibration feedback — can represent a significant reduction in the monthly electricity bill.

Predictive maintenance enabled by this transducer also reduces the inventory burden of spare parts. When bearing degradation is detected early, maintenance teams can order replacement components on a planned basis rather than maintaining large emergency stock buffers. This lean inventory approach reduces capital tied up in spare parts while ensuring that the right components are available when needed — supporting both financial efficiency and operational resilience.

Every unit of the 330104-00-24-50-02-00 supplied by ZYPLC undergoes full functional testing prior to shipment, including bias voltage verification, sensitivity calibration check, and cable continuity testing. This pre-shipment testing protocol ensures that the transducer performs to Bently Nevada factory specifications from the moment it is installed, eliminating the risk of commissioning delays caused by out-of-spec components. A warranty terms confirmed during quotation covers all units against manufacturing defects and performance deviations, providing procurement teams with the confidence to specify ZYPLC-sourced components in critical monitoring applications.

Product Sourcing FAQ

Q1: How does the 330104-00-24-50-02-00 contribute to measurable operational stability in a motor-driven system?
By providing continuous, high-resolution shaft displacement data, this transducer enables VFDs and control systems to operate motors at their true efficiency optimum rather than at conservative fixed setpoints. Early detection of mechanical faults prevents the energy spikes associated with degraded bearings and misalignment, and allows speed optimization strategies (such as affinity-law-based VFD control) to be applied safely and confidently.

Q2: Is the 330104-00-24-50-02-00 compatible with both the 3300 and 3500 Series Bently Nevada monitoring systems?
Yes. The 330104-00-24-50-02-00 is designed for the 3300 XL 8mm Proximity Transducer System and is fully compatible with 3500 Series rack monitors when used with the appropriate Proximitor I/O module (such as the 3500/42M). It also integrates with legacy 3300 Series monitors, making it suitable for both new installations and system upgrades.

Q3: What is the recommended replacement or upgrade path if the existing proximity transducer is out of specification?
If an existing 3300 Series transducer is found to be out of calibration or physically damaged, the 330104-00-24-50-02-00 is a direct replacement for installations with matching cable length and connector configuration. ZYPLC recommends verifying the extension cable length (24 inches) and armored cable length (5 meters / 02-00 designation) against the existing installation before ordering. For systems requiring different cable configurations, alternative SKUs within the 330104 family are available.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each 330104-00-24-50-02-00 unit supplied by ZYPLC undergoes pre-shipment functional testing including bias voltage output verification, sensitivity check against Bently Nevada specifications, and full cable continuity and insulation testing. The warranty terms confirmed during quotation covers defects in materials and workmanship, as well as performance deviations from published Bently Nevada specifications under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team at plc.sales@zyplc.com.
