Bently Nevada 330104-05-10-05-02-CN 3300 Proximity Transducer

Bently Nevada 330104-05-10-05-02-CN 3300 Proximity Transducer: Precision Vibration Control for Energy-Efficient Automation

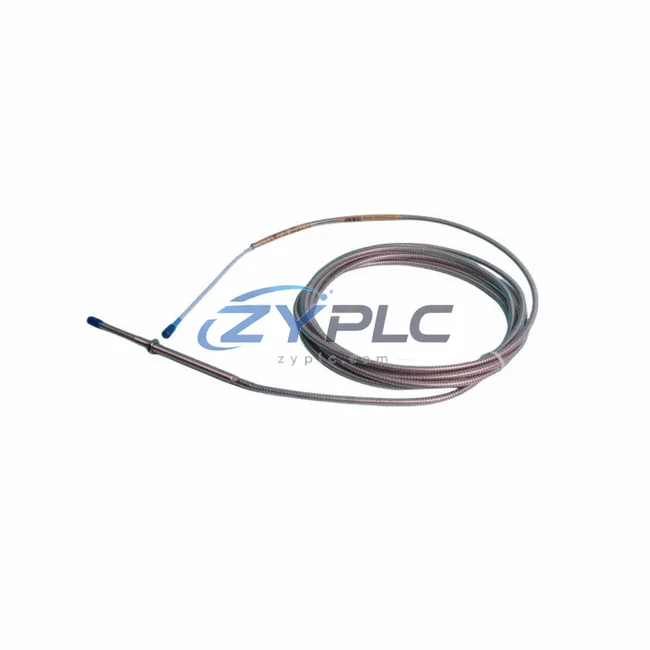

The Bently Nevada 330104-05-10-05-02-CN is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered for continuous, non-contact vibration and position measurement in rotating machinery environments. In modern industrial facilities where energy efficiency and equipment uptime are mission-critical, this transducer serves as the foundational sensing element that enables real-time shaft displacement monitoring, helping plant engineers detect mechanical anomalies before they escalate into costly failures or unplanned shutdowns.

By delivering precise radial and axial shaft position data to the control system, the 330104-05-10-05-02-CN allows operators to maintain optimal rotor clearances, reduce bearing wear, and extend mean time between maintenance intervals — all of which directly translate into lower operating load per unit of output and improved overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The 330104-05-10-05-02-CN does not operate in isolation — it is the sensing front-end of a tightly integrated condition monitoring and maintenance planning architecture. In a typical turbomachinery protection system, this transducer is paired with the Bently Nevada 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack. The signal is then fed into a Bently Nevada 3500/42M Proximitor I/O Module, which processes shaft vibration, eccentricity, and position data in real time.

At the supervisory level, Bently Nevada System 1 Condition Monitoring Software aggregates data from multiple transducer channels, enabling plant-wide energy and health dashboards. When integrated with a GE Fanuc 90-30 PLC or a Rockwell Automation ControlLogix L7x controller via Modbus TCP or OPC-UA, the vibration data can trigger automated load-shedding routines — reducing motor drive output during low-efficiency operating windows and preventing unplanned downtime during mechanical resonance events.

On the drive side, a Siemens SINAMICS G120 variable frequency drive or an ABB ACS880 industrial drive can receive speed-reduction commands derived from the transducer’s shaft displacement readings, dynamically adjusting motor RPM to maintain the machinery within its optimal efficiency band. This closed-loop interaction between the proximity transducer, the monitoring system, and the drive layer is the cornerstone of maintenance-focused motor control in rotating equipment applications.

For facilities running distributed I/O architectures, the 330104-05-10-05-02-CN integrates seamlessly with Bently Nevada 3500 Series I/O rack modules and communicates upstream to Emerson DeltaV DCS or Honeywell Experion PKS platforms, enabling centralized energy performance tracking across multiple machine trains simultaneously.

Maintenance and Replacement Notes

In a petrochemical plant running a multi-stage centrifugal compressor train, the 330104-05-10-05-02-CN continuously monitors shaft radial displacement at the compressor’s drive-end and non-drive-end bearing positions. When shaft vibration amplitude trends upward — indicating developing imbalance, misalignment, or bearing degradation — the System 1 platform issues an early warning alert, allowing maintenance teams to schedule corrective action during a planned production window rather than responding to an emergency trip.

This predictive intervention model has a direct impact on energy efficiency: a compressor operating with degraded bearings or rotor imbalance consumes significantly more electrical energy per unit of compressed gas than one running within design tolerances. By catching these deviations early, the 330104-05-10-05-02-CN helps reduce the compressor’s specific operating load (kWh per Nm³) and extends the interval between overhauls — lowering both energy costs and maintenance expenditure simultaneously.

In power generation applications, the same transducer monitors steam turbine shaft position to ensure rotor-to-stator clearances remain within design limits. Excessive clearance caused by thermal expansion or bearing wear reduces turbine isentropic efficiency, increasing fuel consumption per MWh of output. The proximity transducer’s continuous feedback loop allows operators to make real-time adjustments to steam admission valves and load dispatch, keeping the turbine operating at peak thermal efficiency.

For production lines with high-speed gearboxes or motor-driven pumps, the 330104-05-10-05-02-CN’s non-contact measurement principle eliminates sensor-induced friction losses and ensures zero interference with the rotating element — preserving the mechanical efficiency of the drivetrain while delivering the vibration data needed to optimize production line cycle times and reduce idle-running unplanned downtime.

All units supplied by ZYPLC undergo outgoing inspection and functional testing prior to shipment, ensuring that the transducer’s sensitivity, linearity, and output impedance meet OEM specifications. This pre-shipment verification process reduces the risk of field installation failures and ensures that the maintenance planning benefits described above are realized from day one of deployment.

Product Sourcing FAQ

Q1: How does the 330104-05-10-05-02-CN contribute to operational stability in rotating machinery?
By providing continuous, high-resolution shaft displacement data, this transducer enables condition-based maintenance strategies that keep rotating equipment operating within its optimal efficiency envelope. Early detection of imbalance, misalignment, or bearing wear prevents the elevated operating load associated with mechanically degraded machinery, reducing overall plant energy intensity.

Q2: Is the 330104-05-10-05-02-CN compatible with third-party monitoring systems beyond the Bently Nevada 3500 rack?
The transducer outputs a standard voltage signal (-24 VDC excitation, voltage output proportional to gap) that is compatible with most industrial vibration monitoring systems capable of accepting eddy-current proximitor inputs. Integration with Emerson, Honeywell, ABB, and Siemens DCS/PLC platforms is achievable via appropriate signal conditioning modules or I/O cards.

Q3: What is the recommended replacement interval, and how should I evaluate whether a replacement is needed?
Bently Nevada proximity transducers are designed for long service life in continuous-duty applications. Replacement is typically indicated by calibration drift (sensitivity deviation >±1%), physical cable damage, or connector corrosion. ZYPLC recommends performing a gap voltage verification test during each scheduled maintenance outage to confirm transducer health before returning the machine to service.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
