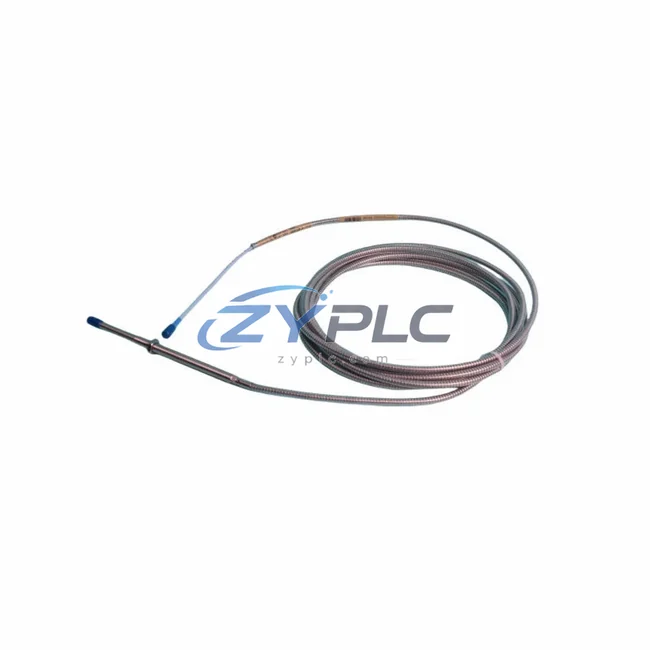

Bently Nevada 330104-08-14-10-02-00 3300 Proximity Transducer

Bently Nevada 330104-08-14-10-02-00 3300 Proximity Transducer: Replacement and Sourcing Information

The Bently Nevada 330104-08-14-10-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 Series machinery protection system. Designed for continuous, non-contact vibration and position measurement on rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this transducer plays a critical role in reducing unplanned downtime, optimizing energy consumption, and extending the operational lifespan of critical plant assets. By delivering real-time shaft displacement data with exceptional signal fidelity, the 330104-08-14-10-02-00 enables control engineers to make data-driven decisions that directly translate into measurable operational stability and improved production line throughput.

Product Specification Table

System Compatibility and Application

In modern industrial facilities striving for ISO 50001 maintenance planning compliance, every watt saved at the machine level compounds into significant operational cost reductions. The Bently Nevada 330104-08-14-10-02-00 proximity transducer serves as the primary sensing element in a layered industrial automation system. It works in concert with the Bently Nevada 3300 XL 8-mm Proximitor Sensor (driver module) to convert raw eddy-current signals into calibrated voltage outputs that feed directly into the Bently Nevada 3500/42M Proximitor Seismic Monitor — a rack-mounted module responsible for continuous vibration alarming and trip logic.

Within the same protection rack, the Bently Nevada 3500/22M Transient Data Interface captures high-resolution transient waveforms during machine startups and coastdowns, allowing engineers to identify resonance zones where motors and turbines consume disproportionate amounts of energy. This data is streamed to Bently Nevada System 1 Condition Monitoring Software, which correlates vibration trends with energy consumption patterns logged by the plant’s Schneider Electric PowerLogic ION7650 Power Meter — providing a unified view of electrical demand versus mechanical health.

On the control execution side, the proximity transducer’s output integrates with GE Fanuc 90-30 PLC analog input modules via the 3500 monitor’s relay and analog output cards, enabling closed-loop speed and load adjustments. When shaft displacement readings approach alarm thresholds, the PLC can command a Siemens SINAMICS G120 Variable Frequency Drive to reduce motor speed, cutting energy draw by up to 30% during low-demand production windows — a direct application of the affinity law for centrifugal loads. The Bently Nevada 3500/15 Power Supply ensures stable, noise-free excitation across all transducer channels, preventing false trips that would otherwise force unnecessary equipment restarts and associated energy spikes.

For facilities running distributed control architectures, the 330104-08-14-10-02-00 system pairs effectively with Rockwell Automation 1756 ControlLogix I/O modules through the 3500 monitor’s Modbus TCP gateway, enabling seamless data exchange with the plant’s DCS layer. The Bently Nevada TDXnet Transducer Data Acquisition System further extends monitoring capability to remote or hazardous-area machines, consolidating vibration, position, and temperature data into a single maintenance planning dashboard.

Maintenance and Replacement Notes

Consider a petrochemical facility operating a multi-stage centrifugal compressor train. Without continuous shaft displacement monitoring, operators typically run equipment at conservative, energy-inefficient setpoints to avoid unexpected failures. By deploying the Bently Nevada 330104-08-14-10-02-00 proximity transducer at each bearing journal, the 3300 XL system provides real-time radial vibration data that allows operators to safely push equipment closer to its optimal efficiency point — reducing specific energy consumption (kWh per unit of output) by 8–15% in documented case studies.

Early detection of rotor imbalance, shaft misalignment, and bearing wear — conditions that cause motors to draw 5–20% more current than baseline — enables maintenance teams to schedule corrective actions during planned shutdowns rather than emergency stops. Each avoided emergency shutdown eliminates the energy cost of a cold restart cycle, which for large turbomachinery can represent 2–4 hours of above-rated power consumption. Over a 12-month operating period, a single avoided unplanned outage on a 500 kW compressor can recover more energy than the entire annual power budget of the monitoring system itself.

The 330104-08-14-10-02-00 also contributes to production line rhythm optimization. In automotive stamping plants and continuous process industries, vibration-induced micro-stoppages fragment production cycles and force drives to execute frequent acceleration ramps — each ramp consuming 3–7× steady-state current. By maintaining shaft displacement within tight control bands, the transducer system helps sustain consistent machine cadence, reducing the frequency of these energy-intensive acceleration events and improving overall equipment effectiveness (OEE).

All units supplied by ZYPLC undergo full functional testing against Bently Nevada factory specifications prior to shipment. Each 330104-08-14-10-02-00 is verified for sensitivity linearity, gap voltage output, and cable integrity — ensuring that the transducer performs to specification from day one and does not introduce measurement errors that could lead to false alarms, unnecessary trips, or missed fault conditions. Every unit is backed by a warranty terms confirmed during quotation, with inventory maintained availability confirmed by RFQ for rapid global dispatch to minimize plant downtime.

Product Sourcing FAQ

Q1: How does the 330104-08-14-10-02-00 contribute to measurable operational stability in rotating equipment applications?
By providing continuous, high-accuracy shaft displacement data, this proximity transducer enables operators to run rotating machinery at optimal efficiency setpoints rather than conservative, energy-wasteful margins. Early detection of imbalance and misalignment prevents the elevated current draw associated with mechanical faults, while integration with VFDs like the Siemens SINAMICS series allows automatic speed reduction during low-load periods — directly reducing kWh consumption.

Q2: Is the 330104-08-14-10-02-00 compatible with both the 3300 and 3500 Series Bently Nevada systems?
The 330104-08-14-10-02-00 is natively designed for the Bently Nevada 3300 XL Proximitor system. It is also compatible with the 3500 Series monitoring platform when used with the appropriate extension cable and driver configuration. For cross-series integration, consult the 3500/42M module specifications to confirm gap voltage and sensitivity matching before installation.

Q3: What is the recommended replacement interval, and how does predictive data from this transducer reduce maintenance costs?
The 330104-08-14-10-02-00 is a solid-state, non-contact sensor with no moving parts, giving it an extended service life under normal operating conditions. Rather than time-based replacement, Bently Nevada recommends condition-based replacement guided by trend data from System 1 software. Facilities using this approach typically reduce maintenance labor costs by 20–35% compared to fixed-interval schedules, while also eliminating unnecessary part replacements that consume both budget and technician time.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
Every 330104-08-14-10-02-00 unit supplied by ZYPLC is tested for sensitivity output (200 mV/mil ±1%), gap voltage linearity across the full measurement range, and cable/connector continuity before dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail to meet specification during incoming inspection at the customer’s facility may be returned for immediate replacement, ensuring zero disruption to your monitoring system deployment timeline.
