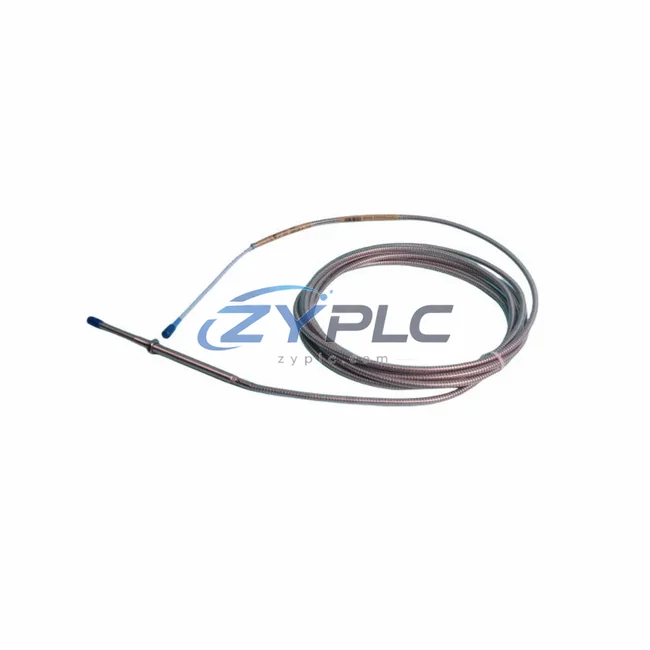

Bently Nevada 330104-09-15-10-02-00 3300 Proximity Transducer

Bently Nevada 330104-09-15-10-02-00 3300 Proximity Transducer: Efficiency Control & Production Line Optimization

The Bently Nevada 330104-09-15-10-02-00 is a high-precision eddy-current proximity transducer from the renowned 3300 Series, engineered specifically for continuous vibration and position monitoring in turbomachinery and rotating equipment. In modern industrial environments where energy efficiency and equipment uptime directly impact operational costs, this transducer plays a pivotal role in enabling real-time condition monitoring that prevents unplanned downtime, reduces unplanned downtime from misaligned or imbalanced rotating machinery, and supports predictive maintenance strategies that extend asset life cycles.

By delivering accurate shaft displacement data to control systems, the 330104-09-15-10-02-00 enables plant engineers to detect early-stage mechanical faults — such as rotor imbalance, shaft misalignment, and bearing wear — before they escalate into catastrophic failures. This proactive approach directly reduces the energy penalty associated with degraded mechanical efficiency, where even a 2–5% increase in vibration amplitude can translate into measurable increases in motor load and power consumption across compressors, turbines, and pumps.

Product Specification Table

System Compatibility and Application

The 330104-09-15-10-02-00 proximity transducer does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical turbomachinery protection system, the transducer feeds shaft displacement signals into the Bently Nevada 3300 XL 8-mm Proximitor Sensor (driver module), which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack. This signal is then processed by the Bently Nevada 3500/42M Proximitor/Seismic Monitor, a rack-mounted module that provides real-time vibration trending, alarm management, and relay outputs for trip logic.

At the control execution layer, the vibration data is transmitted via Modbus TCP or FOUNDATION Fieldbus protocols to the plant DCS or PLC — commonly a GE Automation & Controls PACSystems RX3i or an ABB AC800M Controller — where it is integrated into the broader maintenance planning loop. When vibration thresholds indicate mechanical degradation, the control system can automatically reduce the setpoint on the associated ABB ACS880 Variable Frequency Drive (VFD), lowering motor speed and power draw until maintenance can be scheduled, rather than allowing the machine to continue running at full load in a degraded state.

For facilities running Siemens SIMATIC S7-1500 PLC platforms, the 3300 Series monitoring data integrates cleanly through PROFIBUS DP or PROFINET IO gateways, enabling the PLC to coordinate motor speed adjustments via Siemens SINAMICS G120 drives in response to real-time vibration feedback. This closed-loop approach — from proximity sensing through drive modulation — is the foundation of energy-efficient rotating equipment management.

On the HMI and SCADA layer, operators visualize shaft displacement trends through Bently Nevada System 1 Condition Monitoring Software, which aggregates data from multiple 3300 Series transducers across the plant. Complementary power quality data from Schneider Electric PowerLogic ION7650 Power Meters can be overlaid to correlate vibration events with energy consumption spikes, giving maintenance teams a complete picture of how mechanical health directly impacts electrical efficiency. I/O expansion modules such as the Bently Nevada 3500/20 Rack Interface Module ensure seamless data routing between the transducer network and the plant historian.

Maintenance and Replacement Notes

In a real production environment — whether a natural gas compression station, a refinery process train, or a power plant turbine hall — the Bently Nevada 330104-09-15-10-02-00 contributes to maintenance planning through several interconnected mechanisms.

Reducing Energy Waste from Mechanical Inefficiency: Rotating machinery operating with elevated vibration levels consumes more energy than mechanically sound equipment. A compressor with a rotor imbalance of just 50 µm peak-to-peak displacement may draw 3–8% more power than a balanced machine at the same throughput. By continuously monitoring shaft position with the 330104-09-15-10-02-00, plant engineers receive early warning of developing imbalance, enabling corrective balancing during scheduled maintenance windows rather than emergency shutdowns — preserving both energy efficiency and production continuity.

Optimizing Production Line Throughput: In multi-machine production lines, a single unmonitored rotating asset can become a bottleneck that forces upstream and downstream equipment to operate at suboptimal speeds or in standby modes — both of which waste energy. With continuous proximity monitoring, the control system can maintain optimal line pacing by detecting and responding to mechanical degradation before it affects throughput, keeping all assets operating within their most energy-efficient speed ranges.

Predictive Maintenance and Reduced Downtime Energy Costs: Unplanned shutdowns are among the most energy-intensive events in industrial operations — restart sequences for large turbines and compressors consume significant power and thermal energy. The 330104-09-15-10-02-00, as part of the 3300 Series monitoring ecosystem, enables condition-based maintenance scheduling that minimizes emergency restarts. Plants that transition from reactive to predictive maintenance typically report 10–25% reductions in maintenance-related energy consumption.

Inventory Availability & Shipment Readiness: This unit is RFQ Available, fully tested, and ready for shipment arranged after confirmation. Each unit undergoes pre-shipment functional verification to confirm signal linearity, sensitivity, and connector integrity — ensuring that replacement installations restore monitoring capability without commissioning delays. Backed by a warranty terms confirmed during quotation, the 330104-09-15-10-02-00 is a reliable, cost-effective solution for both OEM system builds and MRO replacement programs.

Product Sourcing FAQ

Q1: How does the 330104-09-15-10-02-00 contribute to operational stability in turbomachinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical faults such as rotor imbalance and misalignment. Correcting these conditions before they worsen prevents the additional motor load — and associated unplanned downtime — that degraded mechanical conditions impose. Integration with VFDs like the ABB ACS880 allows automatic speed reduction when vibration thresholds are approached, further reducing energy consumption during fault conditions.

Q2: Is the 330104-09-15-10-02-00 compatible with existing 3300 Series monitoring racks and System 1 software?
Yes. The 330104-09-15-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor driver modules and integrates directly with the 3500 Series monitoring racks. It is recognized by Bently Nevada System 1 software for trend analysis, alarm configuration, and historical data logging without requiring additional signal conditioning hardware.

Q3: What is the recommended replacement procedure, and how quickly can the unit be commissioned?
Replacement follows standard 3300 Series installation procedures: remove the existing probe, install the 330104-09-15-10-02-00 at the correct gap distance (typically 1.0–1.5 mm for standard 8 mm probes), verify the DC gap voltage at the driver output, and confirm signal response with a calibrated target. Most experienced technicians complete the swap in under 30 minutes. The unit ships pre-tested, eliminating the need for bench calibration before installation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
