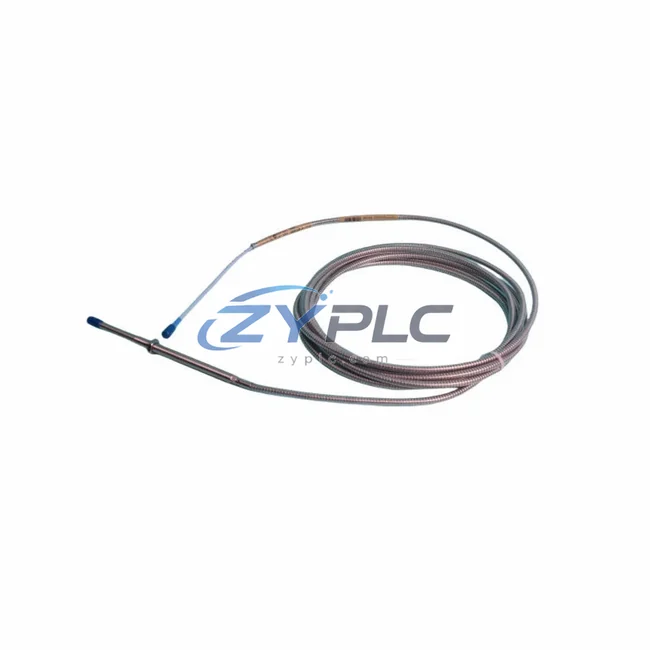

Bently Nevada 330104-12-22-10-02-00 Proximity Transducer System | 3300 Series

Bently Nevada 330104-12-22-10-02-00: Industrial Data Link for Rotating Machinery Monitoring Networks

The Bently Nevada 330104-12-22-10-02-00 is a high-precision proximity transducer system belonging to the renowned 3300 Series platform — one of the most trusted eddy-current sensing solutions deployed across rotating machinery protection networks worldwide. Designed for continuous, non-contact vibration and position measurement, this transducer system forms a critical node in the industrial data chain that connects field-level rotating assets to plant-wide SCADA, DCS, and condition monitoring platforms.

In modern smart factory environments, the integrity of machinery health data depends entirely on the quality of the signal chain — from the probe tip at the shaft surface, through the extension cable and proximitor driver, all the way to the machinery protection system and historian. The 330104-12-22-10-02-00 is engineered to deliver sub-micron resolution displacement signals with exceptional linearity, ensuring that every vibration event, shaft orbit deviation, or axial thrust change is captured accurately and transmitted without distortion into the plant’s monitoring infrastructure.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-12-22-10-02-00 proximity transducer system operates as the primary signal source in a layered industrial monitoring architecture. At the field level, the probe tip is mounted adjacent to the rotating shaft of critical assets — steam turbines, centrifugal compressors, boiler feed pumps, or large induction motors. The eddy-current field generated between the probe and the conductive shaft surface produces a continuous analog DC voltage proportional to the gap distance, capturing both static position and dynamic vibration in real time.

This raw analog signal is routed through a matched Bently Nevada 3300 XL 8mm Extension Cable to a 3300 Series Proximitor Driver (such as the 330180 or 330130 proximitor module), which conditions and buffers the signal before passing it to the Bently Nevada 3500 Machinery Protection System rack. Within the 3500 rack, dedicated monitor cards — including the 3500/42M Proximitor/Seismic Monitor or the 3500/46M Hydro Monitor — process the conditioned signal, apply alarm setpoints, and generate relay outputs for automatic machine trip or alert annunciation.

Upstream of the protection rack, the 3500 system communicates with plant-level infrastructure via its 3500/92 Communication Gateway module, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA/OPC-UA protocols. This enables seamless data handoff to GE System 1 Evolution condition monitoring software, where vibration trends, shaft orbit plots, Bode diagrams, and waterfall spectra are rendered for rotating equipment engineers. The same data stream can be simultaneously forwarded to a plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV — via 4–20 mA hardwired outputs or digital fieldbus, ensuring that the control room operator has real-time machinery health visibility alongside process variables.

For facilities implementing Industrial IoT and edge analytics, the analog output from the 3500 system can be digitized by an edge gateway (such as a Moxa MGate or Advantech ADAM series) and published to an MQTT broker or cloud historian, enabling remote diagnostics, predictive maintenance algorithms, and integration with MES/ERP platforms. This complete data flow — from the 330104-12-22-10-02-00 probe tip to the cloud analytics layer — exemplifies the connected machinery monitoring architecture that underpins Industry 4.0 rotating equipment management.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented machinery monitoring architectures — standalone vibration analyzers disconnected from the DCS, protection systems that generate alarms without feeding trend data to historians, and field sensors whose signals never reach the SCADA layer. The Bently Nevada 330104-12-22-10-02-00, when integrated within the full 3300/3500 ecosystem, directly addresses these data isolation challenges.

Protocol Unification: By pairing this transducer with the 3500/92 Communication Gateway, facilities can bridge the gap between proprietary Bently Nevada analog signals and open industrial protocols including Modbus TCP, OPC-UA, and PROFIBUS DP — eliminating the need for manual data transcription and enabling automated alarm forwarding to SCADA/HMI systems.

Production Line Transparency: Continuous vibration and position data from the 330104-12-22-10-02-00 feeds directly into System 1 software dashboards, giving maintenance engineers a real-time view of shaft centerline migration, bearing wear trends, and rotor dynamic behavior — transforming reactive maintenance into a data-driven predictive strategy.

Remote Monitoring and Diagnostics: With OPC-UA connectivity, vibration data can be securely transmitted to remote monitoring centers or cloud platforms, enabling off-site rotating equipment specialists to perform diagnostic reviews without physical site access — reducing travel costs and accelerating fault identification.

System Scalability: The 3300 Series architecture supports multi-channel expansion. Additional proximity transducer channels — covering X/Y radial vibration, keyphasor, and thrust position — can be added to the same 3500 rack without disrupting existing monitoring loops, supporting phased plant expansion and new machine additions.

Outgoing Inspection and Inventory Assurance: Every 330104-12-22-10-02-00 unit supplied by ZYPLC undergoes pre-shipment functional verification, including gap voltage linearity checks and output signal validation. Units are held in climate-controlled inventory and shipped via DHL or FedEx Express with full traceability documentation, backed by a warranty terms confirmed during quotation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330104-12-22-10-02-00 system support for SCADA integration?
The 330104-12-22-10-02-00 transducer outputs an analog DC voltage signal. When integrated with the Bently Nevada 3500 Machinery Protection System and the 3500/92 Communication Gateway module, the system supports Modbus RTU, Modbus TCP/IP, OPC-DA, and OPC-UA protocols, enabling direct integration with SCADA platforms, DCS historians, and condition monitoring software such as GE System 1.

Q2: Is the 330104-12-22-10-02-00 compatible with existing 3300 Series proximitor drivers and extension cables?
Yes. The 330104-12-22-10-02-00 is fully compatible with the Bently Nevada 3300 Series ecosystem, including 330180 and 330130 proximitor modules and standard 3300 XL 8mm extension cables. The system is designed for plug-and-play replacement within existing 3300 Series monitoring loops, minimizing installation time and configuration changes.

Q3: How does the system ensure network stability and data integrity in high-vibration industrial environments?
The eddy-current sensing principle used in the 330104-12-22-10-02-00 is inherently immune to electromagnetic interference from motor drives, high-voltage switchgear, and RF sources common in industrial plants. The analog signal chain is shielded throughout, and the 3500 system’s digital processing applies configurable filtering and alarm hysteresis to prevent spurious trips caused by electrical noise — ensuring stable, reliable data transmission even in electrically harsh environments.

Q4: What warranty and post-shipment support does ZYPLC provide for this unit?
ZYPLC provides a warranty terms confirmed during quotation on all Bently Nevada 330104-12-22-10-02-00 units. Each unit undergoes pre-shipment functional testing with documented results. Global express shipping via DHL or FedEx is available with typical lead times of 3–7 business days. For technical support, spare parts coordination, or system integration consultation, contact our team directly.
