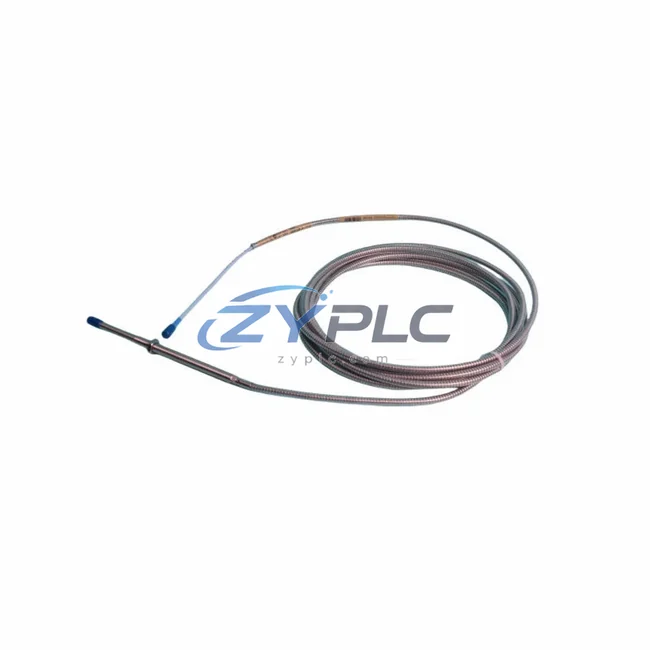

Bently Nevada 330104-15-22-50-02-00 Proximity Transducer

Bently Nevada 330104-15-22-50-02-00 Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

The Bently Nevada 330104-15-22-50-02-00 is a high-performance eddy-current proximity transducer engineered for the 3300 Series condition monitoring platform. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery, this transducer plays a critical role in reducing unplanned downtime risk across industrial production lines. By delivering real-time, high-resolution displacement data directly to the monitoring system, it enables plant engineers to detect mechanical inefficiencies before they escalate into costly failures — keeping motors, compressors, turbines, and pumps operating at their optimal energy efficiency point.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft behavior with micron-level accuracy translates directly into measurable power savings. The 330104-15-22-50-02-00 integrates seamlessly with the Bently Nevada 3300 XL 8mm Proximity Transducer System, providing a calibrated output signal that feeds into the 3500 Series Machinery Protection System for closed-loop condition assessment. When paired with the 3300 RAM Proximitor Sensor and the 3500/42M Proximitor I/O Module, the system forms a complete vibration acquisition chain capable of supporting both protection and performance optimization functions simultaneously.

Product Specification Table

System Compatibility and Application

The 330104-15-22-50-02-00 does not operate in isolation — its true maintenance planning value emerges when it is integrated into a layered industrial automation architecture. At the sensing layer, the transducer works in conjunction with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 Proximitor), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft target. This conditioned signal is then routed to the 3500/42M Proximitor I/O Module, which digitizes and transmits the data to the 3500 Rack for centralized processing.

Within the 3500 Rack, the 3500/20 Rack Interface Module manages communication between the machinery protection system and the plant’s distributed control system (DCS) or SCADA platform. For facilities running Modbus TCP or PROFIBUS DP protocols, the 3500/92 Communication Gateway Module enables seamless data exchange with third-party PLCs and maintenance planning systems. This integration allows the vibration data captured by the 330104-15-22-50-02-00 to be correlated with power consumption data from energy meters and variable frequency drives (VFDs), creating a unified view of machine health versus energy draw.

On the drive side, when the 3300 Series monitoring data indicates that a motor is operating under abnormal load conditions — such as those caused by shaft misalignment or bearing degradation — the control system can automatically adjust the setpoint of the associated VFD to reduce mechanical stress and lower current draw. This feedback loop between the proximity transducer, the 3500 protection rack, the DCS, and the drive system is the foundation of maintenance-focused automation. Additionally, the Bently Nevada System 1 Condition Monitoring Software aggregates historical vibration trends from multiple 330104-series transducers across the plant, enabling maintenance teams to schedule interventions during planned downtime rather than reacting to unplanned failures — a practice that directly reduces the energy penalty associated with emergency restarts and cold-start cycles.

For I/O integration, the 3500/40M Proximitor I/O Module and the 3500/45 Position Monitor complement the 330104-15-22-50-02-00 in multi-channel monitoring configurations, particularly in large turbine trains where axial position and differential expansion must be tracked simultaneously alongside radial vibration. The combination of these components within a single 3500 Rack provides a consolidated, low-power monitoring infrastructure that replaces multiple standalone instruments — reducing both panel space and auxiliary power consumption.

Maintenance and Replacement Notes

In a typical refinery or power generation facility, rotating machinery accounts for 60–70% of total electrical operating load. Even a 1–2% improvement in the operational efficiency of a large centrifugal compressor or steam turbine can translate into tens of thousands of dollars in annual operational stability. The Bently Nevada 330104-15-22-50-02-00 contributes to this efficiency target through several concrete mechanisms.

Early fault detection and unplanned downtime prevention: Shaft imbalance, misalignment, and bearing wear all cause a machine to draw more current than its design point requires. A misaligned pump shaft, for example, may consume 10–15% more power than a properly aligned one. By continuously monitoring shaft displacement with the 330104-15-22-50-02-00, maintenance teams receive early warning of developing faults — typically weeks or months before they would be detectable through temperature or current monitoring alone. This early intervention window allows corrective maintenance to be performed during scheduled shutdowns, avoiding the energy-intensive process of emergency stops, cool-downs, and restarts.

Production line rhythm optimization: In continuous process industries, unplanned stoppages disrupt the thermal and hydraulic equilibrium of the production line. Restarting a large compressor train from cold consumes significantly more energy than maintaining steady-state operation. The real-time vibration data from the 330104-15-22-50-02-00 supports a predictive maintenance strategy that keeps machines running longer between interventions, preserving line rhythm and reducing the frequency of energy-intensive restart cycles.

Reduced maintenance overhead: Because the 330104-15-22-50-02-00 is a non-contact sensor with no moving parts, it requires no lubrication, no mechanical adjustment, and no periodic replacement under normal operating conditions. This eliminates the maintenance labor and associated downtime that would be required for contact-type measurement devices. The warranty terms confirmed during quotation provided with every unit from ZYPLC reflects confidence in the product’s reliability and ensures that any performance deviation is addressed without additional cost to the end user.

Inventory supply and outgoing test: ZYPLC maintains ready stock of the 330104-15-22-50-02-00 to support urgent maintenance and capital project timelines. Every unit undergoes a functional outgoing inspection and test before shipment, verifying scale factor, linearity, and signal integrity against Bently Nevada factory specifications. This pre-shipment verification process ensures that the transducer performs to its rated efficiency parameters from the moment it is installed — eliminating the risk of commissioning delays caused by out-of-specification components.

Product Sourcing FAQ

Q1: How does the 330104-15-22-50-02-00 contribute to measurable operational stability in a plant environment?
The transducer enables continuous, real-time monitoring of shaft vibration and position, allowing operators to detect mechanical inefficiencies — such as imbalance, misalignment, and bearing wear — that cause machines to consume more power than their design point. By identifying and correcting these conditions early, plants can reduce excess operating load and avoid the high power demand associated with emergency shutdowns and restarts.

Q2: Is the 330104-15-22-50-02-00 compatible with existing 3500 Series protection racks and System 1 software?
Yes. The 330104-15-22-50-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly with the 3500 Series Machinery Protection System, including the 3500/42M and 3500/40M I/O modules. It is also supported by System 1 Condition Monitoring Software for trend analysis and predictive maintenance workflows.

Q3: Can this transducer replace an older 3300 Series proximity probe without recalibration of the entire monitoring loop?
In most cases, yes — provided the replacement unit shares the same scale factor (–200 mV/mil) and cable length configuration as the original. ZYPLC recommends verifying the Proximitor gap voltage and performing a static calibration check after installation to confirm that the new transducer is operating within the system’s configured alarm and danger setpoints.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from published Bently Nevada specifications. Before shipment, every 330104-15-22-50-02-00 unit at ZYPLC undergoes a functional outgoing inspection that includes signal output verification, scale factor measurement, and physical condition assessment. Units that do not meet specification are quarantined and not shipped. Warranty claims are processed directly through ZYPLC’s after-sales support team.
