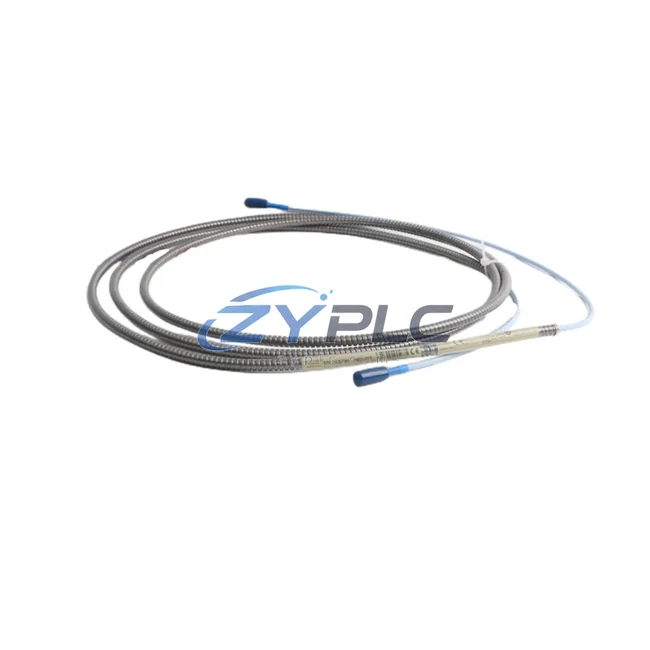

The Bently Nevada 330130-030-01-CN is a precision-engineered proximity extension cable designed to operate within the full signal chain of the Bently Nevada 3300 Series machinery protection and condition monitoring architecture. In industrial environments where rotating equipment reliability is mission-critical — from turbines and compressors to pumps and gearboxes — the integrity of the signal path between the proximity probe and the monitoring system is non-negotiable. This extension cable serves as the critical link that preserves signal fidelity from the field sensor to the rack-mounted monitor, ensuring that every vibration, position, and speed measurement reaches the control system without distortion, attenuation, or noise interference.

Within a layered automation architecture, the 330130-030-01-CN connects the field-mounted proximity probe — typically a Bently Nevada 3300 XL 8mm or 3300 XL 11mm eddy-current probe — to the proximitor/extension driver housed in the junction box or marshalling cabinet. The cable’s shielded construction and matched impedance characteristics are engineered to maintain the system’s calibrated sensitivity, ensuring that the Bently Nevada 3300 Series monitor modules receive clean, accurate analog signals for real-time vibration analysis, gap measurement, and shaft eccentricity detection.

At the control layer, the processed signals from the 3300 Series monitor cards — including the 3300/16 Dual Vibration Monitor and the 3300/20 Radial Vibration Monitor — are transmitted via 4–20 mA analog outputs or relay contacts to the plant DCS or safety instrumented system. The 330130-030-01-CN’s role in this architecture is foundational: without a properly matched extension cable, the entire signal chain from probe tip to control room display is compromised. Engineers specifying this cable as part of a new installation or a system retrofit can be confident that it meets Bently Nevada’s OEM electrical specifications for the 3300 Series platform.

System redundancy is a key design consideration in high-availability plants. When paired with dual-probe configurations supported by the Bently Nevada 3500 Series rack system — which shares probe and cable compatibility with the 3300 platform in many retrofit scenarios — the 330130-030-01-CN supports N+1 redundancy architectures where continuous monitoring is maintained even during partial system maintenance. The cable’s robust outer jacket and connector terminations are rated for the demanding thermal and chemical environments found in petrochemical, power generation, and heavy industrial facilities.

From an installation and commissioning perspective, the 330130-030-01-CN simplifies field wiring by providing a factory-terminated, length-specified cable assembly that eliminates on-site crimping errors. Maintenance engineers working within a Bently Nevada 3300 Series rack — which may include the 3300/55 Keyphasor Module, the 3300/46 Overspeed Detection Module, and the 3300/25 Thrust Position Monitor — can replace extension cables during scheduled outages with confidence, knowing that the OEM-specified cable will restore the system to its original calibrated state without requiring re-characterization of the probe/driver system.

In SCADA and HMI integration contexts, the accuracy of the vibration and position data delivered through this cable directly affects the quality of the trend data displayed on operator workstations running platforms such as Bently Nevada System 1 software. System 1 relies on clean, continuous analog inputs from the 3300 Series monitors to generate bearing condition trends, alarm histories, and predictive maintenance reports. A degraded or mismatched extension cable introduces baseline drift that can trigger nuisance alarms or, worse, mask genuine machinery faults — making the correct specification of the 330130-030-01-CN a matter of both operational efficiency and plant safety.

For facilities managing large rotating equipment fleets, maintaining a stock of 330130-030-01-CN extension cables as part of the critical spare parts inventory is a recognized best practice. Alongside spare Bently Nevada 330101-00-08-10-02-00 proximity probes, 330180-X1-05 proximitor sensors, and 3300/20 monitor modules, this cable ensures that the mean time to repair (MTTR) for vibration monitoring system faults is minimized. Unplanned downtime caused by a failed extension cable — a relatively low-cost component — can result in production losses that far exceed the cost of maintaining adequate spares inventory.

Product Specification Table

System Compatibility Notes

The 330130-030-01-CN operates as a precision signal conduit within a coordinated machinery protection architecture. At the field level, it connects to Bently Nevada 330101-00-08-10-02-00 proximity probes mounted on bearing housings, transmitting the raw eddy-current signal to the 330180-X1-05 proximitor sensor, which conditions and amplifies the signal before passing it to the rack-mounted monitor. Within the 3300 Series rack, the 3300/20 Radial Vibration Monitor and 3300/25 Thrust Position Monitor process these signals in real time, generating 4–20 mA analog outputs and relay alarm contacts that interface with the plant DCS or safety PLC.

The Keyphasor signal — provided by the 3300/55 Keyphasor Module — is synchronized with the radial vibration channels to enable phase-referenced vibration analysis, a capability that depends entirely on the signal integrity maintained by properly specified extension cables throughout the system. At the overspeed protection layer, the 3300/46 Overspeed Detection Module monitors shaft speed signals through a parallel probe and cable assembly, providing a hardware-independent trip channel that operates even if the primary vibration monitoring channels are under maintenance.

At the network and supervisory layer, Bently Nevada System 1 software aggregates all channel data from the 3300 Series rack via the rack’s communication interface, presenting operators with real-time vibration spectra, trend plots, and alarm dashboards. The data quality feeding System 1 is directly dependent on the signal chain integrity maintained by components including the 330130-030-01-CN extension cable. In facilities where the 3300 Series rack is integrated with a Bently Nevada 3500 Series system for expanded channel capacity, the cable specifications remain consistent, simplifying spare parts management across both platforms.

Industrial Application Notes

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 330130-030-01-CN is deployed as part of the API 670-compliant machinery protection system required for turbine-generator sets. The cable’s shielded construction is essential in these environments, where high-voltage electrical interference from generator windings and bus bars can corrupt proximity signals if inadequate shielding is used.

In petrochemical and refinery applications, the extension cable is routed through conduit or cable trays from the bearing housing to the junction box, where it connects to the proximitor sensor. The cable’s chemical-resistant outer jacket is suited for environments where hydrocarbon vapors, cleaning solvents, and process fluids may be present. In compressor trains — where axial thrust and radial vibration monitoring are both required — multiple 330130-030-01-CN cables are deployed in parallel, one per probe channel, to provide complete bearing coverage across all monitored planes.

In water treatment and pumping stations, the 3300 Series system with 330130-030-01-CN extension cables provides continuous vibration monitoring for large vertical turbine pumps and horizontal centrifugal pumps, enabling condition-based maintenance programs that reduce unplanned outages. In mining and minerals processing, where crusher drives, mill pinion bearings, and conveyor head pulleys are subject to high dynamic loads, the robustness of the OEM-specified extension cable ensures reliable signal transmission in high-vibration, high-dust environments.

Product Compatibility FAQ

Q1: Is the 330130-030-01-CN compatible with both the 3300 Series and 3500 Series Bently Nevada systems?
The 330130-030-01-CN is specified for the 3300 Series platform. In many retrofit and expansion projects, the cable’s electrical characteristics are compatible with 3500 Series probe inputs when used with the appropriate proximitor model. Engineers should verify the specific probe/driver/cable system characterization requirements for the target 3500 Series monitor module before substituting cables across platforms. Our technical team can assist with compatibility verification prior to order placement.

Q2: How does cable length affect system calibration, and what length does the 330130-030-01-CN provide?
In Bently Nevada eddy-current probe systems, the total system — probe, extension cable, and proximitor — must be characterized as a matched set. The “030” in the part number 330130-030-01-CN denotes a 30-foot (approximately 9-meter) extension cable length. Changing cable length without re-characterizing the system will shift the gap voltage curve and introduce measurement error. Always replace extension cables with the identical part number to maintain system calibration and avoid nuisance alarms or missed fault detection.

Q3: What warranty and pre-shipment testing does the 330130-030-01-CN carry?
Every 330130-030-01-CN supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing before shipment to verify connector integrity, cable continuity, and shielding effectiveness. We maintain RFQ-confirmed sourcing of this and related 3300 Series components — including proximity probes, proximitor sensors, and monitor modules — to support urgent maintenance requirements with fast global delivery. For volume orders or system-level spare parts packages, contact our team at plc.sales@zyplc.com or +86 19859288691.
