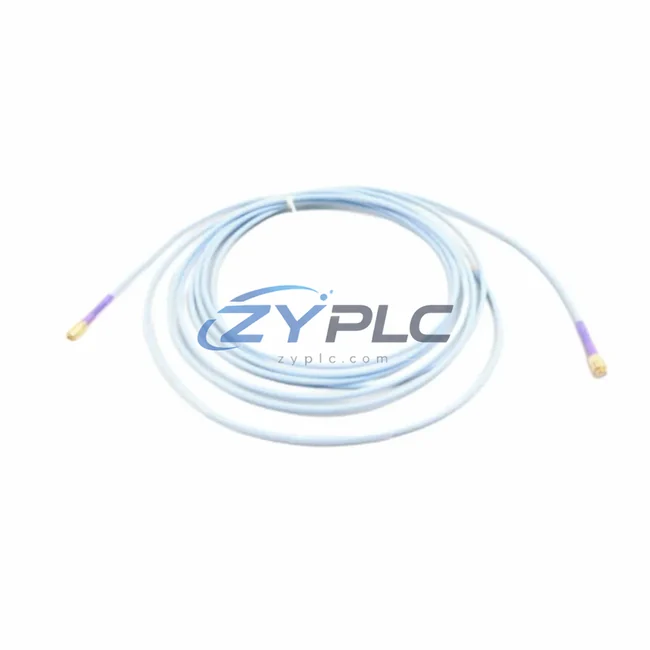

Bently Nevada 330130-040-00-00 Extension Cable for 3300 Series

Bently Nevada 330130-040-00-00 Extension Cable for 3300 Series

The Bently Nevada 330130-040-00-00 is a precision-engineered extension cable designed to operate as an integral component within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone accessory, this cable serves as a critical signal transmission link between the proximity probe tip and the Proximitor sensor, ensuring that raw mechanical vibration data is accurately conveyed to the monitoring system without signal degradation, impedance mismatch, or electromagnetic interference. In complex industrial control environments — where the integrity of every signal path directly determines the reliability of machinery protection decisions — the 330130-040-00-00 plays a foundational role in maintaining system-wide measurement consistency.

Modern industrial automation systems demand that every layer of the control hierarchy — from field-level sensing through I/O conditioning, communication gateways, controller logic, and HMI visualization — operates with predictable, validated signal quality. The 330130-040-00-00 extension cable is factory-calibrated to integrate seamlessly with the 3300 XL 8mm Proximity Transducer System, ensuring that the complete transducer chain — probe, extension cable, and Proximitor sensor — meets the system’s defined sensitivity of 7.87 V/mm (200 mV/mil). This calibrated consistency is what allows the 3300 Series monitoring modules to deliver accurate gap voltage, direct vibration, and 1X/2X vector measurements that feed into higher-level protection and diagnostic logic.

Product Specification Table

System Compatibility Notes

The 330130-040-00-00 extension cable achieves its full value only when understood within the broader context of a coordinated Bently Nevada machinery protection architecture. At the field sensing layer, the 3300 XL 8mm Proximity Probe (such as the 330103-00-08-10-02-00) is installed adjacent to the rotating shaft. The probe tip generates an eddy-current field that varies with shaft position, and the resulting analog signal is carried through the 330130-040-00-00 extension cable to the 3300 XL Proximitor Sensor (e.g., 330180-X0-05), which conditions the signal and outputs a calibrated DC voltage proportional to the gap distance and dynamic vibration amplitude.

This conditioned output feeds directly into the 3500/40M Proximitor Monitor or the 3500/42M Proximitor/Seismic Monitor housed within the 3500 Series rack system. The 3500 rack — populated with a 3500/20 Rack Interface Module and a 3500/15 Power Supply Module — provides the centralized monitoring backbone. The rack communicates machinery health data upstream via the 3500/92 Communication Gateway Module, which supports Modbus TCP, EtherNet/IP, or PROFIBUS DP protocols, enabling seamless integration with plant-level DCS platforms such as Emerson DeltaV or Honeywell Experion PKS.

At the human-machine interface layer, operators interact with vibration trend data, alarm states, and vector plots through dedicated HMI workstations running System 1 Condition Monitoring Software, which aggregates data from multiple 3500 racks across the facility. For redundant protection architectures, dual-voting logic configurations using paired 3500/40M monitors ensure that no single cable or sensor failure results in an undetected machinery fault or a spurious trip. The 330130-040-00-00, as the signal carrier between probe and Proximitor, is therefore a component whose quality and calibration directly influence the reliability of the entire protection voting chain.

In cabinet-level installations, the extension cable is typically routed through conduit or cable trays alongside power cables for the 3500/15 Power Supply and signal cables from 3500/25 keyphasor modules, maintaining proper separation to minimize electromagnetic interference. Terminal blocks and junction boxes rated for the installation environment complete the field wiring layer, ensuring that the signal integrity established by the calibrated transducer chain is preserved all the way to the monitor module input terminals.

Industrial Application Notes

The 330130-040-00-00 extension cable finds application across a wide range of heavy industrial sectors where rotating machinery protection is critical to operational continuity and safety compliance.

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 3300 Series transducer chain monitors shaft radial vibration, axial position, and differential expansion. The extension cable enables probe installation in confined bearing housings while routing the signal to Proximitor sensors mounted in more accessible locations, simplifying maintenance access without compromising measurement accuracy.

In petrochemical and refinery applications, API 670 compliance mandates continuous vibration monitoring on critical rotating equipment such as centrifugal compressors, expanders, and boiler feed pumps. The 330130-040-00-00, as part of a fully calibrated 3300 XL transducer chain, satisfies the API 670 requirement for matched-system calibration, ensuring that the installed measurement chain meets the standard’s accuracy specifications without field calibration adjustments.

In mining and mineral processing environments, where large grinding mills, crushers, and slurry pumps operate under extreme mechanical loads, the robust construction of the 3300 Series extension cable withstands high-vibration, high-temperature, and chemically aggressive installation conditions. The cable’s shielded coaxial construction rejects electrical noise from variable frequency drives and high-current motor circuits that are common in these environments.

In water and wastewater treatment plants, the 330130-040-00-00 supports continuous monitoring of large vertical turbine pumps and centrifugal blowers, where early detection of bearing wear or rotor imbalance prevents unplanned outages that could disrupt municipal water supply. The warranty terms confirmed during quotation and global spare parts availability ensure that replacement cables can be sourced quickly to minimize maintenance downtime.

Product Compatibility FAQ

Q1: Is the 330130-040-00-00 extension cable interchangeable with other Bently Nevada extension cables of the same length?
No. Bently Nevada extension cables are calibrated as part of a matched transducer chain. The 330130-040-00-00 is specifically calibrated for use with the 3300 XL 8mm probe and Proximitor system. Substituting a cable from a different calibrated set — even of the same nominal length — will alter the system sensitivity and introduce measurement errors. Always replace with a cable from the same calibrated chain or re-calibrate the complete transducer set after substitution.

Q2: Can the 330130-040-00-00 be used in a redundant dual-probe architecture for API 670 compliance?
Yes. In dual-probe redundant configurations, two complete transducer chains — each consisting of a probe, extension cable, and Proximitor sensor — are installed at 90° to each other (X and Y planes) on the same bearing journal. Each 330130-040-00-00 cable serves one channel of the redundant pair, feeding independent inputs to the 3500/40M monitor. The monitor’s dual-voting logic then processes both channels independently, providing fault tolerance against single-channel failures while maintaining continuous machinery protection.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance supply?
The warranty terms confirmed during quotation covers manufacturing defects, calibration accuracy, and connector integrity under normal operating conditions. ZYPLC maintains dedicated inventory of Bently Nevada 3300 Series transducer chain components — including probes, extension cables, and Proximitor sensors — to support planned maintenance shutdowns, emergency replacements, and multi-unit project builds. Our technical team provides pre-sales architecture consultation to ensure that the correct cable length and calibration set are selected for your specific installation geometry, reducing the risk of field measurement errors and warranty claims.
