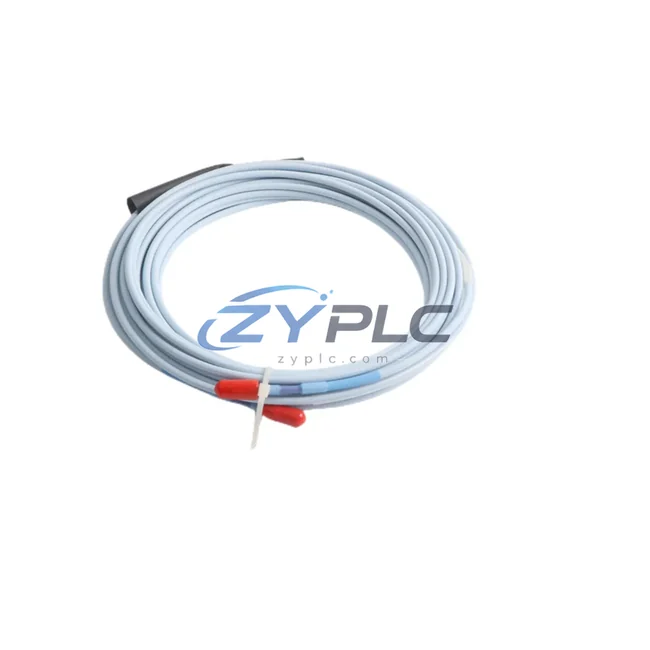

Bently Nevada 330130-070-00-00 Extension Cable 3300

Bently Nevada 330130-070-00-00 Extension Cable 3300: Precision Signal Integrity for Optimized Automation

The Bently Nevada 330130-070-00-00 is a high-performance extension cable engineered specifically for the 3300 Series vibration monitoring platform. In industrial environments where energy efficiency, equipment uptime, and production line throughput are mission-critical, signal integrity between proximity probes and monitoring modules is not a secondary concern — it is the foundation of every maintenance-focused automation decision. This cable ensures that the analog vibration signals generated at the machine shaft are transmitted with zero degradation to the 3300 Series monitor, enabling accurate, real-time data that drives smarter energy and maintenance decisions across the plant floor.

Every watt saved in an industrial facility begins with accurate measurement. When a vibration signal is corrupted by cable impedance mismatch, electromagnetic interference, or mechanical stress on a substandard cable, the monitoring system compensates with false alarms, unnecessary shutdowns, or — worse — missed fault detection. The 330130-070-00-00 eliminates these failure modes by providing a precisely matched, shielded signal path that preserves the millivolt-level output of eddy-current proximity probes across the full operating length.

Product Specification Table

System Compatibility and Application

The 330130-070-00-00 extension cable sits at the critical junction between the sensing layer and the monitoring layer of a Bently Nevada condition monitoring architecture. In a typical rotating machinery protection system, the Bently Nevada 3300 XL 8mm Proximity Transducer System (probe + extension cable + Proximitor® sensor) forms a three-component measurement chain. The extension cable is the link that determines whether the entire chain performs at specification or introduces measurement error that cascades into poor energy decisions.

When integrated with the Bently Nevada 3500/42M Proximitor®/Seismic Monitor, the 330130-070-00-00 delivers the clean signal baseline required for the monitor’s internal algorithms to distinguish between normal vibration signatures and developing faults such as rotor imbalance, misalignment, or bearing wear. These faults, if undetected, cause motors and drives to operate at elevated current draw — a direct and measurable energy penalty. The Bently Nevada 3500/22M Transient Data Interface further leverages this signal quality during machine startup and coast-down, capturing transient vibration data that informs variable frequency drive (VFD) tuning and reduces energy-intensive re-start cycles.

On the control execution side, the vibration data collected through this cable chain feeds into the plant’s DCS or safety PLC — commonly a Rockwell Automation ControlLogix L7x Series PLC or a Siemens S7-400H redundant controller — via the Bently Nevada 3500/92 Communication Gateway using Modbus TCP or PROFIBUS DP protocols. This integration allows the control system to modulate motor speed through a connected ABB ACS880 industrial drive or Siemens SINAMICS G120 variable frequency drive, reducing motor load during low-load periods identified by vibration trend analysis.

For facilities implementing a full condition monitoring stack, the vibration data from the 3300 Series system complements power quality data from Schneider Electric PowerLogic ION7650 power meters installed at the motor control center (MCC). Together, these systems provide a correlated view of mechanical vibration severity and electrical power consumption, enabling maintenance engineers to identify when a developing bearing fault is causing measurable increases in motor current — and to act before the fault escalates to an unplanned shutdown that wastes both energy and production capacity.

At the I/O and field bus level, the Bently Nevada 3500/20 Rack Interface Module aggregates signals from multiple 330130-series extension cable chains and presents them to the plant historian or SCADA system via the Bently Nevada System 1 Evolution software platform, which provides real-time dashboards, alarm management, and predictive analytics. This closed-loop architecture — from the 330130-070-00-00 cable at the machine, through the Proximitor® sensor, into the 3500 rack, and out to System 1 — is the backbone of a modern, energy-conscious predictive maintenance program.

Maintenance and Replacement Notes

In a petrochemical plant running a train of centrifugal compressors, each compressor is monitored by a Bently Nevada 3300 Series system using multiple proximity probe channels. Each channel relies on an extension cable — such as the 330130-070-00-00 — to bridge the distance between the probe tip at the bearing journal and the Proximitor® sensor mounted in the junction box. A degraded or incorrect extension cable introduces DC bias errors and AC noise into the vibration signal, causing the 3500 monitor to generate nuisance trips. Each nuisance trip forces an unplanned compressor shutdown, which in a gas compression application can waste tens of thousands of cubic meters of process gas and require a full restart sequence consuming significant electrical energy.

By specifying the correct, factory-tested 330130-070-00-00 extension cable — matched to the 7-meter gap between probe and Proximitor® — plant engineers eliminate this source of measurement error. The result is a reduction in nuisance trips, more stable compressor operation, and the ability to run the machine closer to its optimal efficiency point without triggering false high-vibration alarms. Over a 12-month operating period, this translates directly into measurable reductions in operating load per unit of throughput.

In a power generation facility, the same cable supports turbine shaft monitoring on steam or gas turbines. The 3300 Series monitors connected via 330130-070-00-00 cables provide the shaft eccentricity and differential expansion data that operators use to optimize turbine loading ramp rates. Faster, more confident ramp-up — enabled by reliable vibration data — reduces the time the turbine spends in inefficient partial-load operation, improving the overall heat rate of the unit and reducing fuel consumption per megawatt-hour generated.

For motor-driven pump applications in water treatment or HVAC systems, the vibration data transmitted through the 330130-070-00-00 cable enables condition-based maintenance scheduling. Instead of replacing bearings on a fixed calendar interval — which often means replacing bearings that still have useful life remaining, and consuming energy in the process — maintenance teams can use the vibration trend data to replace bearings only when the data indicates an approaching end-of-life condition. This predictive approach reduces maintenance labor, spare parts consumption, and the energy cost of unnecessary machine disassembly and reassembly.

Every unit of the 330130-070-00-00 supplied by ZYPLC is individually tested prior to shipment to verify electrical continuity, insulation resistance, and connector integrity. This pre-shipment testing protocol ensures that the cable performs to Bently Nevada specification from the moment it is installed, eliminating the commissioning delays and repeat site visits that waste both time and energy. All units are covered by a warranty terms confirmed during quotation, and ZYPLC maintains inventory stock for shipment arranged after confirmation to minimize plant downtime.

Product Sourcing FAQ

Q1: How does the 330130-070-00-00 extension cable contribute to operational stability in a rotating machinery application?
The cable ensures accurate, low-noise vibration signal transmission from the proximity probe to the Proximitor® sensor. Accurate vibration data reduces nuisance trips and enables condition-based maintenance, both of which reduce unplanned downtime and the associated unplanned downtime of emergency shutdowns and restarts. It also supports VFD tuning decisions that lower motor load during normal operation.

Q2: Is the 330130-070-00-00 compatible with both the 3300 Series and the 3500 Series Bently Nevada systems?
The 330130-070-00-00 is designed and specified for the Bently Nevada 3300 Series proximity transducer system. It is compatible with 3500 Series monitors when used with the appropriate 3300 Series probe and Proximitor® sensor combination. Always verify the total system gap voltage and scale factor against the 3500 monitor’s input specification before installation.

Q3: What is the recommended replacement interval, and how do I know when the cable needs to be replaced?
Bently Nevada extension cables do not have a fixed replacement interval under normal operating conditions. Replacement is recommended when insulation resistance falls below specification (typically measured during scheduled outages), when the connector shows signs of corrosion or mechanical damage, or when the vibration channel shows unexplained DC bias drift that cannot be corrected by gap adjustment. ZYPLC recommends keeping one spare 330130-070-00-00 per monitored machine train to enable rapid replacement during outages.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the testing process before shipment?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and electrical performance failures under normal operating conditions. Prior to shipment, each 330130-070-00-00 is tested for end-to-end electrical continuity, center conductor-to-shield insulation resistance, and connector mechanical integrity. A test record is available upon request. Warranty claims are processed directly through ZYPLC’s technical support team at plc.sales@zyplc.com.
