Bently Nevada 330130-075-00-00 Extension Cable for 3300 Series Systems

Bently Nevada 330130-075-00-00 Extension Cable: Industrial Data Link for 3300 Series Vibration Monitoring Systems

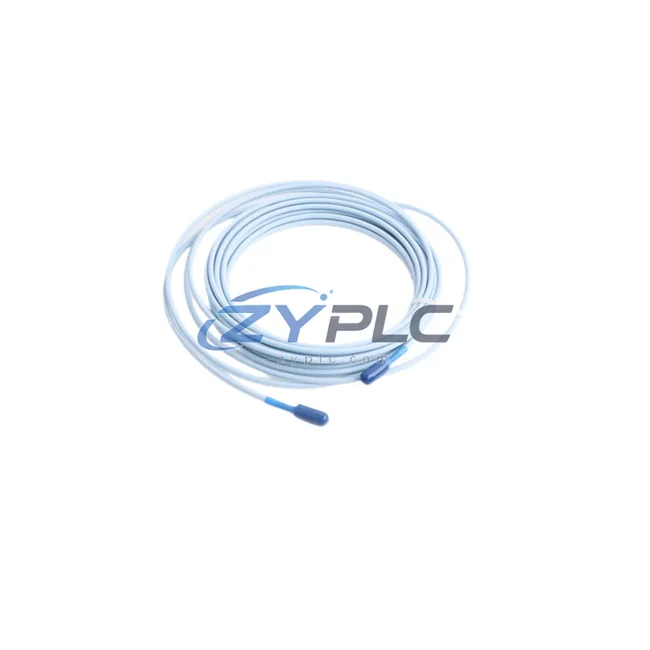

The Bently Nevada 330130-075-00-00 is a precision-engineered extension cable designed to bridge proximity probe transducers and signal conditioning modules within the Bently Nevada 3300 Series vibration monitoring architecture. In modern smart factory environments, reliable signal transmission between rotating machinery sensors and the control layer is not optional — it is the foundation of real-time condition monitoring, predictive maintenance, and uninterrupted production continuity. This 75-foot (22.86 m) extension cable delivers exactly that: a low-noise, shielded signal pathway that preserves the integrity of eddy-current proximity probe outputs across the full span of industrial installations.

Deployed across turbines, compressors, pumps, and gearboxes, the 330130-075-00-00 forms the critical physical link between the Bently Nevada 3300 XL 8mm Proximity Transducer System probes and the 3500 Series Machinery Protection System monitor racks. Its coaxial construction and precision impedance matching ensure that analog vibration signals — displacement, gap voltage, and dynamic motion data — are transmitted without attenuation or electromagnetic interference, even in electrically noisy plant environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated condition monitoring architecture, the 330130-075-00-00 extension cable operates as the signal backbone connecting field-level transducers to the plant’s data acquisition and protection layer. The data flow begins at the Bently Nevada 3300 XL 8mm Proximity Probe, which generates a continuous analog voltage signal proportional to the gap between the probe tip and the rotating shaft surface. This raw signal travels through the 330130-075-00-00 extension cable to the Bently Nevada 3300 RAM Proximitor Sensor, where it is conditioned and converted into a calibrated DC output representing shaft displacement in mils or micrometers.

From the Proximitor, the conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor Monitor housed within the 3500 Series rack. The 3500 rack aggregates vibration, position, and speed data from multiple channels and communicates upstream via Modbus TCP, Ethernet/IP, or PROFIBUS DP — depending on the installed communication gateway module — to the plant’s DCS (Distributed Control System) or SCADA platform. Integration with Bently Nevada System 1 Condition Monitoring Software enables real-time trending, alarm management, and predictive analytics across the entire rotating equipment fleet.

For facilities running GE Mark VIe turbine control systems or Emerson DeltaV DCS, the 3500 rack’s digital outputs interface seamlessly with the plant control network, enabling automated shutdown logic and alarm escalation without manual intervention. Remote I/O modules and OPC-UA gateways further extend the data reach to cloud-based analytics platforms and enterprise asset management systems, completing the loop from physical sensor to boardroom dashboard. The 330130-075-00-00 cable’s role in this chain — though passive — is indispensable: any signal degradation at this stage propagates as measurement error through every downstream system, from the 3500/15 Power Supply Module to the SCADA historian.

In multi-machine installations, the cable is commonly deployed alongside Bently Nevada 330180-X-XX Armored Extension Cables in high-temperature or mechanically aggressive zones, while standard 330130 series cables serve accessible, climate-controlled cable trays. This combination ensures system-wide signal fidelity regardless of installation environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is the fragmentation of machinery health data across incompatible systems. Older plants often operate with legacy vibration monitoring hardware that cannot communicate natively with modern SCADA or MES platforms, creating data silos that prevent plant-wide visibility and delay maintenance decisions.

The Bently Nevada 330130-075-00-00, as part of the 3300/3500 ecosystem, directly addresses this challenge. By providing a reliable, standardized signal path from proximity probes to the 3500 monitor rack, it enables the 3500 system’s built-in communication modules to bridge legacy analog instrumentation with modern digital networks. Plants can implement protocol conversion gateways — such as Modbus-to-OPC-UA converters or PROFIBUS-to-Ethernet/IP bridges — at the 3500 rack level, without modifying field wiring or replacing existing transducers.

This approach delivers immediate benefits: production line transparency improves as vibration data becomes accessible in real time on HMI screens and SCADA dashboards; remote diagnostics become possible as maintenance engineers can monitor shaft displacement trends from control rooms or mobile devices; and system expansion is simplified, as additional 3300 probe channels can be added to the 3500 rack without redesigning the signal infrastructure. The result is a connected, scalable condition monitoring network that grows with the plant’s automation maturity — from basic alarm monitoring to full predictive maintenance integration with AI-driven analytics platforms.

Every 330130-075-00-00 unit supplied by ZYPLC undergoes pre-shipment continuity and impedance verification testing to confirm signal integrity before dispatch. Stock is maintained for immediate availability, and all units are covered by a warranty terms confirmed during quotation with full technical support for integration and commissioning.

Industrial Connectivity FAQ

Q1: Is the 330130-075-00-00 compatible with both the 3300 and 3500 Series systems?
Yes. The 330130-075-00-00 extension cable is designed for use within the Bently Nevada 3300 XL Proximity Transducer System and connects directly to 3300 RAM Proximitor Sensors, which in turn interface with the 3500 Series Machinery Protection System monitor racks. It is a standard component in both new installations and retrofit projects.

Q2: Will this cable introduce signal delay or latency in the vibration monitoring chain?
No. As a passive coaxial cable, the 330130-075-00-00 introduces no active processing delay. Signal propagation through the cable is effectively instantaneous relative to the sampling rates of the 3500 monitor modules. The double-shielded construction minimizes EMI-induced noise, ensuring that the analog signal reaching the Proximitor and monitor rack is a true representation of shaft motion.

Q3: Can this cable be used in SCADA-integrated machinery protection systems?
Yes. The 330130-075-00-00 is fully compatible with SCADA-integrated architectures. The analog signal it carries is conditioned by the Proximitor and digitized by the 3500 monitor, which then communicates with SCADA systems via Modbus TCP, Ethernet/IP, PROFIBUS DP, or OPC-UA — depending on the communication module installed in the 3500 rack. No modifications to the cable or transducer system are required for SCADA integration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this product?
All 330130-075-00-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment electrical testing including continuity verification and impedance checking to confirm compliance with Bently Nevada specifications. Technical support for installation, integration, and commissioning is available throughout the warranty period.
