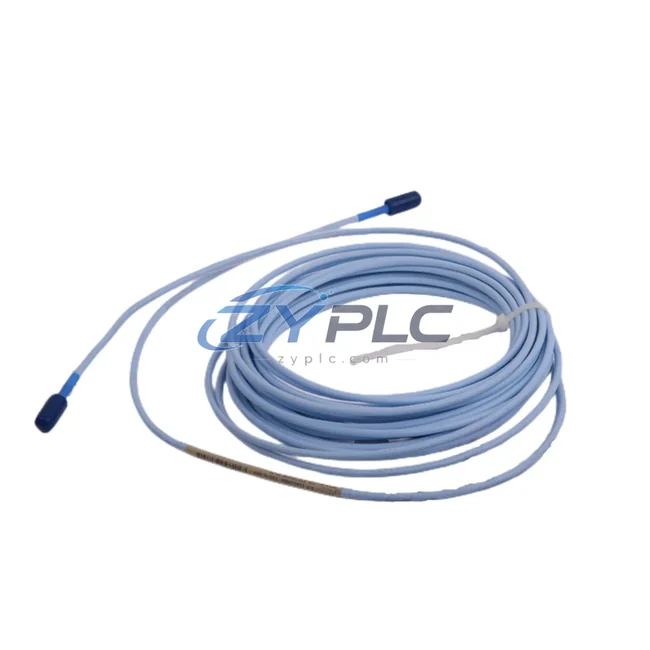

Bently Nevada 330130-080-00-00 Extension Cable for 3300

Bently Nevada 330130-080-00-00 Extension Cable for 3300 Series

The Bently Nevada 330130-080-00-00 is an 8-meter extension cable engineered specifically for the 3300 Series proximity transducer system, serving as a precision signal-transmission component within layered industrial automation and condition monitoring architectures. Rather than functioning as a standalone accessory, this extension cable occupies a critical position in the signal chain between the proximity probe tip and the Bently Nevada 3300 XL proximitor sensor, ensuring that raw vibration and position data is delivered with full signal integrity to the monitoring rack. In complex rotating machinery protection systems — where turbines, compressors, pumps, and generators must be continuously supervised — the reliability of every cable segment directly determines the accuracy of the overall system response.

Within a complete Bently Nevada monitoring architecture, the 330130-080-00-00 extension cable connects the field-mounted proximity probe (such as the 330101 or 330103 series) to the proximitor sensor, which in turn feeds conditioned output signals into the 3500 Series monitoring rack. The 3500 rack accepts inputs from multiple channel cards — including the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor — and processes vibration, axial position, and differential expansion data in real time. The extension cable’s role in this architecture is to maintain the precise electrical characteristics required by the eddy-current measurement system: any impedance mismatch, shielding failure, or connector degradation will propagate measurement error through the entire signal chain, potentially triggering false alarms or masking genuine machinery faults.

Product Specification Table

System Compatibility Notes

The 330130-080-00-00 extension cable is most effectively deployed as part of a fully coordinated Bently Nevada transducer chain. At the field level, the 330101-00-08-10-02-00 proximity probe is threaded into the bearing housing and secured with a locknut, establishing the measurement point for shaft radial vibration. The probe’s integral cable connects to the 330130-080-00-00 extension cable via a coaxial junction, extending the signal path to the proximitor sensor — typically a 330180-X1-05 or 330185-X1-05 unit — mounted in a junction box or directly on the machinery skid. The proximitor converts the raw oscillator frequency shift into a calibrated DC voltage signal, which is then routed via armored instrumentation cable to the 3500 monitoring rack.

Inside the 3500 rack, the signal enters a 3500/40M or 3500/42M monitor card, which performs real-time gap, 1X, and 2X vibration analysis. The rack’s 3500/20 rack interface module manages communication with the plant DCS or SCADA system via Modbus, Profibus, or OPC-DA/UA protocols, enabling operators to view machinery health data on an HMI workstation running System 1 Evolution software. For critical machinery trains — such as gas turbine generator sets or large centrifugal compressors — the 3500 rack is typically configured in a redundant architecture using dual power supplies (3500/15 Power Supply modules) and redundant communication paths, ensuring that no single component failure interrupts continuous monitoring.

In installations where the machinery is located far from the control room, the 330130-080-00-00 extension cable’s 8-meter length bridges the gap between the probe and the proximitor without introducing signal degradation. For longer runs, engineers may combine this extension cable with a 330130-045-00-00 (4.5-meter) or 330130-020-00-00 (2-meter) cable segment, always ensuring that the total system cable length remains within the calibrated range specified for the 3300 XL transducer system. Proper cable routing — avoiding parallel runs with high-voltage power cables and using dedicated cable trays with grounding at one end — is essential for maintaining the low-noise signal environment required by the eddy-current measurement principle.

Industrial Application Notes

In power generation facilities, the 330130-080-00-00 extension cable is a standard component in steam turbine and gas turbine protection systems. Turbine shafts operating at 3000 or 3600 RPM generate vibration signatures that must be continuously monitored to prevent catastrophic bearing failures. The extension cable ensures that the proximity probe signal reaches the 3500 rack with full fidelity, enabling the system to detect sub-millimeter changes in shaft position and trigger protective shutdowns when vibration exceeds API 670 alarm setpoints.

In petrochemical and refinery applications, the cable is deployed on centrifugal compressor trains, where axial position monitoring is as critical as radial vibration measurement. The 330130-080-00-00 connects thrust probes to proximitor sensors on compressor casings, feeding position data to the 3500/60 rack card for axial displacement monitoring. In water treatment and municipal pumping stations, the cable supports condition monitoring of large vertical turbine pumps, where access to the bearing housing is limited and cable routing must navigate complex structural environments. In mining and minerals processing, the cable is used on SAG mill drive systems and large slurry pump installations, where the harsh environment demands the full shielding and temperature tolerance that the 3300 XL system provides.

Across all these applications, the 330130-080-00-00 extension cable contributes to system-level reliability by maintaining signal chain integrity from the measurement point to the monitoring rack. Its factory-terminated connectors eliminate field-termination errors, and its matched impedance characteristics ensure that the proximitor sensor operates within its calibrated range, delivering accurate gap voltage readings that form the foundation of the entire machinery protection strategy.

Product Compatibility FAQ

Q1: Is the 330130-080-00-00 compatible with both the 3300 XL and the older 3300 Series proximitor sensors?
The 330130-080-00-00 is designed and calibrated for the 3300 XL proximity transducer system. While the physical connectors may be compatible with earlier 3300 Series proximitor sensors, Bently Nevada specifies that the complete transducer system — probe, extension cable, and proximitor — must be used as a matched set to maintain calibration accuracy. Mixing components from different system generations can introduce gap voltage errors that compromise alarm setpoint accuracy. For legacy 3300 installations, verify the proximitor part number and consult the system calibration documentation before substituting extension cable lengths.

Q2: How does the 330130-080-00-00 integrate with the 3500 rack architecture, and what are the key installation considerations?
The extension cable connects the field proximity probe to the proximitor sensor, which outputs a calibrated DC voltage (typically -18 VDC at the midpoint of the measurement range) to the 3500 monitor card input. Installation best practices include routing the cable in a dedicated, grounded cable tray separated from power cables by at least 300 mm, grounding the cable shield at the proximitor end only to prevent ground loops, and securing the cable with non-metallic clamps to avoid mechanical stress on the coaxial connector. The 3500 rack’s channel configuration must match the total system cable length to ensure correct scale factor and gap voltage calibration. After installation, a static calibration check using a calibrated gap simulator is recommended before commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship, including connector integrity, cable shielding continuity, and impedance matching characteristics. For maintenance engineers managing rotating machinery protection systems, the warranty provides assurance that replacement cables supplied as spare parts will perform to the same specification as the original installation components. We recommend maintaining a minimum of two spare extension cables per monitored machinery train in your site inventory, particularly for critical assets where unplanned downtime carries significant production cost. Our supply chain supports rapid dispatch to minimize the time between fault identification and system restoration.
