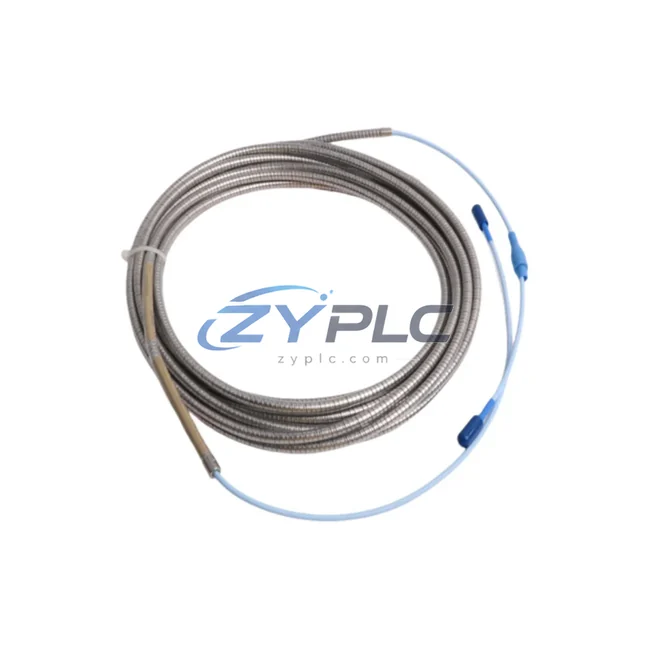

Bently Nevada 330130-085-03-05 Extension Cable for 3300 Series

Bently Nevada 330130-085-03-05 Extension Cable for 3300 Series

The Bently Nevada 330130-085-03-05 is an 8.5-metre (28-foot) standard extension cable engineered specifically for the 3300 Series proximity transducer system. Within a layered industrial automation architecture, this extension cable occupies a critical signal-path role between the proximity probe tip and the Proximitor® sensor, ensuring that raw eddy-current displacement signals are transmitted with minimal attenuation, noise, or impedance mismatch. Its integration into a complete vibration monitoring and machinery protection system is not incidental — it is architecturally mandated. Every cable length, connector type, and shielding specification in the 330130 family is calibrated to maintain the system’s overall measurement accuracy to within ±1% of full-scale output, a tolerance that directly governs the reliability of the connected 3300 Series monitor rack.

In a full-scale rotating machinery protection system, the 330130-085-03-05 extension cable connects the 330101 or 330104 proximity probe to the 330180 or 330190 Proximitor® sensor. The Proximitor® sensor then feeds conditioned 4–20 mA or voltage signals into the 3300/16 or 3300/20 monitor modules housed within the 3300 Series rack. These monitor modules communicate shaft displacement, gap voltage, and vibration amplitude data upstream to the System 1 condition monitoring software platform via the TDI (Transient Data Interface) or direct Ethernet/Modbus TCP gateway. The 330130-085-03-05 is therefore not a peripheral accessory — it is the signal backbone that determines whether the entire measurement chain from probe tip to control room DCS remains within calibrated specification.

From a system architecture perspective, the 330130-085-03-05 must be selected in conjunction with the correct probe and Proximitor® combination. Pairing it with the 330101-00-06-10-02-00 proximity probe and the 330180-X1-05 Proximitor® sensor creates a fully matched 3300 Series transducer system with a linear measurement range of 0.25 mm to 2.26 mm (10 to 89 mils). Substituting a non-matched cable length — for example, using a 330130-080-03-05 (7.62 m) or 330130-090-03-05 (9.14 m) — would shift the system’s calibration curve and introduce measurement error that cannot be corrected at the monitor level without recalibration. This is why procurement teams and reliability engineers must specify the exact part number rather than a generic cable length.

In redundant machinery protection architectures — common in turbine trains, compressor strings, and boiler feed pump systems — dual-voting or triple-redundant monitor configurations require matched cable sets across all measurement planes. A typical radial vibration measurement point on a large steam turbine will deploy two 330130-085-03-05 cables (X and Y planes), each feeding an independent channel within the 3300/16 monitor. The monitor’s internal voting logic compares both channels; any discrepancy beyond the configured alert setpoint triggers an alarm or trip relay output to the turbine control system. The integrity of this voting logic depends entirely on both cables maintaining identical electrical characteristics — a requirement that the 330130-085-03-05’s factory-matched construction directly supports.

Beyond the transducer chain, the 330130-085-03-05 interfaces with the broader plant automation hierarchy. At the field level, the Proximitor® sensor output connects to the 3300 Series monitor rack’s terminal board — typically the 3300/05 or 3300/10 I/O module — which aggregates signals from multiple measurement points across the machine train. The rack communicates with the plant DCS (such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system) via hardwired relay contacts for trip and alarm functions, and via Modbus RTU or OPC-DA/UA for continuous data streaming to the historian. The 330130-085-03-05 is the first link in this chain; its correct installation and routing — away from high-voltage power cables, VFD output conductors, and RF sources — is a prerequisite for clean signal transmission throughout the entire hierarchy.

Installation and commissioning of the 330130-085-03-05 follows Bently Nevada’s standard gap-setting procedure. After routing the cable through the conduit or cable tray and connecting the probe and Proximitor® sensor, the technician adjusts the probe gap to achieve the nominal -10.0 VDC gap voltage (for a standard 5 mm probe with 200 mV/mil sensitivity). This gap voltage is verified at the Proximitor® output terminals using a calibrated digital multimeter before the monitor rack is energized. The 3300 Series monitor’s OK relay will de-energize if the gap voltage falls outside the configured OK limits (typically -2 VDC to -18 VDC), providing an immediate indication of cable continuity or probe installation issues. This self-diagnostic capability, enabled by the matched cable system, significantly reduces commissioning time on new installations and simplifies fault isolation during maintenance outages.

Long-term reliability of the 330130-085-03-05 in harsh industrial environments — high ambient temperature, vibration, chemical exposure, and mechanical stress at cable entry points — is supported by its armored construction and oil-resistant outer jacket. In petrochemical and refinery applications, where cable routing through classified hazardous areas (Zone 1 or Division 1) is common, the cable’s construction must be verified against the applicable area classification and the Proximitor® sensor’s intrinsic safety (IS) or explosion-proof (XP) certification. The 330130-085-03-05 is compatible with IS-certified Proximitor® sensors when installed per the applicable control drawing, maintaining the integrity of the IS barrier system and the associated 3300 Series monitor’s SIL rating.

Product Specification Table

System Compatibility Notes

The 330130-085-03-05 extension cable achieves its full value only when specified as part of a coordinated transducer system. A complete radial vibration measurement channel for a single bearing journal typically includes the 330101-00-06-10-02-00 proximity probe, the 330130-085-03-05 extension cable, and the 330180-X1-05 Proximitor® sensor — all three components factory-matched to the same calibration curve. The Proximitor® sensor output feeds the 3300/16 Dual Vibration Monitor or the 3300/20 Dual Vibration/Position Monitor, which provides independent OK, Alert, and Danger relay outputs for each measurement channel.

At the rack level, the 3300/05 Power Supply provides regulated DC power to the monitor modules and Proximitor® sensors, while the 3300/10 Rack Interface Module manages communication between the monitor rack and the plant DCS or System 1 software. For axial position monitoring on thrust bearings, the 330130-085-03-05 is equally applicable when paired with the 330104-00-06-10-02-00 proximity probe and the corresponding Proximitor® sensor configured for position measurement. In phase reference applications — where a once-per-revolution keyphasor signal is required for synchronous vibration analysis — the 330980-XX-05 Keyphasor® Transducer and its associated extension cable complete the measurement system, providing the phase reference input to the 3300/25 Keyphasor® Module.

For large machine trains requiring simultaneous monitoring of multiple bearings, the 3500 Series Machinery Protection System rack can accept signals from 3300 Series transducer chains via appropriate interface modules, providing a migration path for plants upgrading from 3300 to 3500 Series monitoring without replacing field-installed transducer hardware. This architectural flexibility — the ability to retain existing 330130-085-03-05 cables and probes while upgrading the monitor rack — represents a significant capital cost saving and reduces the scope of plant outage work required for system modernization.

Industrial Application Notes

In power generation applications — gas turbines, steam turbines, and hydro generators — the 330130-085-03-05 is deployed at every radial and thrust bearing journal, providing the continuous shaft displacement data that the turbine control system uses to enforce vibration trip limits and protect against catastrophic bearing failure. In petrochemical and refinery environments, the cable’s oil-resistant jacket and IS compatibility make it suitable for installation on centrifugal compressors, pumps, and agitators operating in classified hazardous areas, where unplanned shutdowns carry both safety and production cost consequences measured in millions of dollars per day.

In water and wastewater treatment plants, large vertical turbine pumps and blower trains equipped with 3300 Series monitoring systems rely on the 330130-085-03-05 to maintain continuous bearing health surveillance, enabling condition-based maintenance scheduling that extends equipment life and reduces unplanned outage frequency. In mining and minerals processing — where SAG mills, ball mills, and large slurry pumps operate under extreme mechanical loads — the cable’s robust construction withstands the high-vibration, high-dust environment while maintaining signal integrity to the monitor rack. In metallurgical and steel mill applications, the cable is used on rolling mill drive trains and continuous caster pinch roll assemblies, where precise shaft position monitoring is critical to product quality and roll gap control.

Across all these industries, the common thread is the same: the 330130-085-03-05 is not selected in isolation. It is specified as part of a complete machinery protection architecture, where every component — from the probe tip to the DCS historian — must be matched, calibrated, and maintained as a system. ZYPLC’s warranty terms confirmed during quotation and global inventory support ensure that replacement cables are available on short lead times, minimizing the duration of any monitoring gap during planned or unplanned maintenance events.

Product Compatibility FAQ

Q1: Can the 330130-085-03-05 be used with any Bently Nevada proximity probe, or must it be matched to a specific probe model?
The 330130-085-03-05 must be used as part of a factory-matched 3300 Series transducer system. The cable’s electrical characteristics — impedance, capacitance per unit length, and connector configuration — are calibrated in conjunction with a specific probe model (typically the 330101 or 330104 series) and a specific Proximitor® sensor. Substituting a non-matched cable length or a cable from a different product family will shift the system’s calibration curve and introduce measurement error. Always verify the complete part number combination against Bently Nevada’s system compatibility matrix before procurement.

Q2: Is the 330130-085-03-05 compatible with the 3500 Series Machinery Protection System, and can it be used during a phased migration from 3300 to 3500 Series?
The 330130-085-03-05 is a 3300 Series component and is not directly interchangeable with 3500 Series transducer cables. However, during a phased migration, existing 3300 Series field transducer chains — including the 330130-085-03-05 cable, probe, and Proximitor® sensor — can continue to operate and feed signals to 3500 Series monitor racks via appropriate interface modules, subject to Bently Nevada’s compatibility documentation. This approach allows plants to upgrade the monitor rack and software platform without replacing field-installed hardware, reducing outage scope and capital expenditure. Consult ZYPLC’s technical team for migration-specific compatibility confirmation.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the 330130-085-03-05?
ZYPLC’s warranty terms confirmed during quotation covers the 330130-085-03-05 against manufacturing defects, connector failure, and signal integrity degradation attributable to the cable assembly itself under normal operating conditions. The warranty period begins from the date of shipment. For long-term spare parts planning, ZYPLC maintains inventory of the 330130-085-03-05 and related 3300 Series components to support both planned maintenance schedules and emergency replacement requirements. Customers are encouraged to establish a recommended spare parts list (RSPL) that includes at least one spare cable per critical measurement point, ensuring that monitoring continuity can be restored within the shortest possible timeframe following a cable failure.
