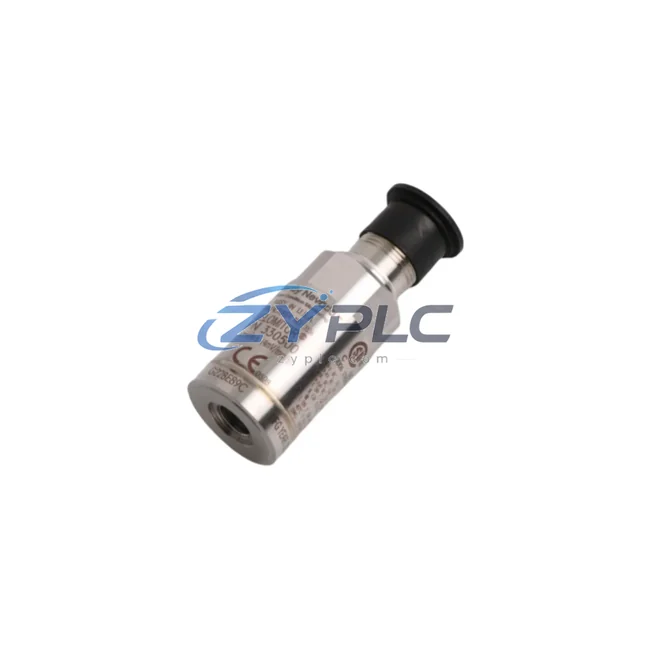

Bently Nevada 330500-00-04 Industrial Vibration Monitor for 3300 Series

Bently Nevada 330500-00-04: Industrial Data Link for Vibration Monitoring in Smart Factory Systems

The Bently Nevada 330500-00-04 is a precision vibration monitoring module engineered for the 3300 Series condition monitoring platform. Designed for continuous, real-time acquisition of vibration, displacement, and proximity data from rotating machinery, this module serves as a critical node in the industrial data chain — bridging field-level sensors with PLC controllers, DCS systems, SCADA platforms, and upper-level MES/ERP environments. In smart factory deployments where machine health directly impacts production uptime, the 330500-00-04 delivers the signal integrity and protocol compatibility required for seamless system integration.

From signal acquisition at the transducer level through to alarm management and remote diagnostics, the 330500-00-04 is built to support the full data flow of a modern industrial monitoring architecture. Its compatibility with the broader Bently Nevada 3300 Series ecosystem — including the 3300/16 Proximitor sensor, 3300/55 Velomitor velocity transducer, and 3500 Series rack-based monitoring systems — ensures that vibration data captured at the machine shaft can be reliably transmitted, processed, and acted upon across the entire automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 330500-00-04 sits at the heart of the machine-level data acquisition layer. Vibration and displacement signals originate from Bently Nevada 3300/16 Proximitor sensors mounted on turbine shafts, compressor bearings, or pump impellers. These raw analog signals are conditioned and processed by the 330500-00-04 module, which outputs a calibrated 4–20 mA signal and buffered transducer output (BTO) for downstream consumption.

The conditioned signal is then routed to a Bently Nevada 3500 Series rack-based monitoring system, where it is compared against configurable alarm setpoints. When vibration levels exceed alert or danger thresholds, the module’s OK relay triggers immediate alarm feedback to the plant’s DCS (Distributed Control System) — such as an Emerson Ovation or Honeywell Experion PKS controller — enabling automated protective shutdown sequences without operator intervention.

For facilities integrating legacy analog instrumentation with modern digital networks, a Modbus RTU-to-Ethernet gateway (such as the Moxa MGate MB3180 or similar industrial protocol converter) bridges the 330500-00-04’s analog output into a structured Modbus register map, making vibration data accessible to SCADA platforms like Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC. This enables plant operators to visualize real-time vibration trends, configure remote alarm thresholds, and perform predictive maintenance scheduling from a centralized HMI workstation.

At the field network level, the 330500-00-04 integrates naturally alongside Bently Nevada 3300/55 Velomitor velocity transducers for absolute vibration measurement, 3300 XL 8mm Proximitor sensors for shaft displacement monitoring, and Bently Nevada 3500/42M Proximitor I/O modules for multi-channel rack expansion. Remote I/O modules from platforms such as Siemens ET 200SP or Rockwell Automation FLEX I/O can aggregate multiple 330500-00-04 channel outputs for transmission over PROFIBUS DP or EtherNet/IP to the plant’s main PLC controller, completing the data loop from machine shaft to control room dashboard.

Edge computing nodes — such as an industrial edge gateway running OSIsoft PI or similar historian software — can subscribe to the real-time vibration data stream, enabling long-term trend analysis, FFT spectrum logging, and AI-driven anomaly detection. This positions the 330500-00-04 not merely as a signal conditioner, but as a foundational data source for the plant’s entire predictive maintenance and digital twin strategy.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — vibration data locked inside proprietary monitoring racks, inaccessible to the plant’s broader automation and IT infrastructure. The Bently Nevada 330500-00-04 directly addresses this problem through its standardized analog output and BTO interface, which are universally compatible with virtually all DCS analog input cards, PLC signal modules, and data acquisition systems.

In plants where multiple generations of monitoring equipment coexist — older 3300 Series modules alongside newer 3500 Series racks — the 330500-00-04 provides a consistent signal interface that eliminates protocol fragmentation. Its 4–20 mA output can be wired directly into any standard analog input card without requiring custom drivers or middleware, dramatically reducing integration complexity and commissioning time.

For remote monitoring applications — offshore platforms, pipeline compressor stations, or unmanned substations — the 330500-00-04’s reliable signal output enables remote diagnostics via SCADA polling cycles as fast as 1 second, giving maintenance engineers full visibility into machine health without requiring on-site presence. Combined with a cellular or fiber-connected industrial router, the vibration data chain extends from the machine bearing to a cloud-hosted dashboard, enabling production line transparency across geographically distributed assets.

System expansion is equally straightforward: additional 330500-00-04 modules can be added to existing 3300 Series racks without rewiring the transducer field cables, and the rack’s backplane distributes power and signal routing automatically. This modular architecture supports phased rollouts — starting with critical machinery and expanding coverage as budget allows — without disrupting existing monitoring infrastructure.

Every unit shipped undergoes functional output testing prior to dispatch, verifying signal accuracy, OK relay operation, and BTO output integrity. Combined with a warranty terms confirmed during quotation covering manufacturing defects and functional failures, the 330500-00-04 offers procurement teams the confidence of a tested, guaranteed component ready for immediate installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330500-00-04 support for SCADA integration?
The 330500-00-04 outputs a standard 4–20 mA analog signal and buffered transducer output (BTO), which are compatible with virtually all DCS and PLC analog input modules. For digital SCADA integration over Modbus RTU or EtherNet/IP, an industrial protocol gateway (e.g., Moxa MGate series) is used to convert the analog signal into a structured digital register map accessible by SCADA software such as Ignition, WinCC, or Wonderware.

Q2: Is the 330500-00-04 compatible with both the 3300 Series and 3500 Series Bently Nevada racks?
The 330500-00-04 is designed for the 3300 Series rack platform. While its BTO output can feed signal into 3500 Series input channels via external wiring, direct rack-slot compatibility is specific to the 3300 Series. For 3500 Series rack deployments, the equivalent 3500/42M or 3500/40M Proximitor I/O modules are recommended.

Q3: How does the module perform in high-vibration or electrically noisy industrial environments?
The 330500-00-04 is engineered for industrial-grade EMI immunity and operates reliably in environments with significant electrical noise from variable frequency drives (VFDs), motor starters, and high-current bus bars. Its shielded signal path and differential input design minimize common-mode noise pickup, ensuring stable, accurate vibration readings even in electrically challenging plant environments.

Q4: What does the warranty terms confirmed during quotation cover, and what is the lead time for availability confirmed by RFQ units?
The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions, including signal output accuracy, relay operation, and module power integrity. Availability confirmed by RFQ units are tested prior to shipment and can typically be dispatched within 1–3 business days via DHL or FedEx international express, with tracking provided upon dispatch.
