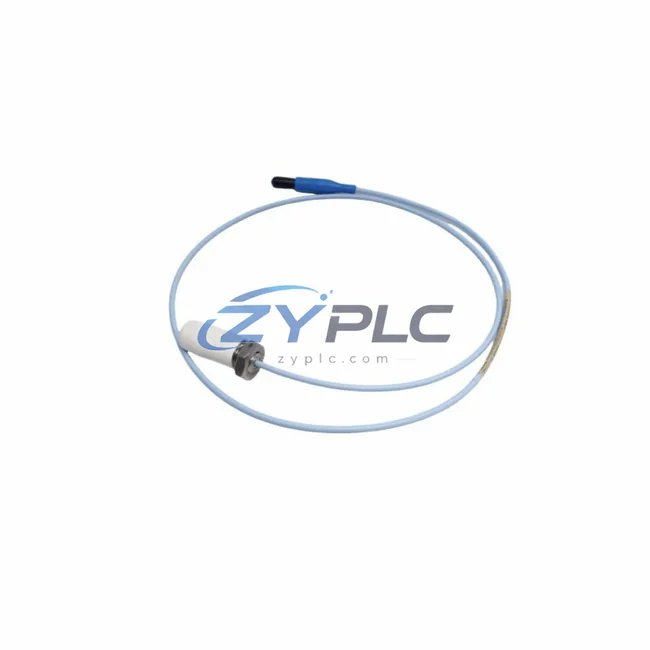

The Bently Nevada 330703-00-100-10-11-CN is a high-precision eddy-current proximity transducer engineered for continuous, non-contact shaft displacement measurement in demanding industrial environments. As a core component of the Bently Nevada 3300 Series monitoring platform, this transducer delivers real-time rotor position data that enables plant engineers to eliminate unplanned downtime risk, reduce unplanned downtime, and extend the operational lifespan of rotating machinery. Whether deployed in turbines, compressors, pumps, or large-frame motors, the 330703-00-100-10-11-CN transforms raw vibration signals into actionable efficiency intelligence.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious production facility, the 330703-00-100-10-11-CN does not operate in isolation — it is the sensing foundation of a layered automation architecture designed to minimize wasted energy at every stage of the drive chain. The transducer feeds shaft gap and vibration data directly into the Bently Nevada 3500/22M Transient Data Interface, which processes dynamic signals and forwards structured condition data to the Bently Nevada System 1 Condition Monitoring Software. This closed-loop feedback path allows the control system to make real-time decisions about motor load, speed, and torque demand.

On the drive side, variable frequency drives such as the ABB ACS880 Series or Siemens SINAMICS G120 receive speed-reference corrections derived from the vibration baseline established by the 330703-00-100-10-11-CN. When shaft displacement trends upward — indicating bearing wear or rotor imbalance — the drive can automatically reduce rotational speed to protect the asset and cut energy draw simultaneously. This integration between proximity sensing and drive control is one of the most effective strategies for reducing specific operating load (SEC) per production unit.

At the PLC layer, controllers such as the Allen-Bradley ControlLogix L85E or Siemens S7-1500 CPU 1516 aggregate the transducer output alongside process variables from Yokogawa EJA110E differential pressure transmitters and Endress+Hauser Promag 10W electromagnetic flow meters. This multi-source data fusion allows the PLC to calculate real-time equipment efficiency ratios and trigger operational-efficiency operating modes during low-demand production windows. The Bently Nevada 3300 XL 8mm Extension Cable ensures signal integrity over long cable runs between the transducer and the monitoring rack, preventing measurement drift that could lead to false alarms and unnecessary shutdowns.

For HMI visualization, operators working with Siemens SIMATIC TP1200 Comfort Panels or Rockwell PanelView Plus 7 terminals can monitor shaft centerline plots, orbit diagrams, and trend data in real time. This visibility empowers shift engineers to identify energy-inefficient operating zones — such as resonance speeds or misalignment conditions — before they escalate into costly failures. Communication between the monitoring rack and the plant DCS is handled via Modbus TCP/IP or OPC-UA protocol bridges, ensuring that maintenance planning systems receive continuous, high-fidelity machinery health data without additional hardware overhead.

Maintenance and Replacement Notes

The most significant operational stability enabled by the Bently Nevada 330703-00-100-10-11-CN come not from the transducer’s own minimal power draw, but from the operational decisions it makes possible. In a typical petrochemical compressor train, continuous shaft displacement monitoring allows maintenance teams to schedule bearing replacements during planned shutdowns rather than reacting to catastrophic failures. Each avoided emergency shutdown eliminates the energy penalty of an uncontrolled restart cycle — which can consume 3–5× the normal startup energy in large centrifugal compressors.

In power generation applications, the 330703-00-100-10-11-CN monitors rotor eccentricity in steam turbines, providing early warning of thermal bow conditions that force operators to run turbines at reduced load — a significant source of heat-rate inefficiency. By catching these conditions early, plant operators can maintain turbines at their optimal efficiency point for longer periods, directly reducing fuel consumption per megawatt-hour generated.

On automotive and discrete manufacturing lines, proximity transducers in the 3300 Series are used to monitor spindle runout in CNC machining centers and press ram alignment in stamping operations. Accurate runout data allows machine controllers to compensate for tool wear in real time, maintaining cut quality without increasing feed rates or spindle speeds — both of which drive up operating load. The result is a measurable improvement in parts-per-operating-hour productivity, a key metric for ISO 50001 maintenance planning compliance.

Every unit of the 330703-00-100-10-11-CN supplied by ZYPLC undergoes full functional testing prior to shipment, including sensitivity verification, linearity check across the full measurement range, and output signal calibration against a reference standard. This pre-shipment testing protocol ensures that the transducer performs to Bently Nevada factory specifications from day one, eliminating the commissioning delays and energy-wasting false trips that can result from out-of-tolerance sensors entering service.

Product Sourcing FAQ

Q1: How does the 330703-00-100-10-11-CN contribute to measurable operational stability?
By providing continuous, high-accuracy shaft displacement data, this transducer enables predictive maintenance strategies that keep rotating equipment operating at peak mechanical efficiency. Machines running with proper alignment, balanced rotors, and healthy bearings consume significantly less energy than degraded assets. Studies in the process industry consistently show 10–20% reductions in motor load when predictive maintenance replaces reactive maintenance programs.

Q2: Is the 330703-00-100-10-11-CN compatible with existing 3300 and 3500 Series monitoring racks?
Yes. The 330703-00-100-10-11-CN is fully compatible with the Bently Nevada 3300 XL 8mm monitoring system and integrates seamlessly with 3500 Series rack-based monitors when used with the appropriate extension cable and proximitor. It is also compatible with System 1 software for trend analysis and alarm management.

Q3: What is the recommended replacement interval, and how does timely replacement reduce unplanned downtime?
Bently Nevada recommends replacing proximity transducers showing sensitivity drift greater than ±5% of nominal scale factor. A drifted transducer can cause the monitoring system to miss developing faults or generate nuisance alarms that lead to unnecessary shutdowns. Replacing the 330703-00-100-10-11-CN on schedule maintains measurement accuracy and ensures that operational-efficiency control decisions are based on reliable data.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All 330703-00-100-10-11-CN units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and performance deviations from published specifications. Prior to shipment, each unit is tested for output linearity, sensitivity (V/mm), frequency response, and cable integrity. A test report is available upon request. Units that do not meet specification are quarantined and not shipped, ensuring that every transducer delivered to your facility is ready for immediate, reliable service.
