Bently Nevada 330903-00-12-05-02-CN Proximity Transducer

Bently Nevada 330903-00-12-05-02-CN Proximity Transducer: Replacement and Sourcing Information

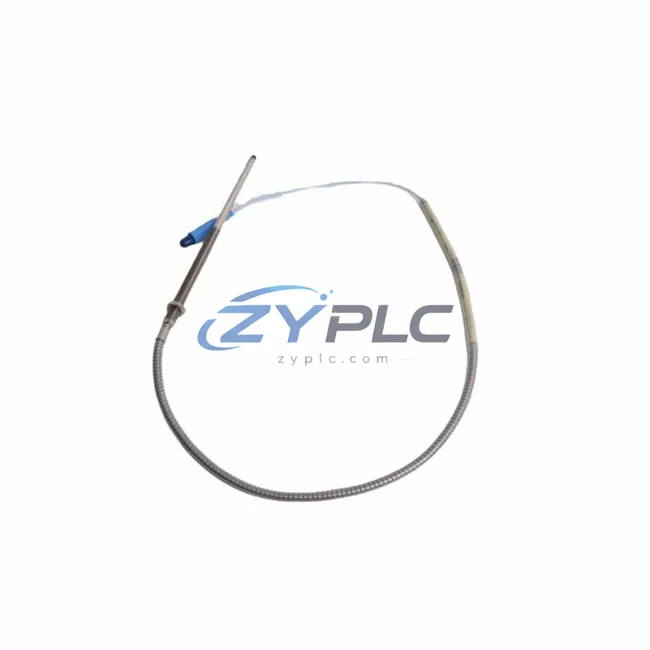

The Bently Nevada 330903-00-12-05-02-CN is a high-performance eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding turbomachinery and rotating equipment environments. By providing real-time shaft displacement data with exceptional signal fidelity, this transducer enables plant operators to move from reactive maintenance cycles to predictive, maintenance-focused asset management — directly reducing unplanned downtime risk caused by unbalanced rotors, misaligned shafts, and degraded bearing conditions.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect mechanical inefficiency at the earliest stage is a decisive competitive advantage. The 330903-00-12-05-02-CN integrates seamlessly into the Bently Nevada 3300 Series monitoring architecture, feeding precision displacement signals into the system’s signal conditioning chain so that control engineers can act on accurate data rather than assumptions.

Product Specification Table

System Compatibility and Application

The 330903-00-12-05-02-CN proximity transducer does not operate in isolation — it is the sensing front-end of a tightly integrated condition monitoring and control ecosystem. When paired with the Bently Nevada 3300 XL 8mm Driver (330180-91-05), the transducer’s raw eddy-current signal is conditioned into a calibrated DC voltage output that represents exact shaft gap distance. This signal is then routed to the Bently Nevada 3500/42M Proximitor I/O Module, which processes radial vibration, axial position, and eccentricity data simultaneously across multiple measurement channels.

Within a complete plant automation architecture, the 3500 Series rack communicates over Modbus TCP or OPC-UA to the facility’s distributed control system (DCS) or SCADA platform. This allows the Bently Nevada System 1 Condition Monitoring Software to correlate vibration trends with process variables such as load, speed, and temperature — enabling operators to identify when a motor or compressor is drawing abnormal load due to mechanical degradation rather than genuine process demand. The result is a measurable reduction in unplanned downtime at the equipment level.

On the drive side, variable frequency drives such as the ABB ACS880 Series or Siemens SINAMICS G120 can be configured to respond dynamically to vibration feedback, adjusting motor speed to maintain optimal operating efficiency rather than running at fixed setpoints. When the 330903-00-12-05-02-CN detects shaft displacement trending toward alarm thresholds, the control system can automatically reduce load or trigger a controlled deceleration — preventing the energy spike associated with emergency shutdowns and mechanical failures.

For power quality and operating load tracking, the transducer system integrates with Schneider Electric PowerLogic ION7650 power meters or equivalent condition monitoring hardware, providing a complete picture of how mechanical condition correlates with electrical energy draw. I/O expansion modules such as the Bently Nevada 3500/20 Rack Interface Module ensure that all measurement data is time-stamped and synchronized across the monitoring network, supporting both real-time alarming and long-term energy trend analysis.

HMI visualization through platforms such as the Siemens SIMATIC HMI TP1200 Comfort or Rockwell Automation PanelView Plus 7 allows maintenance engineers to view live vibration waterfall plots alongside operating load dashboards — making it straightforward to correlate a rise in shaft vibration amplitude with an increase in motor current draw, and to schedule corrective maintenance before the inefficiency compounds into a costly failure event.

Maintenance and Replacement Notes

In a typical continuous-process facility — such as a petrochemical plant, power generation station, or large-scale water treatment facility — rotating equipment such as centrifugal pumps, compressors, and turbines can account for 60–70% of total electrical operating load. Even a 5% improvement in the mechanical efficiency of these assets translates directly into significant reductions in energy cost and carbon output.

The Bently Nevada 330903-00-12-05-02-CN proximity transducer contributes to this efficiency improvement in several concrete ways. First, by providing continuous shaft position monitoring, it enables operators to detect rotor imbalance and misalignment conditions that force the motor to draw abnormal load to maintain speed against increased mechanical resistance. Correcting these conditions — guided by the transducer’s precise displacement data — can help restore stable operation when a compatible replacement is required.

Second, the transducer supports optimized production line pacing. When vibration data confirms that a machine is operating well within its mechanical limits, operators can confidently increase throughput without risking equipment damage. Conversely, when the 330903-00-12-05-02-CN signals elevated vibration levels, the control system can reduce line speed proactively — avoiding the energy-intensive recovery process that follows an unplanned shutdown and restart cycle.

Third, predictive maintenance scheduling driven by transducer data eliminates the unplanned downtime associated with over-maintenance. Replacing bearings or seals based on actual condition data rather than fixed time intervals means that machines are not taken offline unnecessarily, and that replacement parts are not consumed before their useful life is exhausted. This directly reduces the embodied energy cost of spare parts consumption and the energy overhead of maintenance-related production interruptions.

All units of the 330903-00-12-05-02-CN supplied by ZYPLC are subject to full functional testing prior to shipment, including signal output verification, insulation resistance testing, and sensitivity calibration checks. Each unit is covered by a warranty terms confirmed during quotation, and ZYPLC maintains ready stock to support urgent replacement requirements with minimal lead time — ensuring that your production line returns to optimized operation as quickly as possible.

Product Sourcing FAQ

Q1: How does the 330903-00-12-05-02-CN contribute to measurable operational stability in a rotating equipment application?
By providing continuous, high-resolution shaft displacement data, this proximity transducer enables early detection of mechanical faults — such as rotor imbalance, bearing wear, and misalignment — that cause motors and drives to consume excess energy. Addressing these faults promptly, guided by accurate transducer data, typically reduces per-machine operating load by 3–10% and eliminates the energy cost of unplanned shutdown and restart cycles.

Q2: Is the 330903-00-12-05-02-CN compatible with existing Bently Nevada 3500 Series monitoring racks and third-party DCS platforms?
Yes. The 330903-00-12-05-02-CN is designed for use with the Bently Nevada 3300 XL 8mm Driver and is fully compatible with the 3500 Series monitoring rack infrastructure. The 3500 rack communicates via Modbus TCP, OPC-UA, and other standard industrial protocols, making it straightforward to integrate vibration data into Honeywell Experion, Emerson DeltaV, Siemens PCS 7, and other major DCS platforms.

Q3: What is the recommended replacement procedure, and can ZYPLC support urgent in-field replacements?
Replacement of the 330903-00-12-05-02-CN follows standard Bently Nevada 3300 Series installation procedures: de-energize the driver, remove the existing probe and extension cable assembly, install the replacement transducer to the specified gap distance (typically 1.0 mm for mid-range calibration), and verify output voltage before returning the machine to service. ZYPLC maintains ready inventory of this part and can support expedited shipment for urgent replacement requirements, minimizing production downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
Every 330903-00-12-05-02-CN unit supplied by ZYPLC undergoes pre-shipment functional testing including signal output verification across the full measurement range, sensitivity calibration confirmation, and insulation resistance testing. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. ZYPLC’s technical team is available to support installation verification and troubleshooting throughout the warranty period.
