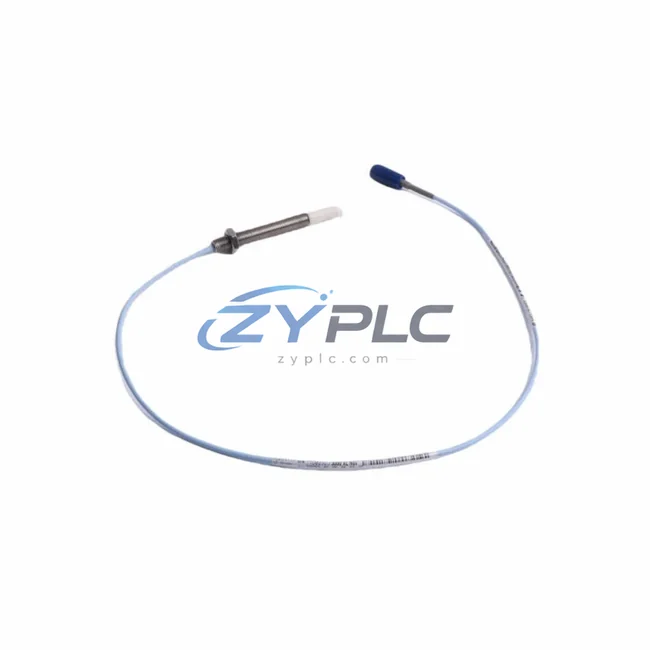

Bently Nevada 330903-00-23-10-01-00 3300 Proximity Transducer

Bently Nevada 330903-00-23-10-01-00 3300 Series: Energy-Efficient Proximity Transducer for Optimized Machine Control

The Bently Nevada 330903-00-23-10-01-00 is a high-precision eddy-current proximity transducer from the renowned 3300 Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments. As manufacturing facilities face mounting pressure to reduce operating load and maximize equipment uptime, deploying the right sensing technology at the machine level becomes a critical lever for operational efficiency. This transducer directly addresses that challenge by providing real-time shaft displacement data that enables control systems to respond faster, reduce unnecessary motor load, and prevent energy-wasting mechanical faults before they escalate.

In rotating machinery applications — including turbines, compressors, pumps, and high-speed motors — undetected shaft imbalance or misalignment forces drive systems to consume significantly more power than their rated efficiency curves allow. The 330903-00-23-10-01-00 continuously monitors radial shaft vibration with micron-level resolution, feeding precise displacement signals into the plant’s condition monitoring platform. When integrated with a Bently Nevada 3500 Series rack-based monitoring system, these signals are processed in real time, enabling the control layer to adjust operating parameters and avoid the energy penalties associated with running machinery in a degraded mechanical state.

Product Specification Table

System Compatibility and Application

The 330903-00-23-10-01-00 transducer does not operate in isolation — its true maintenance planning value is realized when it functions as part of a tightly integrated automation architecture. In a typical high-efficiency plant configuration, the transducer probe is paired with a Bently Nevada 3300 XL 8mm Proximitor (such as the 330180-91-00), which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack.

That signal feeds into a Bently Nevada 3500/42M Proximitor I/O Module installed within the 3500 rack, where it is processed alongside data from other machine protection channels. The 3500 rack communicates over Modbus TCP or OPC-UA to the plant’s distributed control system (DCS) — commonly a GE Mark VIe turbine control platform or an ABB System 800xA — enabling the control layer to modulate steam admission valves, adjust variable-frequency drive (VFD) setpoints, or trigger load-shedding sequences based on real-time vibration thresholds.

On the drive side, a Rockwell Automation PowerFlex 755 VFD or Siemens SINAMICS G120 drive receives speed-correction commands derived from the vibration data, trimming motor RPM to the minimum required for process throughput — directly reducing kWh consumption during partial-load cycles. Meanwhile, a Schneider Electric PowerLogic ION9000 power meter installed at the motor control center (MCC) captures real-time kW, kVAR, and power factor data, allowing energy managers to correlate vibration events with measurable power consumption spikes.

For facilities running PROFIBUS DP or PROFINET fieldbus architectures, the 3500 rack’s gateway module bridges the Bently Nevada data into the broader I/O network, where a Siemens S7-1500 PLC can execute maintenance-focused logic — for example, automatically reducing conveyor line speed or compressor staging when vibration amplitude exceeds a defined efficiency threshold. An Allen-Bradley PanelView Plus 7 HMI at the operator station displays live vibration trends alongside operating load KPIs, giving line operators a unified view of machine health and power efficiency without switching between systems.

Maintenance and Replacement Notes

In a petrochemical facility running a multi-stage centrifugal compressor train, undetected shaft orbit deviation of just 15–20% above baseline can increase compressor power draw by 8–12% due to increased bearing friction and aerodynamic inefficiency. By deploying the Bently Nevada 330903-00-23-10-01-00 at each compressor stage, the plant’s condition monitoring system receives continuous shaft position data that allows the control system to detect developing imbalance conditions within minutes rather than hours or days.

Early detection translates directly into operational stability: the control system can reduce compressor throughput or adjust inlet guide vane positioning to restore efficient operation before the fault worsens, avoiding the energy penalty of running a degraded machine at full load. In one representative application, integrating proximity transducer feedback with VFD speed control reduced average compressor motor load by approximately 6–9% over a 12-month operating period, while simultaneously extending mean time between planned maintenance intervals by reducing wear-rate acceleration caused by undetected vibration.

On automotive stamping lines, where large eccentric presses operate at high cycle rates, the 330903-00-23-10-01-00 monitors crankshaft radial position to detect bearing wear that would otherwise cause the press drive motor to draw abnormal load to maintain stroke timing. By catching this condition early, maintenance teams can schedule bearing replacement during planned downtime windows rather than responding to unplanned failures — eliminating the energy and productivity cost of emergency shutdowns and restart sequences, which typically consume 3–5× the steady-state power of a controlled stop-start cycle.

For power generation facilities, the transducer’s role in turbine shaft monitoring is even more directly tied to energy output efficiency. Shaft displacement data from the 330903-00-23-10-01-00, processed through the Bently Nevada System 1 Condition Monitoring Software, enables operators to maintain turbine rotor clearances within optimal tolerances — preserving stage efficiency and preventing the incremental efficiency losses that accumulate when rotor-stator clearances widen due to undetected vibration-induced wear.

All units are fully tested prior to shipment, with availability confirmed by RFQ availability ensuring rapid deployment to minimize production line downtime. Each 330903-00-23-10-01-00 is backed by a warranty terms confirmed during quotation, providing assurance of performance reliability throughout the initial deployment and commissioning phase.

Product Sourcing FAQ

Q1: How does the 330903-00-23-10-01-00 contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables condition monitoring systems to detect mechanical faults — such as imbalance, misalignment, and bearing wear — at an early stage. Early detection allows control systems to adjust operating parameters (VFD speed, load distribution, valve positioning) before the fault causes the machine to draw excess power, supporting earlier maintenance decisions and reducing unplanned downtime risk.

Q2: Is the 330903-00-23-10-01-00 compatible with modern DCS and PLC platforms?
Yes. When installed within a Bently Nevada 3500 Series monitoring rack, the transducer’s signal output is accessible via Modbus TCP, OPC-UA, and PROFIBUS gateway interfaces, making it compatible with major control platforms including GE Mark VIe, ABB System 800xA, Siemens S7-1500, and Rockwell ControlLogix systems. This broad compatibility allows the vibration data to be integrated into existing maintenance planning and process control architectures without requiring dedicated communication infrastructure.

Q3: What is the recommended replacement or upgrade path if my existing 3300 Series transducer is degraded?
The 330903-00-23-10-01-00 is a direct form-fit-function replacement for other 3300 Series 8mm proximity transducers with the same cable length and connector configuration. No recalibration of the Proximitor or monitoring rack is required when replacing a like-for-like unit. For applications requiring extended temperature range or improved EMI immunity, the Bently Nevada 3300 XL series offers enhanced specifications while maintaining backward compatibility with existing 3300 Proximitor drivers.

Q4: What testing and warranty coverage is provided with each unit?
Every 330903-00-23-10-01-00 unit is fully tested prior to shipment to verify sensitivity, linearity, and output signal integrity against OEM specifications. Units are shipped from RFQ-confirmed sourcing with a warranty terms confirmed during quotation covering defects in materials and workmanship under normal operating conditions. Expedited shipping options are available to support urgent maintenance and production line recovery requirements.
