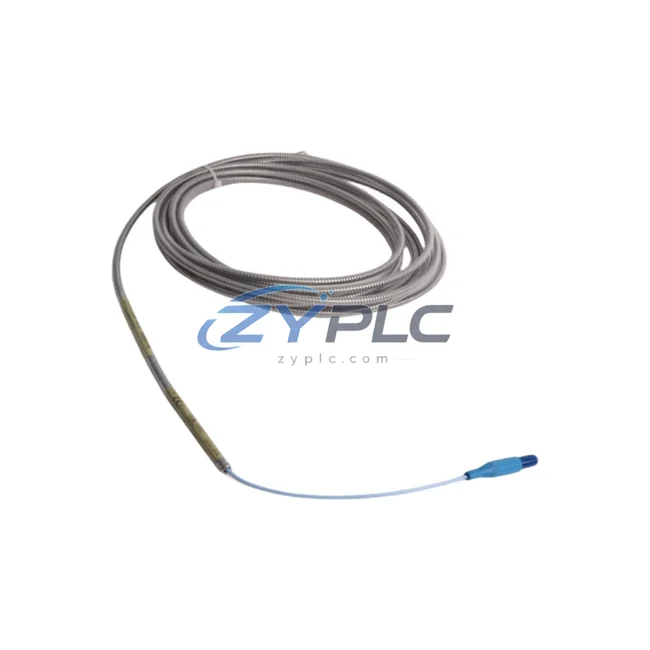

Bently Nevada 330904-08-15-10-02-05 Proximity Transducer

Bently Nevada 330904-08-15-10-02-05 Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

The Bently Nevada 330904-08-15-10-02-05 is an eddy-current proximity transducer engineered for the Bently Nevada 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this transducer plays a foundational role — delivering continuous, non-contact shaft displacement measurements that allow control systems to respond in real time, preventing unplanned downtime caused by mechanical imbalance, misalignment, and unplanned downtime.

Unlike passive sensing components, the 330904-08-15-10-02-05 actively contributes to industrial automation system. By feeding precise radial vibration data into the 3300 Series monitor rack, it enables plant engineers to correlate shaft behavior with motor load profiles, identify inefficient operating windows, and schedule maintenance before catastrophic failure drives up operating load and repair costs.

Product Specification Table

System Compatibility and Application

The 330904-08-15-10-02-05 does not operate in isolation — it is the sensing front-end of a tightly integrated maintenance planning loop. In a typical high-efficiency plant configuration, this transducer is mounted radially on a rotating shaft and wired back to a Bently Nevada 3300/16 Monitor or a 3300/20 Proximitor Monitor, which processes the raw gap voltage signal into calibrated displacement readings in real time.

Those displacement readings are then passed downstream to a Bently Nevada 3500 Series Rack — the plant’s primary machinery protection system — where they are compared against alarm and danger setpoints. When vibration trends upward due to bearing wear or rotor imbalance, the 3500 rack can trigger a controlled shutdown via hardwired relay outputs, preventing the kind of catastrophic failure that forces motors and drives to restart under full load — one of the most energy-intensive events in any production cycle.

On the drive side, the vibration data captured by the 330904-08-15-10-02-05 is increasingly used to inform variable frequency drive (VFD) setpoint adjustments. When shaft displacement indicates that a pump or fan is operating outside its best efficiency point (BEP), the control system — often a Siemens S7-1500 PLC or an Allen-Bradley ControlLogix — can command the VFD to reduce motor speed, trimming operating load without sacrificing process output. This closed-loop interaction between vibration sensing and drive control is at the heart of modern energy-efficient automation.

For facilities running Profibus DP or FOUNDATION Fieldbus communication backbones, the 3300 Series monitor outputs integrate cleanly with distributed control systems, allowing the 330904-08-15-10-02-05’s data to appear on HMI panels and historian databases alongside power meter readings from Schneider Electric PowerLogic or ABB M2M energy meters. This unified view of mechanical health and electrical consumption is what enables true energy KPI tracking at the asset level.

I/O modules such as the Bently Nevada 3300/10 I/O Module extend the system’s reach, allowing multiple transducers — including companion 330905 extension cables and 330180 Proximitor sensors — to feed into a single monitoring rack without signal degradation. The result is a dense, low-power sensing network that covers an entire rotating machinery train from a single cabinet.

Maintenance and Replacement Notes

Consider a petrochemical plant running a multi-stage centrifugal compressor train. Without continuous shaft monitoring, operators rely on periodic manual checks or lagging indicators like temperature rise and current draw to detect developing faults. By the time these indicators trigger, the compressor may already be running 8–12% outside its design efficiency curve — consuming excess power for every hour of operation.

With the 330904-08-15-10-02-05 installed at each bearing journal and connected to the 3300 Series rack, the plant gains sub-millisecond vibration data that reveals developing faults weeks before they affect performance. Maintenance teams can schedule bearing replacements during planned shutdowns rather than emergency stops, eliminating the energy penalty of cold restarts and the productivity loss of unplanned downtime.

In motor-driven pump applications, the transducer’s displacement data is used to detect cavitation and impeller wear — both of which force the motor to draw more current to maintain flow. By catching these conditions early and adjusting VFD speed or scheduling impeller replacement, facilities routinely report 5–15% reductions in pump system operating load over a 12-month period.

On automated assembly lines where conveyor and spindle motors run continuously, the 330904-08-15-10-02-05 contributes to production rhythm optimization. Consistent shaft health data means fewer micro-stoppages caused by vibration-induced sensor faults or mechanical looseness, keeping line OEE (Overall Equipment Effectiveness) high and operating load per unit produced low.

Every unit shipped from ZYPLC undergoes full functional testing — gap sensitivity verification, output linearity check, and cable continuity test — before dispatch. Stock is maintained for fast shipment, and each 330904-08-15-10-02-05 is covered by a warranty terms confirmed during quotation, giving procurement and maintenance teams confidence in both delivery timelines and long-term reliability.

Product Sourcing FAQ

Q1: How does the 330904-08-15-10-02-05 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables control systems to detect mechanical inefficiencies — such as rotor imbalance, misalignment, and bearing wear — before they escalate into energy-wasting fault conditions. Early detection allows corrective action during planned maintenance windows, avoiding the high energy cost of emergency shutdowns and cold restarts.

Q2: Is the 330904-08-15-10-02-05 compatible with modern DCS and PLC platforms?
Yes. The transducer interfaces with the Bently Nevada 3300 Series monitor, which provides standard 4–20 mA analog outputs and supports integration with Profibus, Modbus, and FOUNDATION Fieldbus networks. This makes it compatible with major DCS platforms including Emerson DeltaV, Honeywell Experion, and Yokogawa CENTUM, as well as PLC systems from Siemens and Rockwell Automation.

Q3: Can this transducer replace an existing 330900 or 330903 series probe in my current 3300 rack?
The 330904 series uses the same 8 mm eddy-current tip standard as the 330900 and 330903 families and is electrically compatible with 3300 Series Proximitor monitors. However, cable length and connector configurations differ between part numbers — always verify the full SKU (330904-08-15-10-02-05) against your rack’s channel configuration and extension cable length before substitution. Our technical team can assist with cross-reference verification.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330904-08-15-10-02-05 unit is tested for gap sensitivity, output voltage linearity, and cable integrity before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failure under normal operating conditions. Units are shipped with test documentation available on request. For replacement or warranty claims, contact our team directly.
