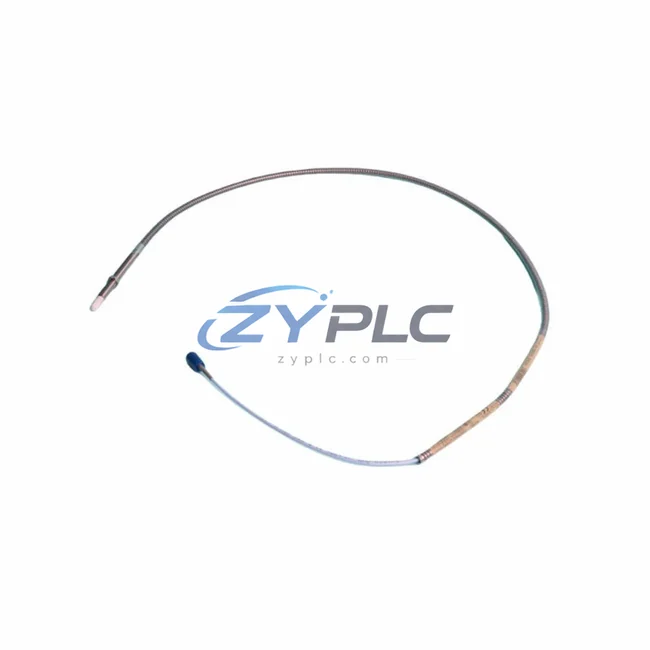

Bently Nevada 330910-00-11-05-01-00 Proximity Transducer 3300

Bently Nevada 330910-00-11-05-01-00 Proximity Transducer 3300: Compatibility and Replacement Notes

The Bently Nevada 330910-00-11-05-01-00 is a precision eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 Series machinery protection and condition monitoring architecture. Unlike standalone sensing devices, this transducer is designed as a system-compatible component — its electrical characteristics, cable length compensation, and signal output are factory-calibrated to operate in direct coordination with the 3300 Series monitor rack, signal conditioning modules, and plant-level data acquisition infrastructure. In rotating machinery protection systems deployed across power generation, petrochemical processing, water treatment, and heavy manufacturing, the 330910-00-11-05-01-00 serves as the primary sensing element at the field layer, feeding real-time radial vibration and position data upward through the control hierarchy to protection logic, historian systems, and operator HMI displays.

The transducer’s role within a layered automation architecture begins at the mechanical interface. Mounted in proximity to a rotating shaft or target surface, it converts mechanical displacement into a proportional DC voltage signal, which is then routed through the matched extension cable and proximitor/driver to the 3300 Series monitor. This signal chain is not isolated — it is part of a tightly coupled measurement loop where cable length, target material, and gap voltage must all be coordinated to maintain calibration accuracy across the full operating temperature range. Engineers specifying this transducer for a new installation or replacement must account for its position within the complete signal path, from the probe tip through to the monitor’s relay output and ultimately to the plant DCS or safety instrumented system.

Within the broader control system, the 330910-00-11-05-01-00 contributes to system consistency by providing a standardized, repeatable measurement baseline that protection monitors can act upon with confidence. When paired with the 3300/16-channel monitor, the 3300/55 proximitor, or the 3500 Series rack for higher-channel-count applications, the transducer enables alert and danger setpoint logic to function with minimal signal noise and maximum repeatability. This consistency is critical in redundant protection architectures, where dual-voting or two-out-of-three (2oo3) logic depends on matched sensor outputs to avoid spurious trips or missed danger conditions.

Product Specification Table

System Compatibility Notes

The 330910-00-11-05-01-00 proximity transducer achieves its full protective value only when integrated within a coordinated system architecture. At the monitor layer, the Bently Nevada 3300/16 monitor receives the transducer’s analog output and applies configurable alert and danger setpoints, relay outputs, and buffered output signals for external data acquisition. The 3300/55 proximitor (or equivalent driver module) provides the regulated –24 VDC excitation and performs initial signal conditioning before the signal reaches the monitor chassis. For installations requiring higher channel density or integrated machinery diagnostics, the Bently Nevada 3500 Series rack offers a compatible upgrade path, accepting the same transducer family with appropriate driver modules.

At the power layer, the 3300 Series power supply module ensures stable DC distribution across the monitor rack, preventing voltage fluctuation from introducing measurement error into the transducer signal chain. In redundant architectures, dual power supply configurations are recommended to maintain continuous monitoring during maintenance or supply failure events. The 3300/20-20 monitor supports dual-channel configurations that allow two transducers to be monitored simultaneously, enabling X-Y vibration vector analysis for shaft orbit plotting — a critical diagnostic capability in turbomachinery protection systems.

At the network and integration layer, the monitor rack communicates with plant-level systems via Modbus RTU, Modbus TCP/IP, or OPC-DA/UA gateway modules, allowing vibration data from the 330910-00-11-05-01-00 to be transmitted to the plant DCS, condition monitoring software, or safety instrumented system (SIS). In facilities using System 1 Evolution software for machinery diagnostics, the transducer’s buffered output feeds continuous waveform data to the historian for trend analysis, alarm management, and predictive maintenance scheduling. At the HMI layer, operators view real-time vibration trends, gap voltage readings, and alarm states through dedicated machinery protection displays integrated with the plant SCADA or DCS operator workstation.

For installations requiring terminal block wiring flexibility, Bently Nevada junction boxes and field wiring termination panels provide organized cable management between the transducer, extension cable, and monitor rack. In applications where the transducer is installed in hazardous areas, appropriate intrinsic safety barriers or Zener barriers must be inserted in the signal path to maintain area classification compliance while preserving signal integrity.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 330910-00-11-05-01-00 is mounted at the journal bearing locations to monitor radial shaft vibration continuously. The transducer feeds the 3300 Series monitor, which initiates automatic shutdown sequences if vibration exceeds danger setpoints — protecting turbine blades, bearings, and seals from catastrophic damage. Combined with axial position transducers and speed sensors, the system provides a complete turbine protection suite aligned with API 670 machinery protection standards.

Petrochemical and Refinery Processing: Centrifugal compressors and process pumps in refinery service operate continuously under varying load conditions. The 330910-00-11-05-01-00 provides the real-time shaft position and vibration data required to detect rotor instability, surge precursors, and bearing wear before they escalate to unplanned shutdowns. Integration with the plant SIS allows automatic compressor trip logic to be executed within milliseconds of a danger condition being detected.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from continuous vibration monitoring to extend bearing life and reduce maintenance costs. The 330910-00-11-05-01-00, installed in the pump bearing housing, provides early warning of imbalance, misalignment, and mechanical looseness — enabling condition-based maintenance scheduling rather than time-based overhaul intervals.

Mining and Mineral Processing: Ball mills, SAG mills, and large conveyor drive motors in mining operations are subject to high vibration environments. The 330910-00-11-05-01-00’s robust construction and wide operating temperature range make it suitable for these demanding applications, where early detection of drive train anomalies can prevent multi-day production outages.

Packaging and Discrete Manufacturing: High-speed rotating equipment in packaging lines — including centrifugal fans, gearboxes, and motor-driven spindles — can be monitored using the 330910-00-11-05-01-00 as part of a compact 3300 Series protection system. Integration with the plant PLC or DCS via analog input cards allows vibration alarm states to be incorporated into the machine’s safety interlock logic.

Product Compatibility FAQ

Q1: Is the 330910-00-11-05-01-00 directly compatible with the Bently Nevada 3500 Series monitor rack, or is it limited to the 3300 Series?
The 330910-00-11-05-01-00 is natively calibrated for the Bently Nevada 3300 Series architecture. It can be used with the 3500 Series rack when paired with the appropriate 3500/42 proximitor power supply and signal conditioning module, provided the total system cable length and target material corrections are verified against the 3500 Series calibration tables. Engineers should confirm system compatibility by reviewing the Bently Nevada TN-13 technical note on transducer system calibration before finalizing the installation design.

Q2: What are the key installation and commissioning considerations for maintaining long-term measurement accuracy in a redundant protection architecture?
Long-term measurement accuracy depends on three factors: correct gap voltage setting at commissioning (typically –10.0 VDC ±0.5 V for standard steel targets), matched extension cable length between the probe and proximitor, and periodic gap voltage verification during planned maintenance outages. In redundant 2oo3 voting architectures, all three transducer channels must be individually calibrated and verified to ensure consistent setpoint response. The warranty terms confirmed during quotation covers manufacturing defects and factory calibration integrity, but field calibration verification remains the responsibility of the site maintenance team.

Q3: How does the warranty terms confirmed during quotation apply to this transducer, and what support is available for system integration into existing plant control systems?
The warranty terms confirmed during quotation covers the 330910-00-11-05-01-00 against manufacturing defects and verifiable performance deviations from factory specifications. system integration support is available to assist engineers in mapping the transducer’s analog output to existing DCS analog input cards, configuring Modbus gateway parameters for monitor rack communication, and verifying signal scaling within System 1 Evolution or third-party condition monitoring platforms. For integration planning, system architecture review, or replacement part sourcing, contact the ZYPLC technical team directly.
