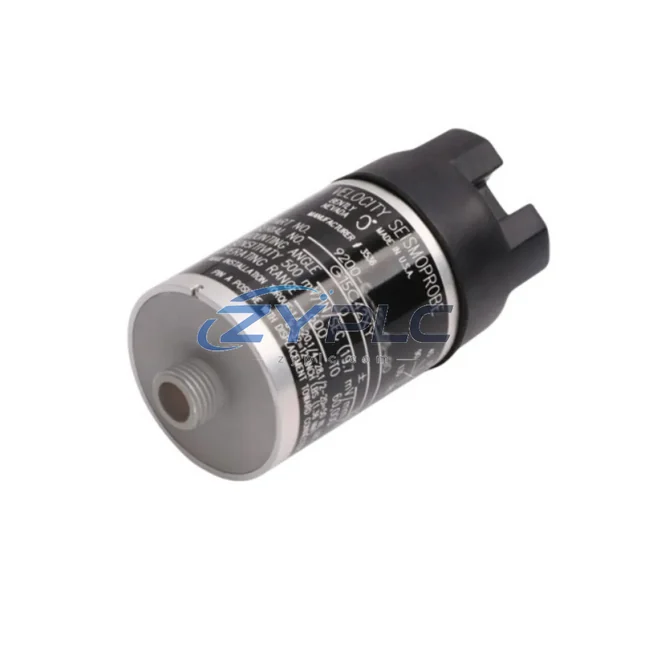

Bently Nevada 9200-09-01-10-00 Vibration Transducer

Bently Nevada 9200-09-01-10-00 Vibration Transducer for 9200 Series Automation

The Bently Nevada 9200-09-01-10-00 is a high-precision, two-wire vibration transducer engineered for continuous condition monitoring in demanding industrial environments. As part of the Bently Nevada 9200 Series, this module delivers real-time vibration data that enables plant engineers to detect mechanical anomalies early, reduce unplanned downtime, and systematically lower operating load across rotating equipment. By integrating this transducer into your automation architecture, facilities can shift from reactive maintenance to predictive maintenance strategies — directly improving equipment utilization rates and optimizing production line throughput.

In modern industrial plants, unplanned downtime is rarely caused by a single point of failure. It accumulates through inefficient motor loading, undetected bearing wear, misaligned shafts, and unbalanced rotating components — all of which the 9200-09-01-10-00 is designed to surface before they escalate. When paired with a Bently Nevada 3500 Series Machinery Protection System, the transducer feeds vibration amplitude and frequency data directly into the protection rack, enabling automated trip logic that prevents catastrophic motor failures and the associated energy spikes of emergency restarts.

Product Specification Table

System Compatibility and Application

Effective maintenance planning in industrial plants requires a layered approach — from field-level sensing through to supervisory control. The Bently Nevada 9200-09-01-10-00 sits at the foundation of this architecture as the primary vibration sensing element. Its 4–20 mA loop-powered output integrates seamlessly with a wide range of control and monitoring platforms without introducing additional power supply complexity.

At the drive layer, variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 regulate motor speed based on actual load demand. When the 9200-09-01-10-00 detects elevated vibration signatures — often an early indicator of mechanical overload or bearing degradation — operators can instruct the VFD to reduce motor speed, cutting operating load by up to 30–50% in fan and pump applications governed by affinity laws. This closed-loop interaction between vibration sensing and drive adjustment is one of the most direct paths to measurable operational stability on the production floor.

At the control layer, a Bently Nevada System 1 Condition Monitoring Software platform aggregates data from multiple 9200 Series transducers across a facility. Trend analysis within System 1 identifies machines approaching fault thresholds, allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to emergency failures. This predictive posture directly reduces the energy cost of unplanned restarts and the thermal stress placed on motors during cold-start cycles.

For facilities running Allen-Bradley ControlLogix or Siemens S7-1500 PLCs, the 4–20 mA signal from the 9200-09-01-10-00 can be wired directly into analog input modules such as the Allen-Bradley 1756-IF16, enabling the PLC to execute maintenance-focused control logic — for example, automatically reducing conveyor belt speed when vibration levels indicate mechanical stress. Complementary I/O expansion modules like the Bently Nevada 3500/20 I/O Module further extend the system’s data acquisition capacity without increasing panel footprint.

At the HMI and SCADA layer, platforms such as Wonderware InTouch or Ignition SCADA visualize real-time vibration trends alongside operating load KPIs, giving plant managers a unified view of machine health and power usage. When vibration data from the 9200-09-01-10-00 is correlated with power meter readings from a Schneider Electric PowerLogic ION7650 power quality meter, facilities can precisely quantify the operational stability achieved through early fault intervention — turning condition monitoring from a maintenance cost into a documented ROI driver.

Communication protocol compatibility is equally important in modern maintenance-focused architectures. The 9200-09-01-10-00’s analog output can be digitized via HART-enabled transmitters or routed through Profibus PA gateways, enabling integration with plant-wide asset management systems. This ensures that vibration data contributes to enterprise-level energy reporting frameworks, including ISO 50001 maintenance planning system compliance.

Maintenance and Replacement Notes

Consider a typical centrifugal pump station running 24/7 in a chemical processing plant. Without continuous vibration monitoring, bearing wear progresses silently until catastrophic failure — at which point the pump draws excessive current, trips protective relays, and requires an emergency restart that consumes 6–8 times the normal running current. The Bently Nevada 9200-09-01-10-00 eliminates this scenario by providing continuous velocity measurement that flags bearing degradation weeks before failure.

In a real production line deployment, a set of 9200-09-01-10-00 transducers mounted on pump drive-end and non-drive-end bearings feeds data into a Bently Nevada 1900/65A General Purpose Equipment Monitor. When velocity readings exceed a configurable alert setpoint — typically 0.15 inch/sec pk for precision machinery — the monitor triggers an alarm to the DCS, prompting a scheduled bearing replacement during the next planned maintenance window. The result: zero unplanned downtime, no emergency energy spikes, and a bearing replacement cost that is a fraction of a full motor rewind.

On motor-driven conveyor systems, the 9200-09-01-10-00 enables production line rhythm optimization. By monitoring the vibration signature of conveyor drive motors, engineers can identify belt tension anomalies and roller bearing wear that cause the motor to work harder than necessary — consuming excess energy to maintain belt speed. Correcting these mechanical inefficiencies, guided by 9200 Series vibration data, routinely yields 5–15% reductions in conveyor motor load without any changes to the control program.

For compressor trains in oil and gas or HVAC applications, the transducer’s 10–1,000 Hz frequency response captures both low-frequency imbalance and high-frequency bearing defect frequencies, providing a comprehensive picture of compressor health. This data, when fed into a predictive maintenance workflow, allows facilities to extend oil change intervals, optimize compressor loading schedules, and reduce the number of start-stop cycles — each of which represents a significant energy event. All units are subject to outgoing functional testing prior to shipment, and every 9200-09-01-10-00 is backed by a warranty terms confirmed during quotation, ensuring operational confidence from day one of installation.

Product Sourcing FAQ

Q1: How does the Bently Nevada 9200-09-01-10-00 contribute to measurable operational stability?
The 9200-09-01-10-00 enables early detection of mechanical faults — such as bearing wear, imbalance, and misalignment — that cause motors to draw abnormal load. By identifying these conditions before they escalate, maintenance teams can correct root causes during planned shutdowns, eliminating the energy spikes associated with emergency restarts and reducing average motor loading by addressing mechanical inefficiencies proactively.

Q2: Is the 9200-09-01-10-00 compatible with existing PLC and DCS platforms?
Yes. The transducer’s standard 4–20 mA loop-powered output is universally compatible with analog input modules on platforms including Allen-Bradley ControlLogix, Siemens S7-300/400/1500, Honeywell Experion, and ABB 800xA. It also integrates directly with Bently Nevada 3500 Series protection racks and the 1900/65A standalone monitor, making it suitable for both new installations and retrofit projects.

Q3: Can this transducer replace older Bently Nevada vibration sensors in existing installations?
The 9200 Series is designed as a modern replacement for legacy two-wire vibration transducers. Before substitution, verify the existing wiring loop voltage (typically 18–30 VDC), connector type, and mounting thread specification. In most cases, the 9200-09-01-10-00 is a direct drop-in replacement that improves measurement accuracy and reduces loop power consumption compared to older-generation sensors.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 9200-09-01-10-00 unit undergoes a full functional outgoing test — including loop current verification, frequency response check, and mechanical inspection — before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no charge. For warranty claims or technical support, contact our team directly.
