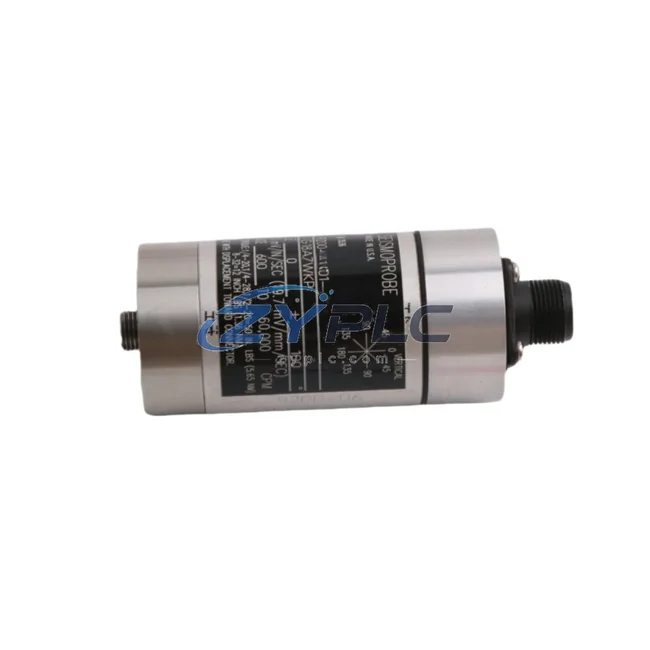

Bently Nevada 9200-09-05-10-00 Vibration Transducer

Bently Nevada 9200-09-05-10-00 Vibration Transducer for 9200 Series Automation

The Bently Nevada 9200-09-05-10-00 is a high-precision, two-wire vibration transducer engineered for continuous machinery protection in energy-intensive industrial environments. As part of the proven 9200 Series platform, this module delivers real-time vibration signal acquisition from rotating equipment — enabling plant engineers to detect mechanical anomalies early, reduce unplanned downtime, and systematically lower unplanned downtime caused by imbalanced or degraded machinery.

In modern manufacturing and process industries, undetected vibration anomalies in motors, pumps, compressors, and turbines are among the leading causes of excessive operating load. When a motor bearing begins to fail or a shaft becomes misaligned, the drive system compensates by drawing more current — silently inflating energy costs before any visible fault appears. The 9200-09-05-10-00 addresses this at the source by providing continuous, high-fidelity vibration data that feeds directly into condition monitoring systems, allowing control engineers to act before efficiency degrades.

Product Specification Table

System Compatibility and Application

The 9200-09-05-10-00 does not operate in isolation — its true value is realized when integrated into a layered industrial automation architecture designed for energy efficiency. In a typical deployment, the transducer mounts directly on the motor or gearbox housing and feeds its 4–20 mA vibration signal into a Bently Nevada 3500/42M Proximitor/Seismic Monitor, which processes the signal and triggers alarms or shutdowns when vibration thresholds are exceeded. This prevents the motor from continuing to run in a degraded state — a condition that can increase operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

At the drive level, the vibration data from the 9200-09-05-10-00 can be correlated with output from a Rockwell Automation PowerFlex 755 variable frequency drive or a Siemens SINAMICS G120 drive. When vibration trends indicate resonance or imbalance, the drive’s speed reference can be adjusted automatically to reduce mechanical stress and optimize energy draw. This closed-loop interaction between the transducer and the drive system is a cornerstone of maintenance-focused motor control.

For data aggregation and visualization, the 9200-09-05-10-00 integrates with Bently Nevada System 1 software via a Bently Nevada 3500/05 System Rack, which consolidates vibration, temperature, and process data across multiple measurement points. Operators can monitor real-time operating load trends alongside vibration signatures, identifying which machines are consuming disproportionate power relative to their mechanical condition. This data is further enriched when paired with a Schneider Electric PowerLogic ION7650 power meter or equivalent condition monitoring device, enabling a direct correlation between vibration health and electrical operating load at the machine level.

At the I/O and control layer, the transducer’s analog output integrates cleanly with a Siemens S7-1500 PLC or Allen-Bradley ControlLogix L8x controller via standard analog input modules. The PLC can execute maintenance planning logic — for example, reducing conveyor speed or pump output during low-demand periods when vibration data confirms stable mechanical conditions. Communication to the SCADA or MES layer is handled via PROFINET, EtherNet/IP, or Modbus TCP, depending on the plant’s communication architecture. An Allen-Bradley PanelView Plus 7 HMI or Siemens SIMATIC HMI TP1500 Comfort panel provides operators with a real-time dashboard of vibration trends, energy KPIs, and maintenance alerts — all from a single interface.

Maintenance and Replacement Notes

In a continuous process plant — such as a petrochemical facility, paper mill, or automotive stamping line — the 9200-09-05-10-00 contributes to maintenance planning through three primary mechanisms: early fault detection, drive coordination, and predictive maintenance scheduling.

First, by detecting bearing wear, shaft misalignment, or rotor imbalance at the earliest stage, the transducer prevents the motor from operating in a high-vibration, high-current state. A motor running with a failing bearing can draw 10–25% more current than a healthy motor at the same load. Identifying and correcting this condition early — guided by the 9200-09-05-10-00’s continuous vibration data — directly reduces operating load and extends motor life.

Second, in variable-speed applications, the vibration signal from the 9200-09-05-10-00 can inform the variable frequency drive’s speed control algorithm. If vibration increases at a specific operating frequency due to mechanical resonance, the drive can automatically skip that frequency band, reducing mechanical stress and the associated energy penalty. This is particularly valuable in pump and fan applications where resonance can cause significant efficiency losses.

Third, the transducer supports predictive maintenance scheduling — replacing reactive, time-based maintenance with condition-based interventions. By scheduling maintenance only when vibration data indicates it is necessary, plants eliminate unnecessary downtime and the energy costs associated with unplanned restarts. Cold-start energy surges, which can be 3–7 times the steady-state current draw, are minimized when equipment is kept in continuous, healthy operation rather than cycled through repeated fault-and-repair events.

Every unit of the 9200-09-05-10-00 supplied by ZYPLC undergoes pre-shipment functional testing to verify signal output accuracy and loop integrity. Stock is maintained for rapid dispatch, and all units are covered by a warranty terms confirmed during quotation from the date of shipment — ensuring that your maintenance planning investment is protected from day one.

Product Sourcing FAQ

Q1: How does the 9200-09-05-10-00 contribute to measurable operational stability on the production line?
By providing continuous vibration monitoring of rotating machinery, the 9200-09-05-10-00 enables early detection of mechanical faults that cause motors and drives to consume excess energy. Correcting these faults promptly — guided by real-time vibration data — can help restore stable operation when a compatible replacement is required.

Q2: Is the 9200-09-05-10-00 compatible with existing Bently Nevada monitoring racks and third-party PLC systems?
Yes. The 9200-09-05-10-00 outputs a standard 4–20 mA signal, making it compatible with Bently Nevada 3500 Series monitoring racks as well as any PLC or DCS analog input module that accepts this signal format — including Siemens S7-1500, Allen-Bradley ControlLogix, and Schneider Electric Modicon M340 platforms.

Q3: What is the recommended replacement or upgrade path for legacy vibration transducers in the 9200 Series?
The 9200-09-05-10-00 is a direct replacement for earlier 9200 Series transducer variants. For applications requiring higher frequency response or digital output, Bently Nevada’s 330500 Series proximity transducers or the 3300 XL 8mm proximity transducer system may be considered as upgrade paths, depending on the machinery type and monitoring system architecture.

Q4: What testing and warranty coverage is provided with each unit?
Each 9200-09-05-10-00 unit supplied by ZYPLC is tested prior to shipment to verify signal output, loop resistance, and mechanical integrity. All units carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team.
