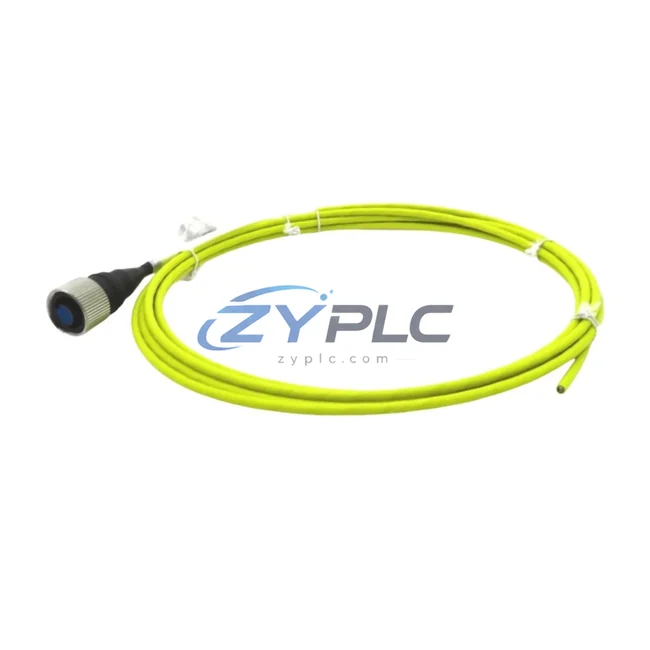

Bently Nevada CB2W100-125 Interconnect Cable for CB2W

Bently Nevada CB2W100-125 Interconnect Cable for CB2W

The Bently Nevada CB2W100-125 is a precision-engineered interconnect cable purpose-built for the CB2W vibration monitoring system architecture. Within a layered industrial automation environment, signal integrity between the transducer layer and the monitoring module layer is foundational to system reliability. The CB2W100-125 fulfills this role by providing a verified, low-noise signal path that preserves the fidelity of vibration, proximity, and dynamic pressure measurements from field-mounted sensors to the processing core of the Bently Nevada 3500 Series rack system.

In modern condition monitoring architectures, the interconnect cable is not a passive component — it is an active contributor to system accuracy. The CB2W100-125 is designed to interface directly with the CB2W junction box, routing signals from proximity probes such as the 3300 XL 8mm or 3300 XL 11mm series into the 3500/40M or 3500/42M monitor modules. This cable eliminates field-wiring variability, reduces installation time, and ensures that every signal arriving at the monitor module meets the electrical specifications required for accurate gap voltage, direct voltage, and dynamic signal measurement.

From a system architecture perspective, the CB2W100-125 operates at the intersection of the field instrumentation layer and the signal conditioning layer. It connects the physical measurement point — the proximity probe and its extension cable — to the junction box, which then routes conditioned signals into the 3500 rack backplane. This architecture supports both simplex and redundant monitoring configurations, making the CB2W100-125 compatible with high-availability plant designs where continuous uptime is non-negotiable.

Engineers specifying rotating machinery protection systems for turbines, compressors, pumps, and generators rely on the CB2W100-125 to maintain consistent signal chain performance across the full operating life of the installation. The cable’s shielding and connector design are matched to the CB2W system’s impedance and grounding requirements, preventing ground loops and electromagnetic interference that could corrupt vibration waveform data or trigger false alarms in the 3500 Series protection logic.

In coordinated system designs, the CB2W100-125 works alongside the 3500/15 Power Supply module, the 3500/20 Rack Interface Module, the 3500/22M Transient Data Interface, and the 3500/92 Communication Gateway to form a complete, integrated monitoring architecture. The communication gateway enables Modbus, Profibus, or OPC-DA/UA data export to the plant DCS or SCADA layer, while the CB2W100-125 ensures that the raw signal data entering the rack is clean and correctly terminated. This end-to-end signal chain integrity is what allows the 3500 system to deliver reliable alarm and trip outputs to the plant safety instrumented system (SIS) or emergency shutdown system (ESD).

For plants operating under API 670 machinery protection standards, the CB2W100-125 is a specified component in the signal chain documentation. Its use ensures that the installed system meets the standard’s requirements for signal path integrity, connector compatibility, and system-level verification. Maintenance engineers benefit from the cable’s standardized connector format, which allows for rapid replacement during scheduled outages without requiring field re-termination or re-calibration of the monitoring system.

Long-term maintenance planning is simplified when the CB2W100-125 is stocked as a critical spare. Its compatibility with the CB2W junction box and the 3500 Series rack means that a single cable type covers a wide range of monitoring channel configurations, reducing spare parts inventory complexity. Combined with a warranty terms confirmed during quotation, procurement teams can plan replacement cycles with confidence, knowing that each unit shipped meets original factory specifications.

ZYPLC maintains availability subject to RFQ confirmation of the CB2W100-125 and supports global shipping to industrial facilities in the oil and gas, power generation, petrochemical, and heavy manufacturing sectors. Our technical team can assist with system architecture verification, cable routing documentation, and compatibility confirmation for existing 3500 Series installations.

Product Specification Table

System Compatibility Notes

The CB2W100-125 is most effectively deployed as part of a fully coordinated Bently Nevada monitoring architecture. In a typical turbine or compressor protection system, the signal chain begins at the 3300 XL 8mm or 3300 XL 11mm proximity probe, which is mounted at the bearing housing to measure shaft radial vibration and axial position. The probe connects via a matched extension cable to the CB2W100-125, which routes the signal to the CB2W junction box mounted in the local instrument enclosure.

From the CB2W junction box, conditioned signals are routed into the 3500 Series rack, where the 3500/40M or 3500/42M Proximitor/Seismic Monitor module processes gap voltage, 1X and 2X vibration vectors, and overall vibration amplitude. The 3500/15 Power Supply module provides regulated -24 VDC to the Proximitor sensors through the rack backplane, while the 3500/20 Rack Interface Module manages rack-level communication and configuration. For plants requiring transient data capture during startup and shutdown, the 3500/22M Transient Data Interface records full waveform data for post-event analysis.

System-level communication is handled by the 3500/92 Communication Gateway, which translates monitor module data into Modbus RTU, Modbus TCP, or OPC-UA formats for integration with the plant DCS, historian, or SCADA system. This system integration capability allows vibration data from the CB2W signal chain to be correlated with process variables such as speed, load, temperature, and flow in the plant control system, enabling condition-based maintenance decisions rather than time-based inspection schedules.

In redundant protection architectures, dual CB2W100-125 cables may be routed to separate monitor modules within the same 3500 rack, providing voting logic (1oo2 or 2oo3) for trip decisions. This redundancy design is common in API 670-compliant installations for critical rotating machinery where a single-point failure in the monitoring chain must not result in an undetected machinery fault or a spurious trip.

Industrial Application Notes

The CB2W100-125 finds application across a broad range of process industries where rotating machinery protection is critical to operational continuity and personnel safety.

In oil and gas facilities — including offshore platforms, LNG terminals, and pipeline compressor stations — the CB2W100-125 is used in the vibration monitoring chains for gas turbines, centrifugal compressors, and booster pumps. These assets operate continuously under high mechanical stress, and the integrity of the proximity probe signal chain directly affects the reliability of the machinery protection system’s trip logic.

In power generation plants, steam turbines and gas turbines driving generators require continuous shaft vibration and axial position monitoring. The CB2W100-125 supports the signal chain for these critical assets, ensuring that the 3500 Series protection system receives accurate data for both normal operation monitoring and emergency trip functions.

In petrochemical and refinery environments, process compressors and reactor feed pumps are monitored using Bently Nevada 3500 systems with CB2W signal chains. The CB2W100-125 is specified in these installations for its compatibility with hazardous area junction box designs and its resistance to the chemical and thermal environments found in process plant instrument enclosures.

In water treatment and municipal infrastructure applications, large pump stations and blower systems increasingly use condition monitoring to extend asset life and reduce unplanned maintenance. The CB2W100-125 supports these lower-criticality but high-availability applications by providing a reliable, standardized signal path that maintenance technicians can replace quickly during scheduled outages.

In mining and metals processing facilities, grinding mills, conveyor drives, and large fan systems benefit from vibration monitoring architectures built around the Bently Nevada 3500 platform. The CB2W100-125 enables these installations to maintain signal chain integrity in environments characterized by high vibration, dust, and temperature variation.

Product Compatibility FAQ

Q1: Is the CB2W100-125 compatible with all 3500 Series monitor modules, and can it be used in a redundant monitoring configuration?
The CB2W100-125 is designed for use with the CB2W junction box, which interfaces with the 3500/40M and 3500/42M Proximitor/Seismic Monitor modules. In redundant configurations, two CB2W100-125 cables can be routed from a single proximity probe installation to separate monitor modules within the same 3500 rack, supporting voting logic architectures as required by API 670 for critical machinery protection. Compatibility with specific rack configurations should be verified against the 3500 Series system documentation for the installed firmware version.

Q2: What installation and commissioning considerations apply when replacing a CB2W100-125 in an operating plant?
Replacement of the CB2W100-125 in an operating plant requires coordination with the machinery protection system’s bypass and inhibit functions to prevent spurious trips during cable disconnection and reconnection. After installation, the signal chain should be verified by checking gap voltage at the monitor module to confirm correct probe positioning and cable continuity. The 3500 System configuration should be reviewed to ensure that alarm and trip setpoints remain valid after the cable replacement. All work should be performed in accordance with the plant’s management of change (MOC) procedure and the Bently Nevada 3500 Series installation manual.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the CB2W100-125?
The warranty terms confirmed during quotation covers manufacturing defects and electrical performance conformance to Bently Nevada specifications for the CB2W100-125. ZYPLC maintains availability subject to RFQ confirmation of the CB2W100-125 and related CB2W system components to support both immediate replacement needs and planned spare parts programs. Our technical team can assist with compatibility verification for existing installations and can provide documentation support for procurement and maintenance planning. For long-term supply agreements or bulk procurement inquiries, contact our sales team directly.
