Bently Nevada RS900106-05-30-05-02-00 3300 Proximity Transducer

Bently Nevada RS900106-05-30-05-02-00 3300 Proximity Transducer: Industrial Data Link for Smart Factory Connectivity

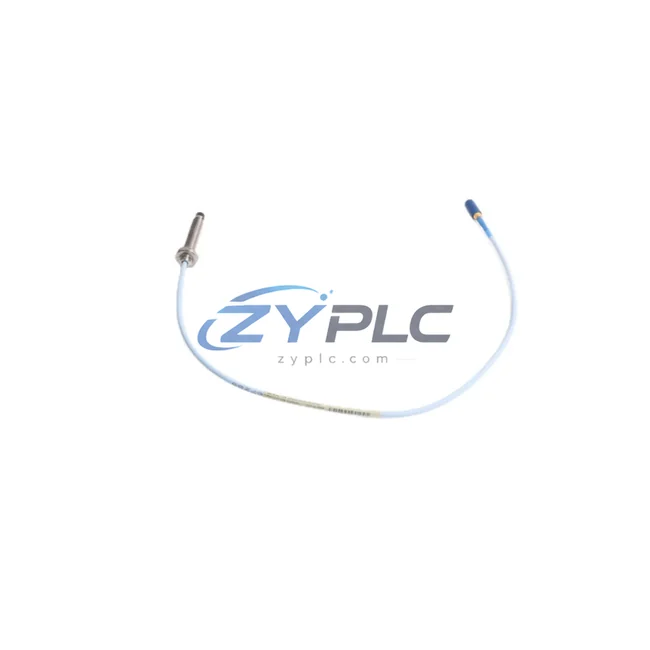

The Bently Nevada RS900106-05-30-05-02-00 is a high-precision proximity transducer from the renowned 3300 Series, engineered to deliver continuous, real-time displacement and vibration signal acquisition from rotating and reciprocating machinery. In modern industrial environments where data transparency and machine health visibility are non-negotiable, this transducer serves as the critical sensing node that feeds accurate analog signals into the broader automation and condition monitoring network.

At the field level, the RS900106-05-30-05-02-00 operates as an eddy-current proximity probe system, converting mechanical shaft displacement into a precise voltage signal. This signal is then routed to the Bently Nevada 3300 XL 8mm Proximitor Sensor — the signal conditioning module that amplifies and linearizes the raw probe output before transmission upstream. The Proximitor output is fully compatible with the Bently Nevada 3500 Series Machinery Protection System, where rack-mounted I/O modules receive, process, and alarm on vibration, eccentricity, and position data in real time.

Within a typical smart factory architecture, the 3500 rack communicates over Modbus TCP/IP or OPC-UA protocol to plant-level SCADA platforms such as GE iFIX, Wonderware AVEVA, or Honeywell Experion PKS. This enables operators to visualize shaft centerline plots, trend vibration spectra, and receive early-warning alarms directly on HMI screens — without any manual data collection. The RS900106-05-30-05-02-00 is therefore not merely a sensor; it is the origin point of a complete machine data pipeline.

In facilities running Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers, the 3500 system’s digital outputs can be wired directly into discrete input modules, enabling the PLC to trigger protective shutdowns or load-shedding routines based on vibration thresholds. For plants adopting edge computing architectures, the analog output of the Proximitor can also be connected to an industrial edge gateway — such as the Moxa MGate or Advantech ADAM series — which performs local protocol conversion and forwards structured JSON or MQTT data packets to cloud-based asset management platforms.

Remote I/O expansion is equally straightforward. In distributed control topologies, the transducer signal can be wired to a Phoenix Contact Axioline F remote I/O module or a Pepperl+Fuchs FieldConnex segment coupler, enabling signal transmission over PROFIBUS DP or FOUNDATION Fieldbus H1 to the main DCS cabinet — even across distances exceeding 200 meters. This makes the RS900106-05-30-05-02-00 suitable for large compressor trains, turbine halls, and pump stations where field devices are physically remote from the control room.

For predictive maintenance programs, the vibration data captured by this transducer integrates seamlessly with Bently Nevada System 1 software, which performs automated spectrum analysis, bearing fault detection, and remaining useful life estimation. When combined with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, the system can simultaneously track radial vibration, axial position, and casing acceleration — providing a 360-degree view of machine mechanical health without additional wiring infrastructure.

Every RS900106-05-30-05-02-00 unit supplied by ZYPLC undergoes pre-shipment functional testing, including probe gap verification, output linearity check, and sensitivity calibration against factory specifications. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation. ZYPLC maintains ready stock of 3300 Series proximity transducers and associated Proximitor modules, ensuring fast delivery to minimize unplanned downtime on your production lines.

Compatibility & Integration Notes

Connected Automation Data Flow

The RS900106-05-30-05-02-00 sits at the foundation of a layered industrial data architecture. At Layer 0 (field level), the proximity probe detects shaft radial displacement with micron-level resolution. The conditioned signal travels via coaxial cable to the Bently Nevada 3300 XL Proximitor, which outputs a calibrated DC voltage proportional to gap distance. This analog signal is then wired into the Bently Nevada 3500/22M Transient Data Interface module housed in the 3500 protection rack.

At Layer 1 (control level), the 3500 rack’s communication gateway module — such as the 3500/92 Communication Gateway — bridges the protection system to the plant Ethernet network via Modbus TCP or OPC-DA/UA. This allows the Siemens WinCC SCADA or Rockwell FactoryTalk View SE HMI to display live vibration trends, alarm states, and historical waveforms on operator workstations. Simultaneously, the PLC receives discrete alarm contacts from the 3500 rack to execute automated protective actions — such as initiating a controlled shutdown sequence via an Allen-Bradley PowerFlex 755 variable frequency drive connected to the motor driving the monitored machine.

At Layer 2 (supervisory level), an industrial edge computing gateway aggregates data from multiple 3500 racks across the plant, normalizes it into a unified data model, and publishes it to cloud-based asset performance management platforms. This end-to-end data flow — from the RS900106-05-30-05-02-00 probe tip to the cloud dashboard — enables plant engineers to monitor machine health remotely, set dynamic alarm thresholds, and schedule predictive maintenance interventions before failures occur.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often uses proprietary protocols or analog-only outputs that cannot be directly integrated into modern DCS or SCADA platforms. The Bently Nevada RS900106-05-30-05-02-00, when deployed within the 3300/3500 ecosystem, directly addresses this problem.

By leveraging the 3500 rack’s built-in Modbus TCP and OPC-UA communication capabilities, plant teams can eliminate the data silos that previously required manual log downloads or separate condition monitoring software. Vibration data becomes part of the same unified data fabric as process variables from flow transmitters, temperature sensors, and pressure transducers — all visible on a single SCADA screen. This production line transparency enables shift supervisors to correlate machine vibration anomalies with process upsets in real time, dramatically reducing mean time to diagnosis (MTTD).

For plants expanding their monitoring scope, the RS900106-05-30-05-02-00 supports system scalability. Additional probe channels can be added to the 3500 rack without rewiring the communication infrastructure, and the OPC-UA server automatically exposes new data nodes to connected SCADA clients. Remote diagnostics are equally simplified: maintenance engineers can access live vibration spectra and alarm histories from any networked workstation, reducing the need for on-site inspections and enabling 24/7 remote monitoring of critical rotating assets.

Industrial Connectivity FAQ

Q1: What communication protocols does the RS900106-05-30-05-02-00 system support for SCADA integration?
A: When integrated with the Bently Nevada 3500 Series rack and the 3500/92 Communication Gateway, the system supports Modbus RTU, Modbus TCP/IP, and OPC-DA/OPC-UA protocols. This enables direct integration with all major SCADA and DCS platforms including Wonderware AVEVA, GE iFIX, Honeywell Experion, and Emerson DeltaV without requiring additional protocol converters.

Q2: Is the RS900106-05-30-05-02-00 compatible with existing 3300 Series Proximitor modules already installed in my plant?
A: Yes. The RS900106-05-30-05-02-00 is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor family. It follows the standard 3300 Series probe-extension cable-Proximitor system architecture, so it can replace or supplement existing 3300 Series probes without modifying the Proximitor or rack wiring.

Q3: How does ZYPLC ensure the unit is functional before shipment?
A: Every RS900106-05-30-05-02-00 unit undergoes a pre-shipment test protocol that includes probe gap sensitivity verification, output linearity measurement across the full operating range, and coaxial connector integrity check. A test report is available upon request. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: Can the system be expanded to monitor additional measurement points without replacing the communication infrastructure?
A: Yes. The 3500 rack architecture is modular — additional I/O monitor modules can be inserted into available rack slots to add vibration, position, or temperature measurement channels. The 3500/92 Communication Gateway automatically exposes new channels to connected OPC-UA or Modbus clients, making system expansion seamless and non-disruptive to existing network configurations.
