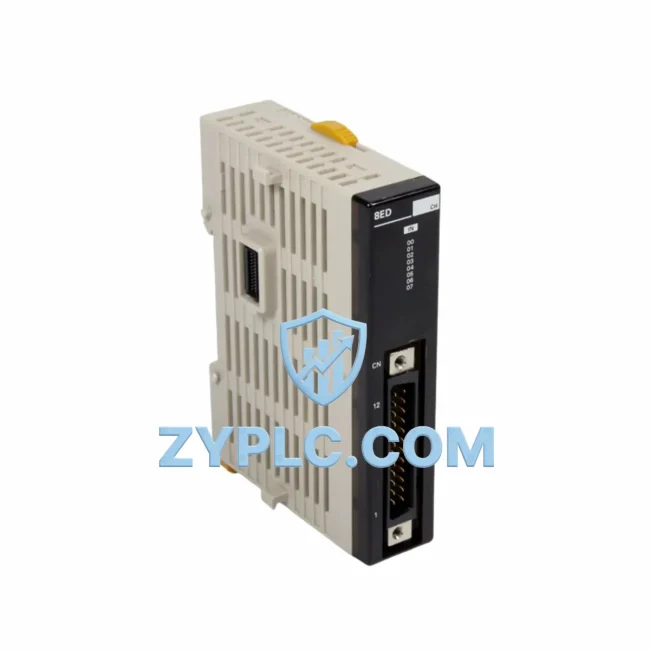

OMRON CPM2C-8EDM PLC for CPM2C Automation
The OMRON CPM2C-8EDM is a compact expansion I/O module designed for the CPM2C series programmable logic controller platform, engineered to extend digital output capacity while maintaining the low-power consumption profile that defines OMRON’s CPM2C automation architecture. In high-cycle manufacturing environments — from precision assembly lines to packaging machinery and conveyor control systems — the CPM2C-8EDM delivers reliable transistor output switching with minimal standby draw, enabling plant engineers to reduce panel heat load, lower cooling overhead, and improve overall equipment effectiveness (OEE) without sacrificing control responsiveness.
As industrial facilities face increasing pressure to reduce energy expenditure per production unit, the selection of each I/O expansion module becomes a measurable factor in the energy budget. The CPM2C-8EDM’s 8-point digital output configuration allows precise load segmentation — each output channel can be mapped to a specific actuator, solenoid valve, or motor starter, ensuring that only the required loads are energized during each production step. This granular control eliminates the parasitic energy draw common in oversized relay-based output banks and supports tighter integration with OMRON’s CPM2C-S110-CPU unit for synchronized, cycle-accurate switching.
Product Specification Table
| Parameter |
Specification |
| SKU / Model |
CPM2C-8EDM |
| Brand / Series |
OMRON / CPM2C |
| Module Type |
Digital Output Expansion Unit (Transistor, NPN) |
| Output Points |
8 Points |
| Output Current |
0.3 A per point |
| Power Consumption |
≤ 0.9 W (internal circuit) |
| Operating Voltage |
24 VDC |
| Compatible CPU |
OMRON CPM2C Series (CPM2C-S110, CPM2C-20) |
| Communication Interface |
CPM2C Expansion Bus |
| Operating Temperature |
0 °C to 55 °C |
| Application Environment |
Panel-mount, industrial automation, conveyor, packaging |
| Energy Efficiency Value |
Transistor output eliminates relay coil draw; reduces heat dissipation |
| Origin |
Japan |
| Warranty |
12-Month Warranty | Tested before shipment |
System Compatibility and Application
The CPM2C-8EDM is most effective when deployed as part of a coherent, industrial control architecture. In a typical CPM2C-based control panel, the OMRON CPM2C-S110-CPU serves as the central processing unit, executing ladder logic at high scan speeds while the CPM2C-8EDM expands the output capacity for downstream actuators. Power to the CPU and expansion bus is supplied through a dedicated 24 VDC rail, often regulated by an OMRON S8VS-series switching power supply, which maintains stable voltage under variable load conditions — a critical factor in preventing unnecessary re-energization cycles that waste energy.
For applications requiring analog feedback — such as variable-speed conveyor drives or temperature-controlled curing ovens — the CPM2C-8EDM works alongside the CPM2C-MAD11 analog I/O unit, which captures real-time process variables and feeds them back to the CPU for closed-loop control. This closed-loop configuration, when paired with an OMRON 3G3MX2-series inverter drive, allows the system to modulate motor speed in direct proportion to production demand, cutting motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters.
On the monitoring side, the OMRON KM50-E1 energy monitor can be integrated into the same panel to provide per-circuit power measurement, giving maintenance engineers visibility into which loads are consuming the most energy during each production phase. Data from the KM50-E1 can be transmitted over RS-485 using the OMRON CJ1W-SCU21-V1 serial communication unit, aggregating energy data into a supervisory SCADA or the OMRON CX-Supervisor HMI platform for trend analysis and anomaly detection.
For larger installations where the CPM2C platform is networked with higher-tier controllers, the OMRON CJ2M-CPU31 can act as a master node over OMRON’s CompoNet or DeviceNet fieldbus, with the CPM2C-8EDM-equipped panels operating as remote I/O slaves. This hierarchical architecture ensures that energy-intensive processes — such as multi-axis servo positioning using OMRON G5-series servo drives and R88D-KN servo amplifiers — are coordinated centrally, preventing simultaneous peak-load events that spike demand charges on the facility’s utility bill.
The NS8-TV00B-V2 programmable terminal provides operators with a real-time dashboard of machine states, alarm conditions, and operating load trends, enabling rapid response to inefficiency events without requiring engineering intervention. Together, these components form a tightly integrated, energy-conscious automation ecosystem anchored by the CPM2C-8EDM’s reliable, low-power digital output capability.
Maintenance and Replacement Notes
In practice, the CPM2C-8EDM contributes to operational stability through several mechanisms that compound across a production shift. First, its transistor output architecture eliminates the mechanical wear and coil power draw associated with relay output modules — in a 24/7 production environment, this difference accumulates to measurable reductions in panel power consumption over a calendar year. Second, because each output point can be individually addressed by the CPM2C CPU’s ladder program, engineers can implement time-based load shedding: non-critical outputs such as status indicator lights or auxiliary fans are de-energized during low-production windows, reducing idle-state power draw.
Third, the CPM2C-8EDM’s fast switching response — with output ON response times under 1 ms — supports high-frequency pulse output applications such as stepper motor indexing and solenoid valve dithering, where precise timing reduces mechanical overshoot and the associated unplanned downtimed in braking and re-acceleration. In packaging lines where the CPM2C controls a servo-driven film cutter, for example, accurate output timing directly reduces film waste and re-run cycles, lowering both material and energy costs per unit produced.
From a maintenance perspective, the solid-state transistor outputs of the CPM2C-8EDM have a significantly longer service life than electromechanical relay contacts, reducing unplanned downtime caused by contact wear. Predictive maintenance programs that monitor output switching frequency — logged via the OMRON CX-Programmer software — can schedule preventive replacement before failure occurs, keeping production lines running at full efficiency. Every unit shipped from ZYPLC undergoes functional output testing prior to dispatch, and is covered by a 12-month warranty to protect your production investment.
Product Sourcing FAQ
Q1: How much energy can the CPM2C-8EDM save compared to a relay output module?
Transistor output modules like the CPM2C-8EDM consume no coil power and generate less heat than relay-based equivalents. In a panel with multiple expansion modules running continuously, switching from relay to transistor outputs can reduce panel thermal load by Actual operating results depend on the installed system, load profile, and commissioning parameters.
Q2: Is the CPM2C-8EDM compatible with my existing CPM2C CPU unit?
Yes. The CPM2C-8EDM connects directly to the CPM2C expansion bus and is compatible with all CPM2C-series CPU units, including the CPM2C-S110-CPU and CPM2C-20CDT. No additional interface modules or adapters are required. Verify your CPU’s maximum expansion unit count (typically up to 3 expansion units) before adding modules.
Q3: What is the recommended replacement or upgrade path if my CPM2C system is being modernized?
For facilities migrating from CPM2C to a higher-performance platform, the OMRON CP1E or CJ2M series offers backward-compatible ladder logic migration via CX-Programmer, with expanded I/O capacity and built-in Ethernet communications. ZYPLC can supply both legacy CPM2C-8EDM modules for ongoing maintenance and newer platform components for phased modernization projects.
Q4: What testing and warranty coverage does ZYPLC provide for the CPM2C-8EDM?
Every CPM2C-8EDM unit supplied by ZYPLC is functionally tested prior to shipment, verifying all 8 output channels under load conditions. Units are covered by a 12-month warranty from the date of delivery. In the event of a confirmed defect within the warranty period, ZYPLC will arrange replacement or repair. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for pre-sales compatibility checks and post-sales support.
