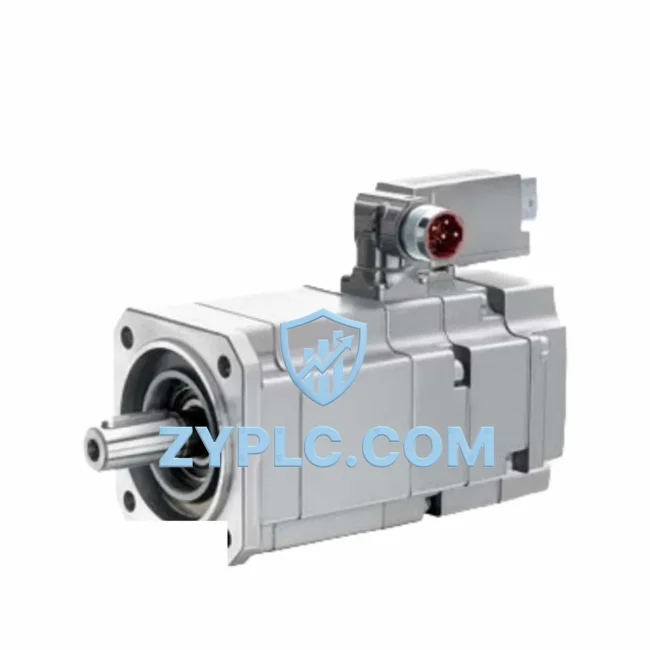

The Siemens 1FT6086-8AF71-1EG2 is a high-performance AC servo motor from the SIMOTICS S-1FT6 series, engineered to serve as a precision motion and data node within modern industrial automation architectures. Far beyond a conventional drive component, this unit integrates seamlessly into the digital data backbone of smart factories — connecting field-level motion control with upper-level SCADA systems, HMI panels, and cloud-based monitoring platforms through Siemens’ DRIVE-CLiQ communication protocol. In an era where every machine axis must be visible, traceable, and remotely diagnosable, the 1FT6086-8AF71-1EG2 delivers the connectivity and intelligence that Industry 4.0 demands.

Network Communication Table

Connected Automation Data Flow

In a fully networked production environment, the 1FT6086-8AF71-1EG2 operates as a critical motion intelligence node. The data flow begins at the motor encoder level, where the DRIVE-CLiQ interface transmits real-time position, speed, and temperature data directly to the SINAMICS S120 drive unit — eliminating the need for separate encoder evaluation boards and reducing wiring complexity across multi-axis systems.

From the SINAMICS S120, axis data is aggregated and forwarded via PROFINET IO to the Siemens S7-1500 PLC, where motion sequences are coordinated with broader production logic. The S7-1500’s integrated PROFINET controller manages real-time communication cycles as fast as 250 µs, ensuring that servo feedback loops remain closed with minimal latency — a prerequisite for high-precision CNC, robotics, and packaging applications.

At the HMI layer, operators interact with live axis data through Siemens SIMATIC HMI Comfort Panels connected via PROFINET or Ethernet/IP. Visualization of torque curves, speed profiles, and fault histories is rendered in real time, enabling operators to detect anomalies before they escalate into unplanned downtime. The SIMATIC WinCC SCADA platform extends this visibility across the entire plant floor, aggregating data from multiple 1FT6 servo axes, remote I/O modules such as the ET 200SP, and distributed field devices into a unified operational dashboard.

For multi-axis coordinated motion, the 1FT6086-8AF71-1EG2 pairs with SINAMICS S120 CU320-2 Control Units and 6SL3120 Motor Modules, forming a synchronized drive train capable of electronic gearing, cam profiling, and torque-sharing across axes. The DRIVE-CLiQ topology auto-identifies each connected component — including the 1FT6086-8AF71-1EG2 itself — populating the TIA Portal drive configuration automatically and reducing commissioning time significantly.

At the network infrastructure level, Siemens SCALANCE X industrial Ethernet switches provide the managed switching backbone that connects servo drives, PLCs, HMI panels, and edge gateways within the same PROFINET segment. For sites requiring protocol bridging between legacy PROFIBUS installations and modern PROFINET networks, Siemens IE/PB Link PN IO gateways translate data transparently, allowing the 1FT6086-8AF71-1EG2 to participate in both legacy and next-generation network architectures without reconfiguration.

Remote diagnostics are enabled through Siemens SINEMA Remote Connect or TIA Portal’s integrated remote access tools, allowing engineers to monitor motor operating hours, bearing temperature trends, and encoder health from off-site locations. This capability is particularly valuable for geographically distributed manufacturing sites where on-site intervention is costly and time-sensitive.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices operate in silos, unable to share operational data with control systems, maintenance platforms, or enterprise ERP layers. The Siemens 1FT6086-8AF71-1EG2 directly addresses this challenge through its native DRIVE-CLiQ communication architecture.

In facilities where multiple servo axes operate independently without a unified data backbone, production transparency is severely limited. Maintenance teams rely on manual inspection cycles rather than condition-based monitoring, leading to reactive rather than predictive maintenance strategies. By integrating the 1FT6086-8AF71-1EG2 into a SINAMICS S120 drive system connected to an S7-1500 PLC via PROFINET, every axis becomes a live data source — reporting position accuracy, load torque, thermal status, and fault codes in real time to both local HMI panels and remote SCADA platforms.

Protocol fragmentation is another common barrier. Legacy systems may rely on PROFIBUS DP or analog signal wiring, while modern expansions demand PROFINET or Industrial Ethernet. The 1FT6086-8AF71-1EG2’s compatibility with Siemens’ unified TIA Portal engineering framework means that new servo axes can be integrated alongside existing infrastructure without requiring parallel engineering environments. Protocol conversion is handled transparently at the drive and gateway level, preserving existing investments while enabling system-wide digital transformation.

For production line transparency, the 1FT6086-8AF71-1EG2 enables OEE (Overall Equipment Effectiveness) tracking at the axis level. By correlating servo performance data with production output metrics in SIMATIC WinCC or third-party MES platforms, plant managers gain granular insight into cycle time deviations, micro-stoppages, and energy consumption patterns — data that was previously invisible in non-networked drive environments.

System scalability is built into the SIMOTICS S-1FT6 architecture. Additional servo axes can be added to an existing SINAMICS S120 drive line-up without redesigning the communication topology. DRIVE-CLiQ auto-discovery handles new component registration, and TIA Portal’s modular programming structure accommodates axis expansion with minimal engineering overhead.

Industrial Connectivity FAQ

Q1: What communication protocol does the Siemens 1FT6086-8AF71-1EG2 use, and is it compatible with PROFINET networks?
The 1FT6086-8AF71-1EG2 uses Siemens DRIVE-CLiQ for direct motor-to-drive communication. When paired with a SINAMICS S120 drive unit, the system communicates upstream via PROFINET IO, making it fully compatible with S7-1500 PLCs, SIMATIC HMI panels, and SCADA platforms operating on standard Industrial Ethernet infrastructure.

Q2: How does the 1FT6086-8AF71-1EG2 support remote diagnostics and predictive maintenance?
The DRIVE-CLiQ interface continuously transmits motor identification data, encoder health metrics, winding temperature, and operating hours to the connected SINAMICS drive. This data is accessible remotely via TIA Portal’s online diagnostics or SINEMA Remote Connect, enabling engineers to perform condition monitoring and fault analysis without physical access to the machine.

Q3: Can the 1FT6086-8AF71-1EG2 be integrated into an existing PROFIBUS-based system?
Yes. Using Siemens IE/PB Link PN IO gateways or SINAMICS drive units with PROFIBUS DP interfaces, the 1FT6086-8AF71-1EG2 can be incorporated into legacy PROFIBUS networks. The TIA Portal engineering environment supports mixed-protocol topologies, allowing phased migration from PROFIBUS to PROFINET without disrupting existing automation infrastructure.

Q4: What warranty and quality assurance does the 1FT6086-8AF71-1EG2 come with?
Every 1FT6086-8AF71-1EG2 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify encoder communication, winding integrity, and DRIVE-CLiQ interface operation. In-stock units are available for immediate dispatch with full traceability documentation.
