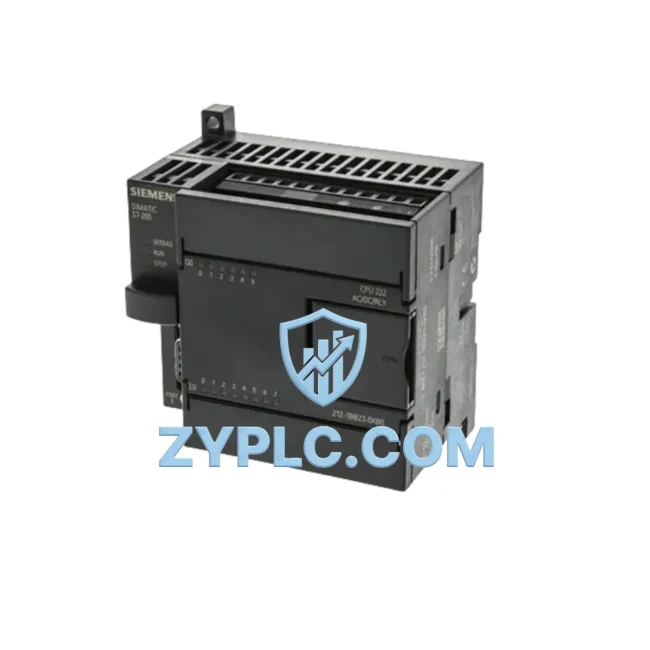

Siemens 6ES7212-1BB23-0XB0 Industrial Network Interface for S7-200 Systems

Siemens 6ES7212-1BB23-0XB0: Industrial Data Link Gateway for S7-200 Smart Factory Networks

The Siemens 6ES7212-1BB23-0XB0 is a compact yet powerful CPU 222 module from the SIMATIC S7-200 series, engineered to serve as the central node in industrial network communication architectures. Designed for demanding automation environments, this PLC CPU integrates a native PPI (Point-to-Point Interface) communication port that enables seamless data exchange between field devices, remote I/O stations, HMI panels, SCADA systems, and upper-level MES or ERP platforms. Whether deployed in discrete manufacturing, process control, or smart factory infrastructure, the 6ES7212-1BB23-0XB0 delivers deterministic, real-time data flow across the entire automation chain.

In modern industrial sites, the ability to bridge legacy field protocols with contemporary network architectures is critical. The 6ES7212-1BB23-0XB0 addresses this need directly: its onboard PPI port supports multi-master network topologies, allowing it to communicate simultaneously with operator panels such as the Siemens TP177B HMI and programming devices running STEP 7 Micro/WIN, while also exchanging process data with peer S7-200 CPUs across the same PPI segment. This multi-node capability eliminates data silos that commonly arise when field devices operate on incompatible protocols, ensuring that signal acquisition from sensors and actuators flows uninterrupted to supervisory layers.

Network Communication Table

Connected Automation Data Flow

The 6ES7212-1BB23-0XB0 sits at the heart of a layered industrial communication architecture. At the field level, digital signals from proximity sensors, photoelectric detectors, and limit switches are wired directly into the CPU’s 8 onboard digital inputs. The integrated PPI port then transmits processed data upward through the network stack. A Siemens CP 243-1 Ethernet module can be mounted alongside the CPU to extend connectivity from the PPI segment onto an Industrial Ethernet backbone, enabling the S7-200 to participate in plant-wide TCP/IP networks without replacing the existing controller infrastructure.

For remote I/O expansion, the 6ES7212-1BB23-0XB0 supports connection to Siemens EM 221 and EM 222 digital expansion modules, extending the I/O count to match the demands of larger machine cells. These expansion modules communicate over the local I/O bus, with all data consolidated in the CPU’s process image and made available to the PPI network in real time. When a Siemens TD 200 text display or TP177 HMI panel is connected via PPI, operators gain live visibility into process variables, alarm states, and production counters directly at the machine level — without requiring a dedicated SCADA workstation.

At the supervisory layer, a Siemens WinCC flexible SCADA system communicates with the 6ES7212-1BB23-0XB0 through a PC Adapter USB or via the CP 243-1 Ethernet gateway, polling process data at configurable scan rates. This architecture supports remote diagnostics: maintenance engineers can monitor PLC status, read diagnostic buffers, and modify data blocks from a central control room or even from off-site locations through a VPN-secured industrial router. The result is a fully transparent data chain — from sensor signal acquisition through protocol conversion, network transmission, real-time SCADA monitoring, alarm feedback, and remote fault diagnosis — all anchored by the 6ES7212-1BB23-0XB0 as the network intelligence node.

In drive integration scenarios, the CPU’s PPI port can be paired with a Siemens MICROMASTER 440 variable frequency drive equipped with a USS protocol communication board, enabling the PLC to issue speed references, read actual frequency feedback, and monitor drive fault codes — all within the same PPI communication cycle. This tight integration between the S7-200 CPU and the drive layer eliminates the need for separate analog signal wiring, reducing installation complexity and improving noise immunity in high-EMI factory environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple, incompatible communication protocols across different generations of equipment. A typical production line may include legacy PPI-based S7-200 controllers, newer PROFIBUS DP networks serving distributed I/O racks, and Ethernet-connected SCADA servers — all operating in isolation. The 6ES7212-1BB23-0XB0, when combined with appropriate gateway modules such as the Siemens CP 243-1 or third-party protocol converters, bridges these protocol boundaries and enables unified data visibility across the entire plant floor.

Data silos are eliminated by mapping PPI process variables into OPC DA or OPC UA data spaces accessible to plant historians and MES platforms. This allows production KPIs — cycle times, reject counts, energy consumption per unit — to be aggregated from multiple S7-200 nodes and presented in a single dashboard, giving plant managers the production line transparency needed for continuous improvement initiatives. Remote monitoring becomes equally straightforward: with the Ethernet gateway in place, the 6ES7212-1BB23-0XB0 can be polled by cloud-based SCADA platforms, enabling condition monitoring and predictive maintenance analytics without on-site intervention.

System expansion is handled gracefully through the S7-200’s modular architecture. As production capacity grows, additional EM expansion modules can be added to the 6ES7212-1BB23-0XB0 without modifying the existing PPI network configuration. New machine cells can be integrated as additional PPI nodes, and the network master — whether a programming device or an HMI — automatically recognizes the new nodes during the next network scan. This scalability protects the initial investment in the S7-200 platform while accommodating evolving factory automation requirements.

Every 6ES7212-1BB23-0XB0 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication port verification, I/O channel validation, and firmware version confirmation. Units are shipped with full documentation and are covered by a 12-month warranty, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed of the PPI port on the 6ES7212-1BB23-0XB0?
The onboard RS-485 PPI port supports baud rates up to 187.5 kbps. In standard PPI multi-master configurations, the network operates at 9.6 kbps or 19.2 kbps to ensure compatibility with all connected HMI panels and programming devices. Higher baud rates are available for point-to-point connections where all nodes support the faster rate.

Q2: Can the 6ES7212-1BB23-0XB0 communicate with PROFIBUS DP or Industrial Ethernet networks directly?
The CPU itself does not natively support PROFIBUS DP or Ethernet. However, by adding a Siemens CP 243-1 Ethernet module or a CP 243-2 AS-Interface master module to the local I/O bus, the S7-200 system can participate in Ethernet TCP/IP or AS-i networks. For PROFIBUS DP integration, a dedicated protocol gateway or a higher-tier S7-300/S7-400 CPU acting as a DP master is recommended.

Q3: How does the 6ES7212-1BB23-0XB0 support SCADA and HMI integration in a multi-node PPI network?
In a PPI multi-master network, the 6ES7212-1BB23-0XB0 acts as a slave node that responds to read/write requests from master devices such as HMI panels (e.g., TP177B) or SCADA gateways. The SCADA system polls the CPU’s data blocks at configurable intervals, retrieving real-time process values, alarm bits, and production counters. Network stability is maintained by limiting the number of master devices and optimizing the polling cycle to match the network’s baud rate and node count.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the 6ES7212-1BB23-0XB0?
Each unit undergoes a full functional test prior to shipment, including PPI communication port verification, digital I/O channel testing, power supply integrity check, and firmware version confirmation. ZYPLC provides a 12-month warranty covering manufacturing defects and communication failures. In-stock units are available for same-week dispatch, with global shipping supported to minimize lead times for urgent project requirements.
