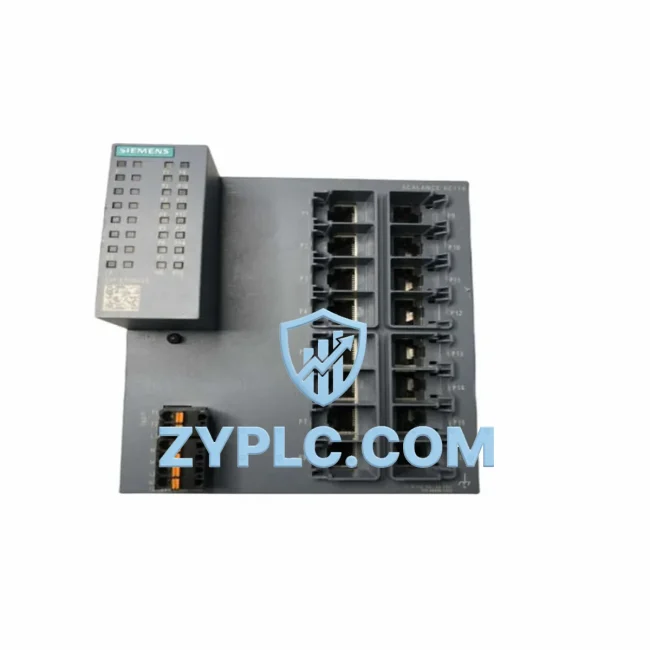

Siemens 6GK5116-0BA00-2AC2 Industrial Network Interface for SCALANCE X Systems

Siemens 6GK5116-0BA00-2AC2: Industrial Data Link for Smart Factory Connectivity

The Siemens 6GK5116-0BA00-2AC2 is a 16-port unmanaged Industrial Ethernet switch from the SCALANCE X116 series, engineered to serve as the backbone of reliable, high-speed data communication in demanding industrial environments. Designed for seamless integration into PROFINET and standard Ethernet architectures, this switch enables deterministic, low-latency data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, sensors, and supervisory computing platforms. Whether deployed on a production floor, in a control cabinet, or across a distributed plant network, the 6GK5116-0BA00-2AC2 delivers the network stability and throughput that modern smart factories demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6GK5116-0BA00-2AC2 sits at the heart of the field-level network, aggregating data from multiple endpoints and routing it upward through the automation hierarchy. Signal acquisition begins at the sensor and actuator layer — devices such as Siemens SIRIUS 3RK3 motor management modules, IO-Link masters, and distributed SIMATIC ET 200SP remote I/O stations feed process data into the switch via PROFINET IO frames. These real-time signals are then forwarded to Siemens SIMATIC S7-1500 or S7-300 PLC controllers, where ladder logic and function block programs execute control decisions within deterministic cycle times.

From the PLC layer, the 6GK5116-0BA00-2AC2 extends connectivity upward to SIMATIC HMI Comfort Panels and WinCC SCADA workstations, enabling operators to visualize live process data, configure alarm thresholds, and acknowledge fault conditions without communication bottlenecks. In drive-intensive applications — such as conveyor systems or pump stations — the switch bridges SINAMICS G120 variable frequency drives and SINAMICS S120 servo drive systems into the same Ethernet segment, allowing the SCADA layer to monitor speed references, torque feedback, and fault registers in real time.

For plants requiring edge intelligence, the 6GK5116-0BA00-2AC2 can connect to Siemens SINEMA Remote Connect gateways or SCALANCE M876 industrial LTE routers, extending remote diagnostic capability to maintenance engineers off-site. When paired with a SCALANCE X208 managed switch upstream, network administrators gain VLAN segmentation and SNMP monitoring across the entire plant floor, while the X116 continues to serve as a cost-effective, plug-and-play access layer switch for field devices. Power for the switch and connected field instruments is often sourced from Siemens SITOP PSU100S 24 V DC power supplies, ensuring a clean, stable supply rail that meets the strict EMC requirements of industrial automation environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate on incompatible protocols or physically separate network segments, preventing unified visibility and coordinated control. The Siemens 6GK5116-0BA00-2AC2 directly addresses this problem by providing a standards-compliant, 16-port Ethernet switching fabric that unifies diverse device types under a single PROFINET-compatible network.

In legacy plant environments, older serial-based devices communicating over PROFIBUS DP or Modbus RTU are often stranded behind protocol boundaries. By deploying the 6GK5116-0BA00-2AC2 alongside a Siemens IE/PB Link PN IO gateway, engineers can bridge PROFIBUS segments into the PROFINET domain, eliminating data silos without replacing existing field instrumentation. This approach dramatically reduces retrofit costs while extending the operational life of proven field devices.

Remote monitoring is another area where the X116 delivers measurable value. In geographically distributed installations — water treatment plants, substations, or multi-building manufacturing campuses — the switch enables consistent Ethernet connectivity at each remote node. Combined with a SCALANCE M876 or SCALANCE S615 security module, remote SCADA polling and alarm forwarding become reliable, encrypted, and auditable, satisfying both operational and cybersecurity requirements.

Production line transparency is achieved through the switch’s ability to carry real-time OPC UA or PROFINET IO data from machine controllers to MES and ERP systems. Quality control data, cycle counts, downtime events, and energy consumption metrics flow continuously from the shop floor to enterprise dashboards, enabling data-driven decisions without manual data entry. System expansion is equally straightforward: the 16-port form factor accommodates growing device counts, and the DIN rail mounting allows additional switches to be added to the control cabinet as production lines scale.

Every unit of the 6GK5116-0BA00-2AC2 supplied by ZYPLC undergoes pre-shipment functional testing, verifying port connectivity, power-up behavior, and LED status indication before dispatch. Stock is maintained for immediate availability, and all units are covered by a 12-month warranty, giving procurement and maintenance teams confidence in both delivery timelines and long-term reliability.

Industrial Connectivity FAQ

Q1: Does the 6GK5116-0BA00-2AC2 support PROFINET IO communication without additional configuration?
Yes. As an unmanaged switch, the SCALANCE X116 is transparent to PROFINET IO traffic and requires no configuration. It passes PROFINET frames — including cyclic IO data, alarms, and diagnostic messages — between connected devices without introducing additional latency or requiring IP address assignment. This makes it immediately deployable in existing PROFINET networks alongside SIMATIC S7 controllers and ET 200 remote I/O stations.

Q2: What is the typical network latency introduced by the 6GK5116-0BA00-2AC2 in a PROFINET environment?
The SCALANCE X116 uses store-and-forward switching with a forwarding latency typically below 10 microseconds per hop at 100 Mbps, well within the timing requirements of standard PROFINET RT (Real-Time) Class 1 applications. For applications requiring isochronous real-time (IRT) communication, a managed switch such as the SCALANCE X208 or X308-2M with PROFINET IRT support should be used instead.

Q3: Can the 6GK5116-0BA00-2AC2 be used in the same network segment as EtherNet/IP or Modbus TCP devices?
Yes. Because the X116 operates at the Ethernet frame level without protocol discrimination, it transparently forwards EtherNet/IP, Modbus TCP, OPC UA, and standard TCP/IP traffic alongside PROFINET frames. This makes it suitable for mixed-protocol environments where Siemens PLCs coexist with third-party controllers, SCADA servers, or IoT edge gateways on the same physical network.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6GK5116-0BA00-2AC2?
All units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including port-by-port connectivity verification, power supply validation, and visual inspection. In-stock units are available for same-week dispatch, and RFQ responses are provided within 24 hours. For volume orders or urgent requirements, contact our team directly at [email protected] or +86 19859288691.
